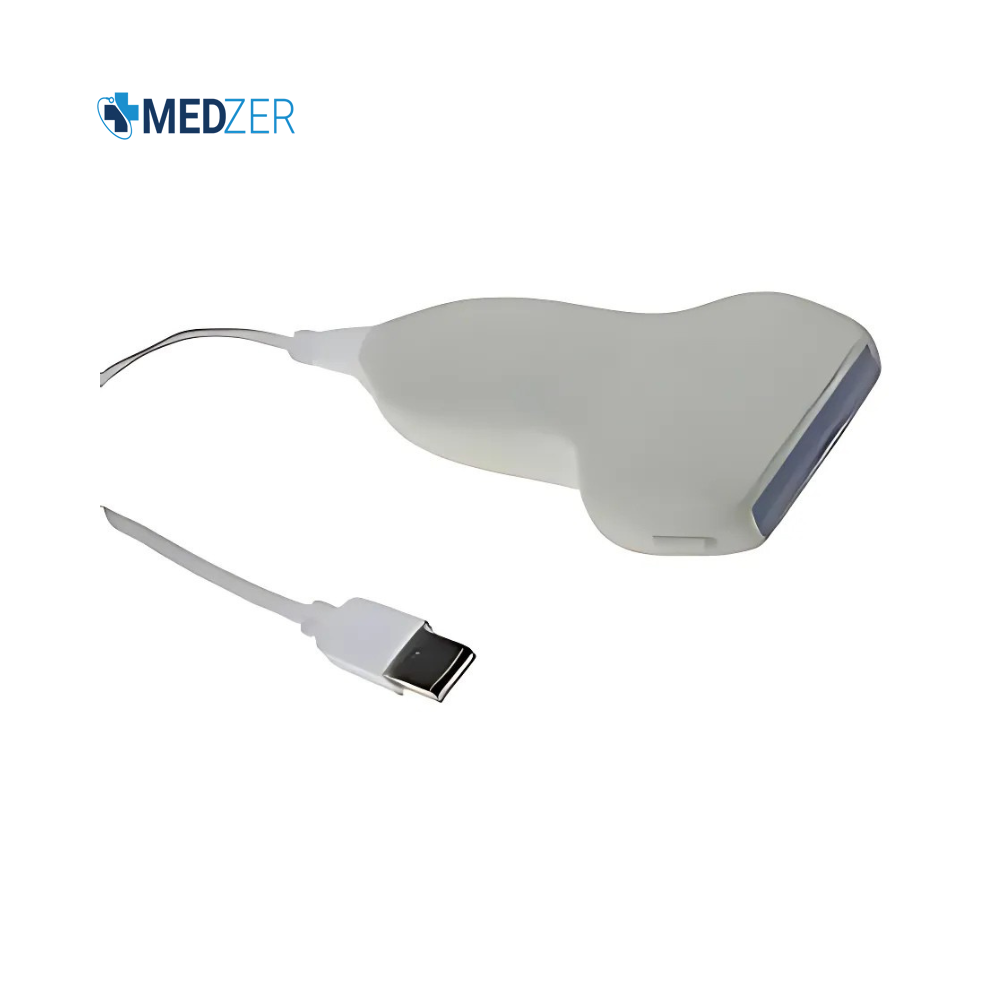

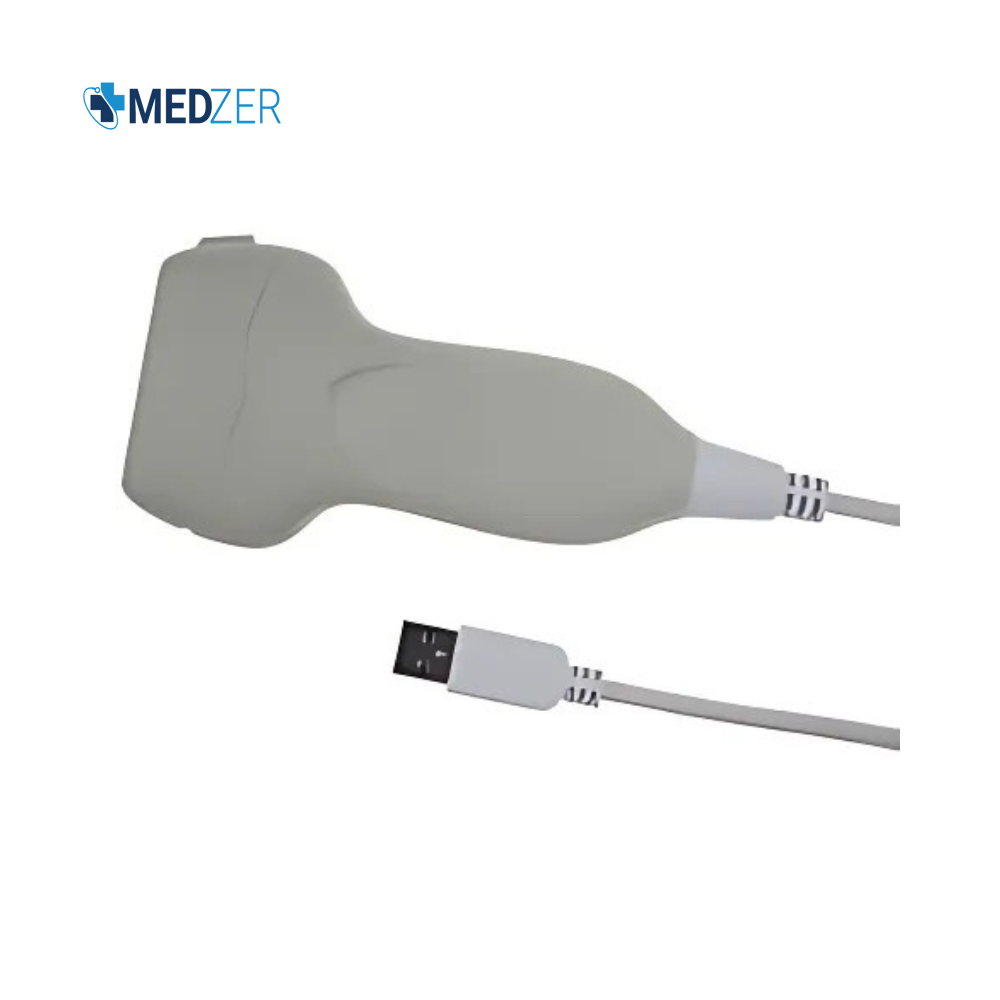

USB linear array probe
Full digital imaging technology
Electronic focus selection
Broadband Multi-frequency probe
THI, Image processing and adjustment
Specifications
Probe | Linear probe Radius : 45mm Transducer : 80 element |
---|---|
Imaging mode | B, B/B, B/M, 4B |
Frequency selection | 5.0 MHz 6.0 MHz 7.5 MHz 8.0 MHz 10.0 MHz |
Depth | 30 mm ~ 120 mm |
Area of Examination | Emergency, Thyroid, Maxillo-facial, Prostate, Scrotum, Vascular, Musculoskeletal |
Scan Type | Electronic Linear array |
Image Magnification | ×1.0, ×1.2, ×1.5, ×2.0 |
Image Processing | Parameters : FrmAvg, Bright, Contast, Gamma, Sharp, Edge, Line, FilterHoi, FilterVerl, Smooth, SSR Adjustment : Left/right Mirror, Up/down Vertically Flip |
Measurment | 2B, 4B mode: distance, area/girth, volume, angle, Cross profile, Left coxae Angle,right coxae angle B mode: distance, area/girth, volume, angle, Cross profile, Left coxae Angle,right coxae angle M mode: distance, time, HR, Slope Thyroid : Left side, right side, Isthmus, parathyroid gland, cyst, solid Maxillo-facial : Parotid, lymphaden nodule, lymphoma, abscess, cystic hygroma Prostate : Center zone, peripheral zone, matrix zone, cyst, solid Scrotum : L, R, L/R, Varicosity, Vaginal sac Muscle : distance, area/girth, volume, angle, cross profile, left coxae angle, right coxae angle |
Image memory | HDD Save Image format : (bmp, png, tif, dcm, jpg) Cineloop : 512-frame memory,manual/automatic cine loop |
Operating time | 8 hours |
OS | Windows 7 and above |
Connectivity | USB |
Dimensions | 150 × 23 × 70 mm Cable length : 190 cm |
Features
USB linear array probe
Full digital imaging technology
Electronic focus selection
Broadband Multi-frequency probe
THI, Image processing and adjustment
138 kinds of body mark with 8 kinds of pseudo colors
Total gain and step-wise gain adjustment
Image management function
Installer OS : Windows
Patient records management
Image report and print function
Ultrasound imaging software
