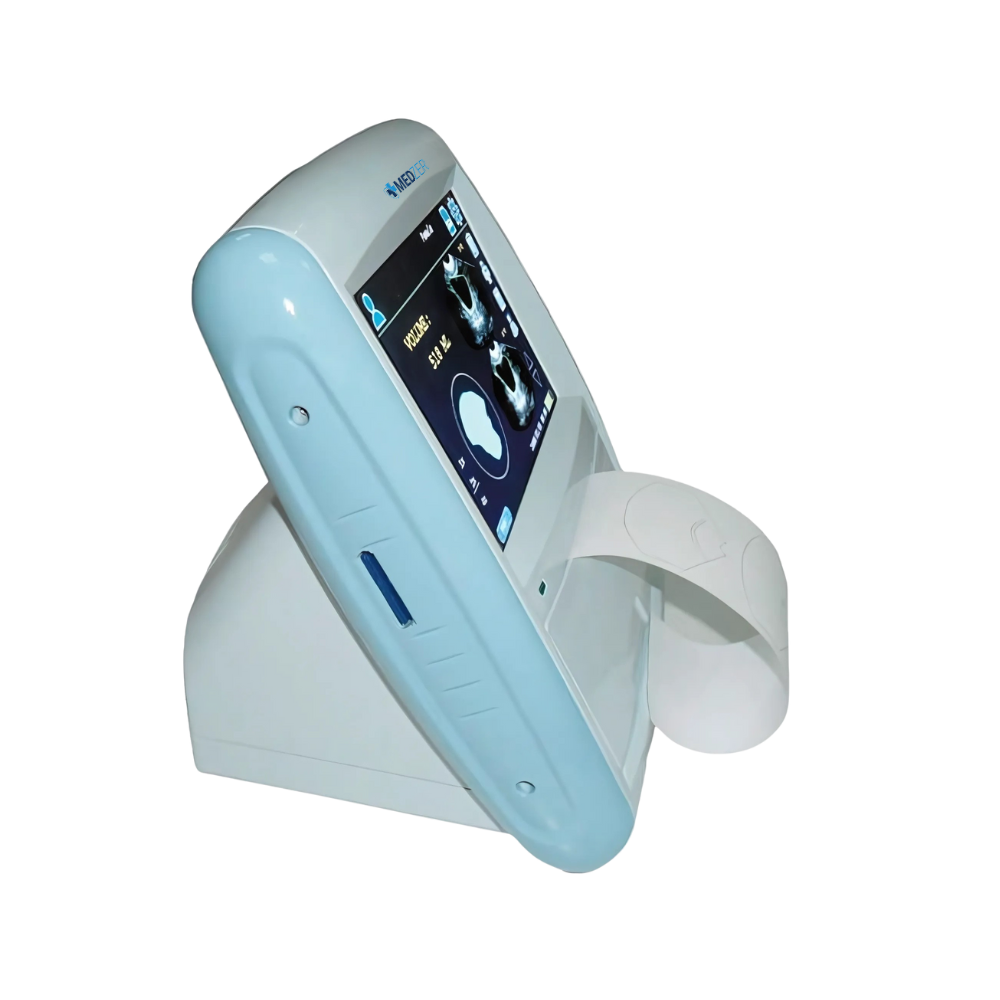

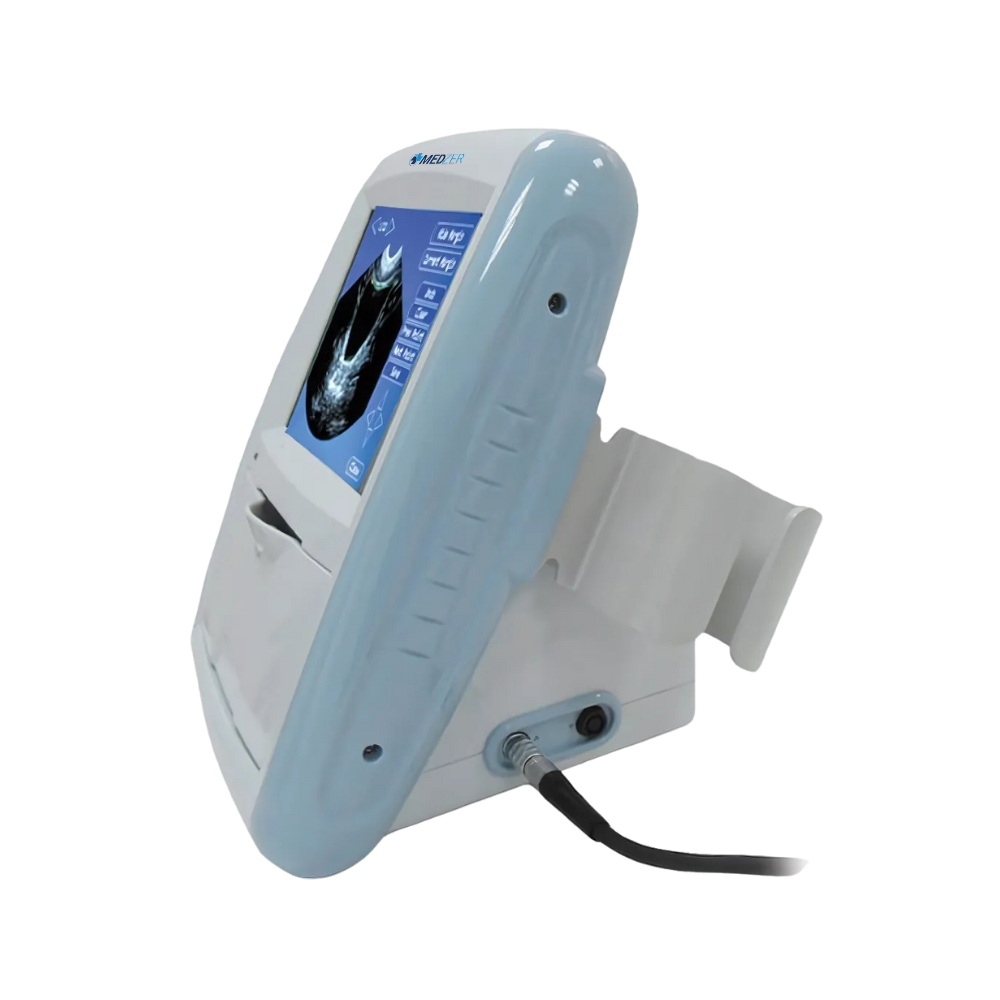

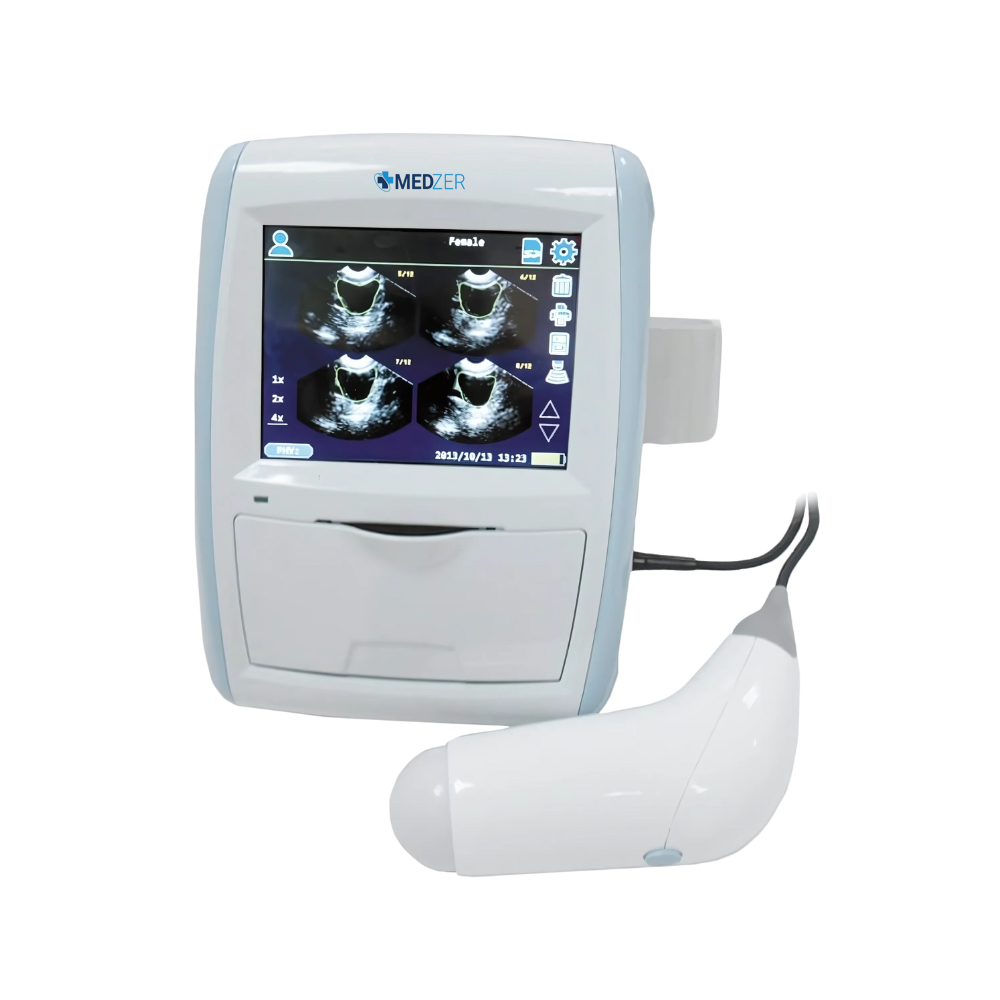

Ultrasound Bladder Scanner UBS-1000A

Ultrasound Bladder Scanner UBS-1000A

Touch screen operation

Powerful bladder wall recognition technology

Accurate contouring technology

Good compatibility for different bladders, no substantial error when measuring small volume or special shape bladders

High recognition rate for the bladder wall with air, accurate amount of urine volume

Specifications

Ultrasonic probe 3D scan, 2.6MHz broadband frequency probe
Screen 5.6-inch LCD touch screen
, 640 × 480 resolution
Measuring range 10 ml ~ 2000 ml
Automatic measurement error < 15 %
Scan time < 8 seconds
Volume measurement time < 6 seconds
Scanned image display frame 4 frames / seconds
Storage 32G, SD card data storage, can store cases> 40000
Printer Built-in thermal printer
Interface One probe port, one SD card slot
Power 100 ~ 260V AC power to charge power adapter, 12V DC to the scanner
Battery Built-in 24 W/h battery, built-in battery charging time is 3 hours
Capacity: > 4 hours, can be connected to an external 12V/2A battery
Dimension 200 × 160 × 140 mm

Features

Touch screen operation

Powerful bladder wall recognition technology

Accurate contouring technology

Good compatibility for different bladders, no substantial error when measuring small volume or special shape bladders

High recognition rate for the bladder wall with air, accurate amount of urine volume

With manual contour functions for accurate results obtained even when the bladder border is abnormal

No need to select Gender, Age group to consider special cases on the measurement results

Real-time imaging during the scanning process

3-D stepping motor based probe ensures lasting high-precision scanning

Request Quote for Ultrasound Bladder Scanner UBS-1000A
