Medical Equipment Expert
12.1-inch HD LCD display
black and white imaging basic
Inbuilt Gynac, Cardiac and Andrology examination module
THI and Histogram tracing
Supports OB report format
Specifications
Monitor | 12.1-inch HD LCD display |
---|---|
TGC | 8 TGC adjustable |
Focus | 4 |
Probe Depth | 16 levels |
Probe Frequency | 5 levels |
Main gain | 0-100% |
Scanning mode | Convex / Linear / Micro-convex |
Pseudo color | 0-7 |
Scanning area(angle) | 3 levels |
Edge enhancement | 0-3 |
Linear correlation | 0-5 |
Gamma correction | 0-7 |
Frame correlation | 0-3 |
Dynamic range | 0 ~ 135 dB |
Cine loop | 512 frames |
Body mark | 97 kinds |
Imaging function | Full-digital beam imaging technology |
U Disk support | FAT32 format |
Image reversal | up/down, left/right, black/white |
Measurement modules | GYN & OB package, Andrology, Cardiac, General Measurement OB-1: GS,BPD,CRL,FL,HL,TAD,LV,OFD,AC,HC,AFI Measurement OB-2: FTA, TTD, APTD, THD, TCD, CI, EFW, Input LMP, Growth Curve |
Transducers | Convex probe: (2.0MHz - 5MHz) Probe Frequency: 2.0MHz,2.5MHz,3.5MHz,4.0MHz,5MHz Probe Depth: 16 level [126,142,158,173,189,197,205,213,221,229,237,245,253,261,269,307mm] Linear probe: (5.5MHz - 9.0MHz) Probe Frequency: 5.5MHz,6.5MHz,7.0MHz,7.5MHz,9.0MHz Probe Depth: 16 level [35,42,49,62,69,76,83,90,97,104mm] Trans-vaginal probe: (5.0MHz - 7.5MHz) Probe Frequency: 5.0MHz,5.5MHz,6.5MHz,7.0MHz,7.5MHz Probe Depth: 16 level [62, 69, 76, 83, 90, 97, 104, 111, 125, 139mm] Micro-convex probe (4.0MHz - 7.0MHz) Probe Frequency: 4.0MHz,4.5MHz,5.0MHz,6.5MHz,7.0MHz Probe Depth: 16 level [62,69,83,97,111,125,139,152,166,180mm] |
Battery backup time | 4-8 hours |
Dimensions | 475 × 400 × 215 mm |
Weight | 4.5 kgs |
Accessories | Standard : Micro convex probe (3.5R60 W10) linear probe (7.5L40W10) Optional : Transvaginal probe Rectal probe Probe extensive holder |
Features
12.1-inch HD LCD display
black and white imaging basic
Inbuilt Gynac, Cardiac and Andrology examination module
THI and Histogram tracing
Supports OB report format
Portable design

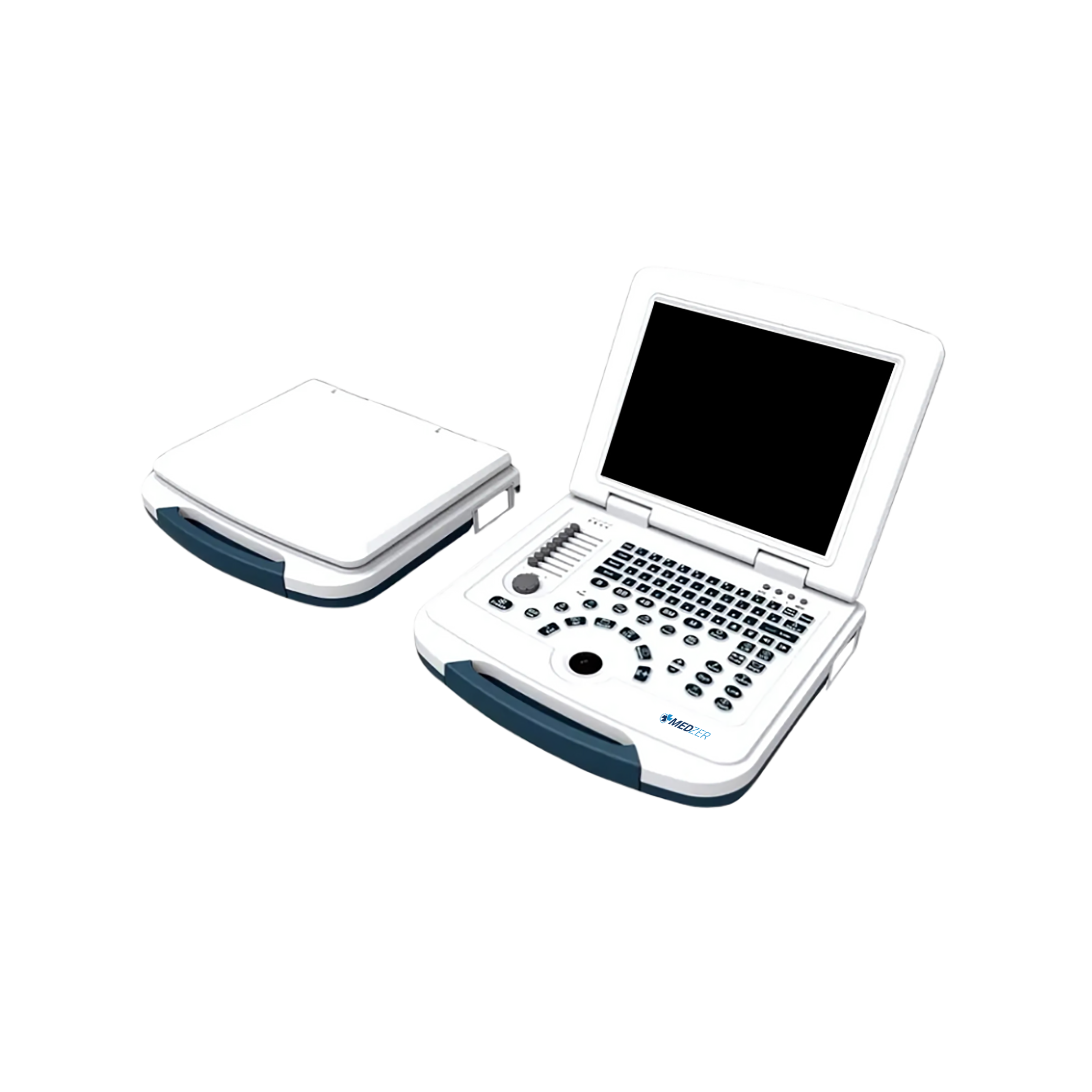

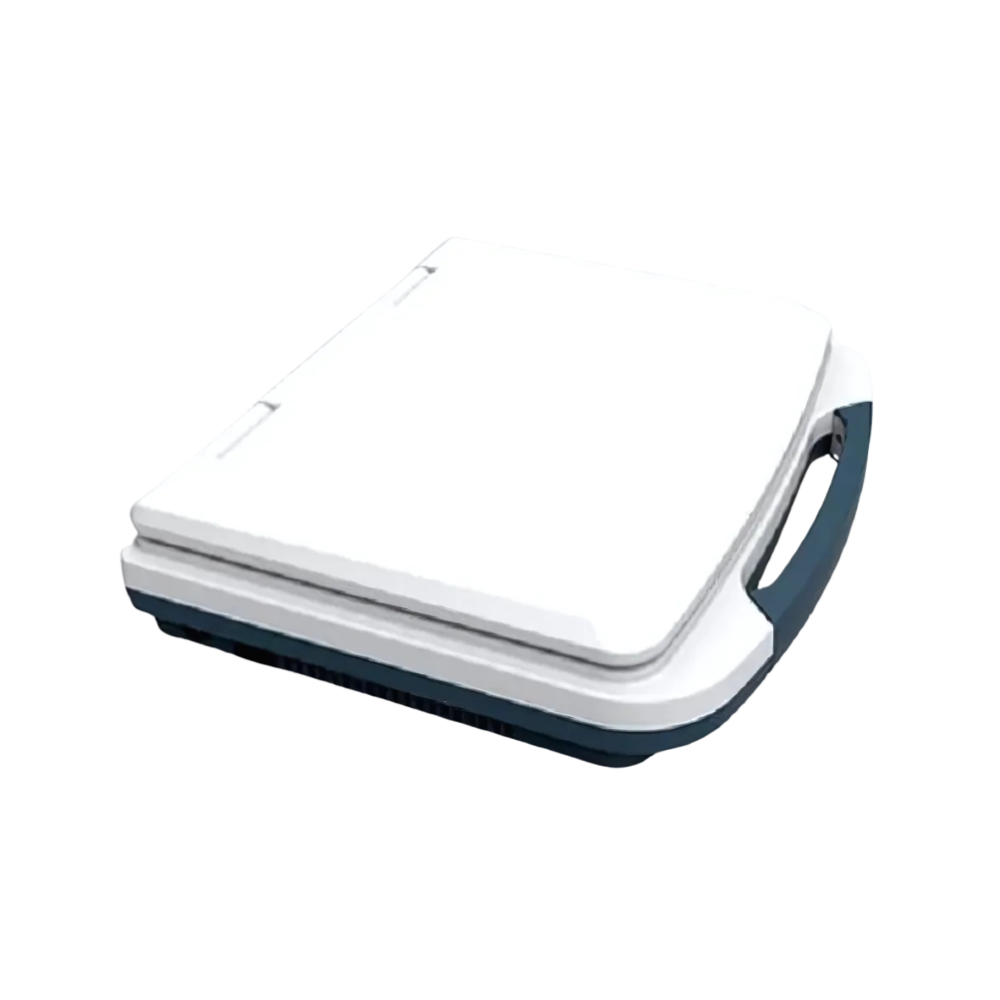

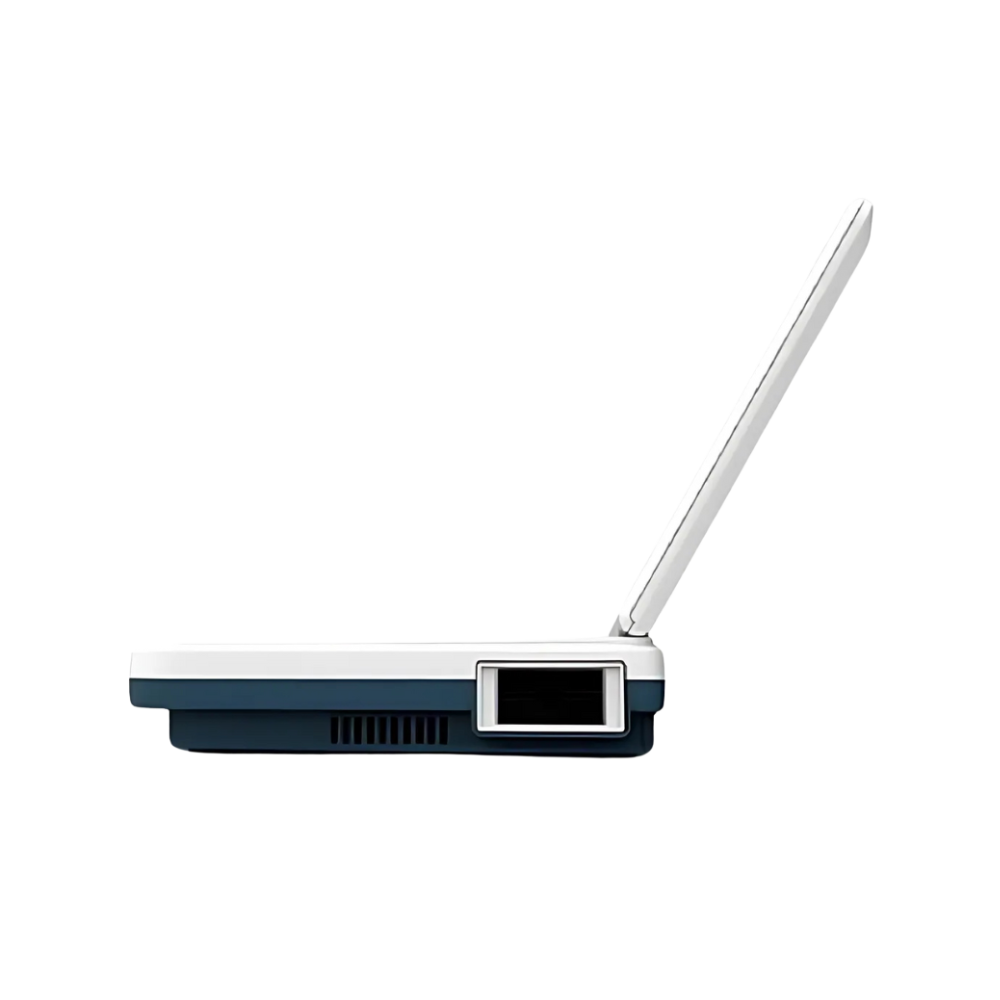

Medzer Laptop Ultrasound Scanner offer portable, high-quality imaging for healthcare professionals. Featuring a compact and lightweight design, they provide easy integration into any clinical or field setting. The user-friendly interface and long battery life ensure convenience and efficiency during patient examinations. They are equipped with advanced imaging technology to deliver clear and detailed diagnostic results for various medical applications. Our laptop ultrasound scanner ensure precise diagnostics in any environment while enhancing patient care and convenience.
