12.1 inch LED display
Progressive SMT components technology
Dynamic signal reception focal point
High-accuracy DSC image formation

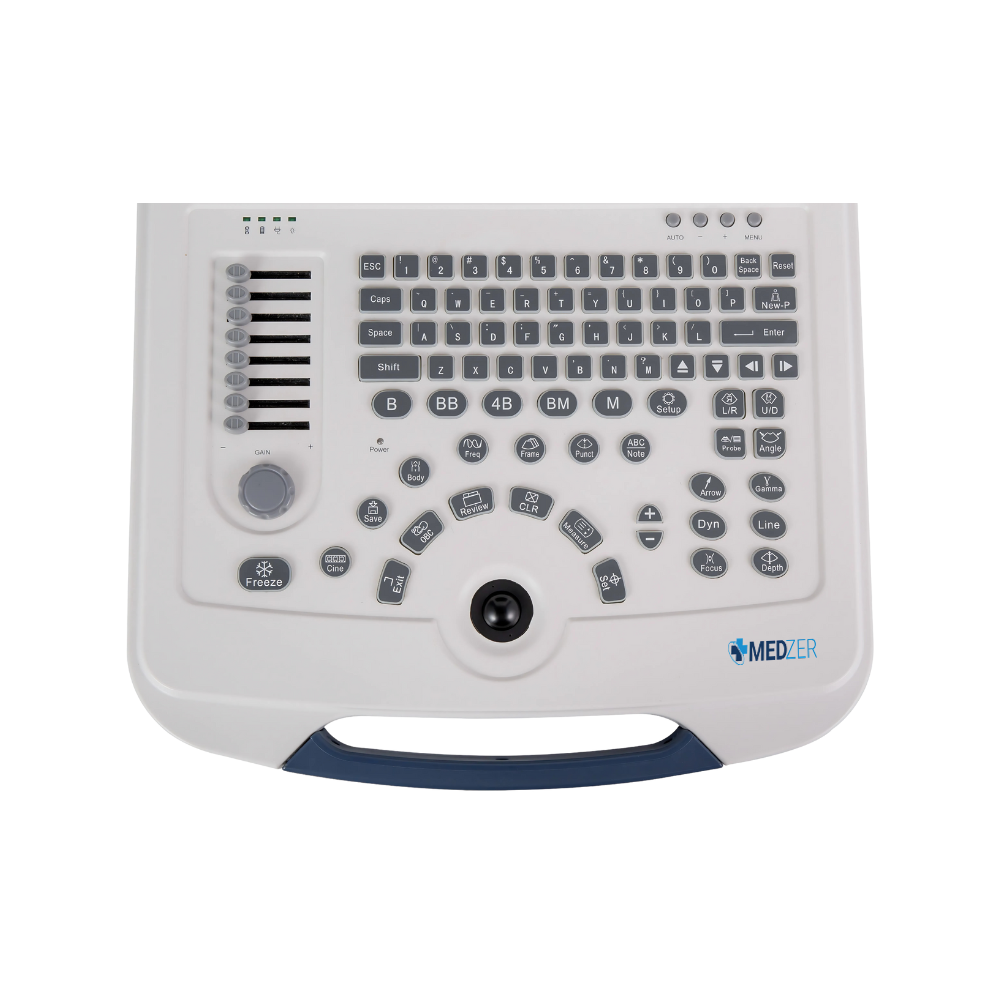

Backlit silicon keyboard with navigation scroll
Intelligent TGC gain control
Digital beamforming technology
Specifications
| Monitor | 12.1-inch high resolution LED |
|---|---|
| TGC | 8 TGC adjustable |
| Focus | 4 |
| Probe Depth | 300 mm |
| Scanning mode | Convex / Linear / Micro-convex |
| Image storage | 8 |
| Magnification | ×0.8, ×0.8, ×0.90, ×0.95, ×1.0, ×1.05, ×1.10, ×1.20, ×1.30, ×1.40, ×1.50, ×1.60, ×1.80, ×2.0, ×2.2, ×2.5 |
| Display mode | B, B+B, B+M, M, 4B |
| Output interface | PAL-D, SVGA (SVGA color monitor), USB port |
| Resolution | lateral≤2mm, axial≤1mm |
| Blind Zone | ≤3mm |
| Geometry precision | lateral ≤5%, axial ≤5% |
| Pseudo color | 7 |
| Cine loop | 256 frames |
| Body mark | 30 types |
| Image reversal | up/down, left/right, |
| Transducers | 96 elements convex probe, trans-vaginal probe |
| Dimensions | 470 × 220 × 400 mm |
| Weight | 4.7 kgs |
| Accessories | Standard : Micro convex probe (3.5R60 W10) linear probe (7.5L40W10) Optional : Transvaginal probe Rectal probe Probe extensive holder |
Features
