19-inch LCD screen and 10-inch touch screen
High brightness, high resolution colour medical LCD display
Easy to operate, user-friendly keyboard layout
Automated Image optimization
Real-time 4D technology
Specifications
| Monitor | 19 inch LED monitor 10 inch touch screen |
|---|---|
| Imaging mode | Color doppler imaging mode Black and white imaging mode Power doppler mode Real-time triplex mode |
| Imaging functions | Image optimization 6 level adjustable Smoothing 8 level adjustable Edge enhancement 8 level adjustable PRF 16 level adjustable Gray scale curve 16 level adjustable Acoustical power 15 level adjustable |
| Measurement | Distance, circumference, area, volume, heart rate, diameter stenosis rate, area stenosis rate, angle, rhythm, speed Processing : black and white afterglow 0-7, smoothing 0-7, gray curve 1-16, frame correlation, SHI, sound power, wall filter, cumulative number, baseline adjustment, sampling frame adjustment , spectral sampling volume, spectral sampling volume angle, the PRF (pulse repetition frequency) |
| Probe depth | 320 mm |
| Display mode | Black and White images: B, 2 B, 4 B, B | | D M, B, left and right sides PW PW (D) (D), fluctuation, M, B mode local amplification, linear array probe trapezoidal imaging, 3 D image reconstruction / 3 D real-time Color Doppler image: B/BC, BC/B, B/D, B/C/D CFM: | B | | | D, B C C M, B | C double real-time, PW (D) (D), CFM, CPA, the CW |
| Output interface | Video, USB, DICOM 3.0 |
| Puncture guide | Available |
| Blind zone | ≤ 4mm |
| Gain adjustment | Overall gain: 0 ~ 100% PW gain: 0-15, CFM Gain: 0-15 |
| Gravel positioning | Available |
| Resolution | Lateral ≤ 2mm Axial ≤ 1mm |
| Geometry precision | horizontal ≤ 5%, vertical ≤ 5% |
| Image reversal | Up/Down, Left/Right, Angular variation, Reverse |
| Transducers | 3.5MHZ convex probe: 2.0, 3.0, 3.5, 4.0, 5.5MHz 6.5MHZ trans-vaginal Probe: 5.0, 6.0, 6.5, 7.5, 9.0MHz 3.0MHZ Phased array probe: 2.0, 3.0, 3.5, 4.0, 5.0MHz 7.5MHZ High frequency Linear Probe: 6.0, 6.5, 7.5, 10.0, 12.0MHz Volume probe: 2.0, 3.0, 3.5, 4.0, 5.5MHz Micro-convex probe R11: 2.0, 3.0, 3.5, 4.0, 5.5, 6.5, 7.5, 10.0 MHz Micro-convex probe R20: 5.0, 6.0, 6.5, 7.5, 9.0MHz |
| Physical Characteristics | Dimensions: 970 x 680 *x 1410 mm |
| Accessories | Main unit, 3.5MHz Multi-frequency convex probe(2.0, 3.0, 3.5, 4.0,5.5MHz), 19" LED monitor, USB port |
| Optional | Linear probe(7.5L40V30 C) 6.0-10.0 MHZ Transvaginal probe(6.5R10V30 C) 4.5-9.0 MHZ Micro-convex probe(3.5R20V30 C) 4.5-9.0 MHZ Phased array probe(3.0PA16V30 C) 2.5-4.0 MHZ Rectal probe(6.0L64V30 L) 4D Volume probe (4DR40V30 C) |
Features
19-inch LCD screen and 10-inch touch screen
High brightness, high resolution colour medical LCD display
Easy to operate, user-friendly keyboard layout
Automated Image optimization
Real-time 4D technology
Beam fan-shaped expansion technology
THI technology
Echo enhancement technology
Panoramic imaging

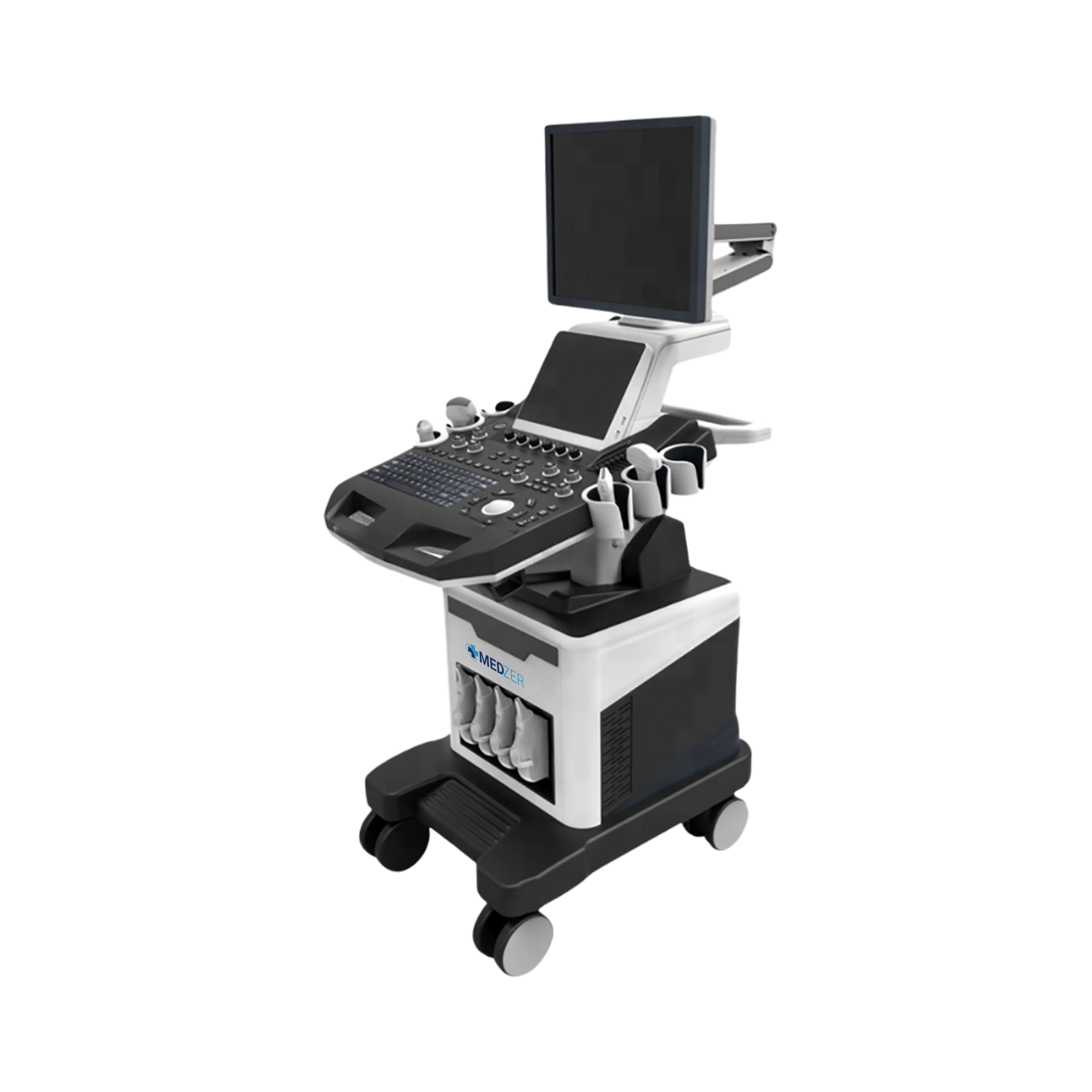

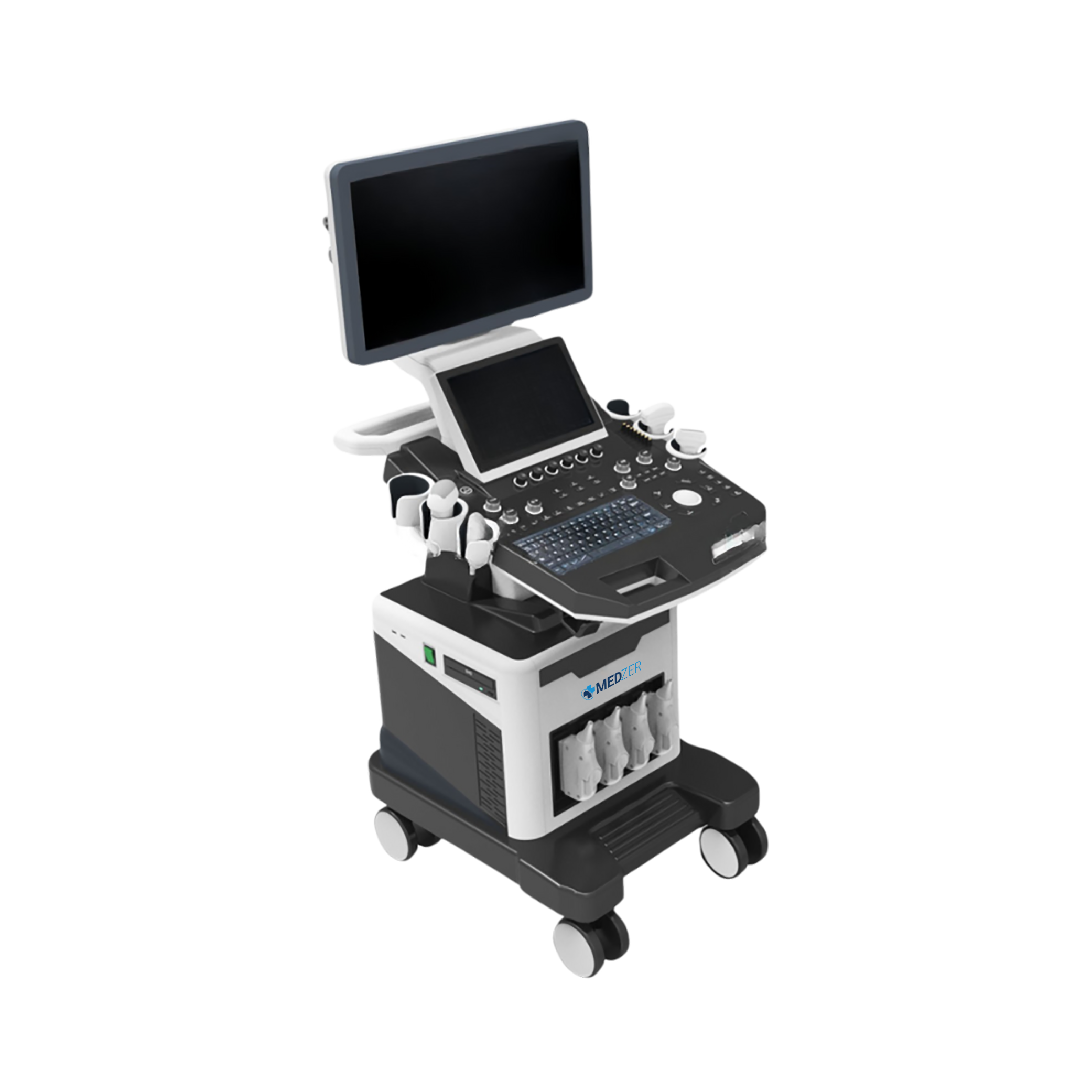

Medzer Trolley Ultrasound System provide high-quality imaging with advanced technology for accurate diagnostics. They feature wheeled trolley for quick setup and manoeuvrability in clinical settings. Their user-friendly interface and ergonomic design ensure comfort for both practitioners and patients. They also feature large, high-resolution display and customizable settings to suit various medical applications. Our trolley ultrasound system are ideal for hospitals, clinics, and diagnostic centres to provide reliable performance.
