5.7-inch color LED touch screen
Small and exquisite foot switch for easy operation
Display two measurement results, easy to contrast and compare the validity of the measurement results
External USB interface design
FPGA / Online software updates
Specifications
| Ultrasonic probe | 3D scan, 2.5 MHz Hand-held probe equipped with scanning switch |
|---|---|
| Screen | 5.7-inch color LED touch screen |
| Measuring range | 20 ml ~ 999 ml |
| Accuracy | 20 ml ~ 99 ml (deviation: < ± 15ml); 100ml ~ 999ml (deviation: < 15%) |
| Scan time | < 4 seconds |
| Scanned image display frame | 12 frames / seconds |
| Printer | Graphics thermal printer |
| Interface | USB interface |
| Battery | > 6h Battery life |
| Weight | 1.7 kgs |
Features
5.7-inch color LED touch screen
Small and exquisite foot switch for easy operation
Display two measurement results, easy to contrast and compare the validity of the measurement results
External USB interface design
FPGA / Online software updates
Increasing the real-time scann function
Can realize the transverse section of body positioning in advance
Faster scan time
Advanced algorithms ensure the accurate results for various abnormal shape
Faster response time, the interface refresh without waiting, no sense of pause
Vivid 12 image scanning speed tips
One key image optimization, improve the accuracy of measurement
Handheld probe with scanning switch, easy to operation
Manual annotation function

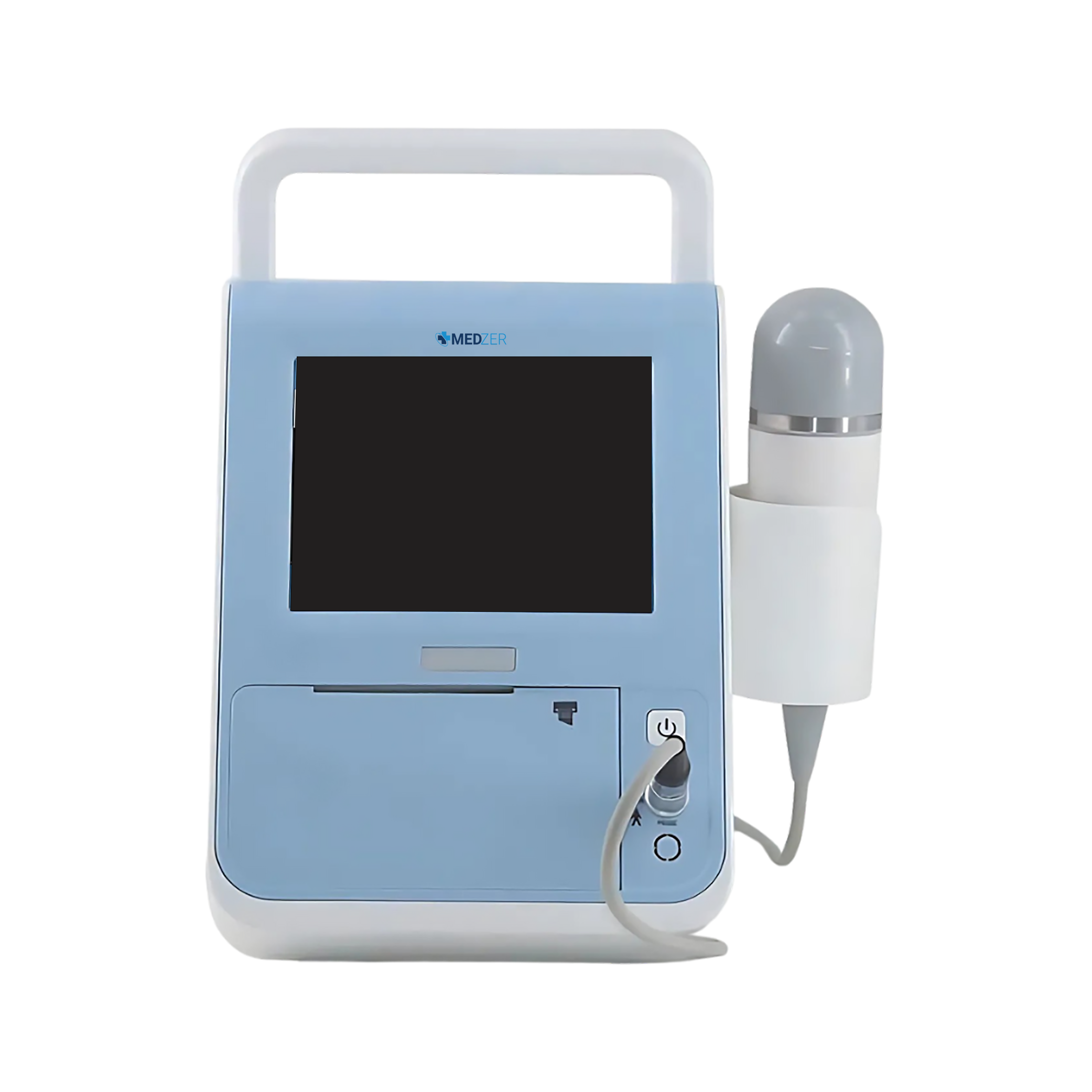

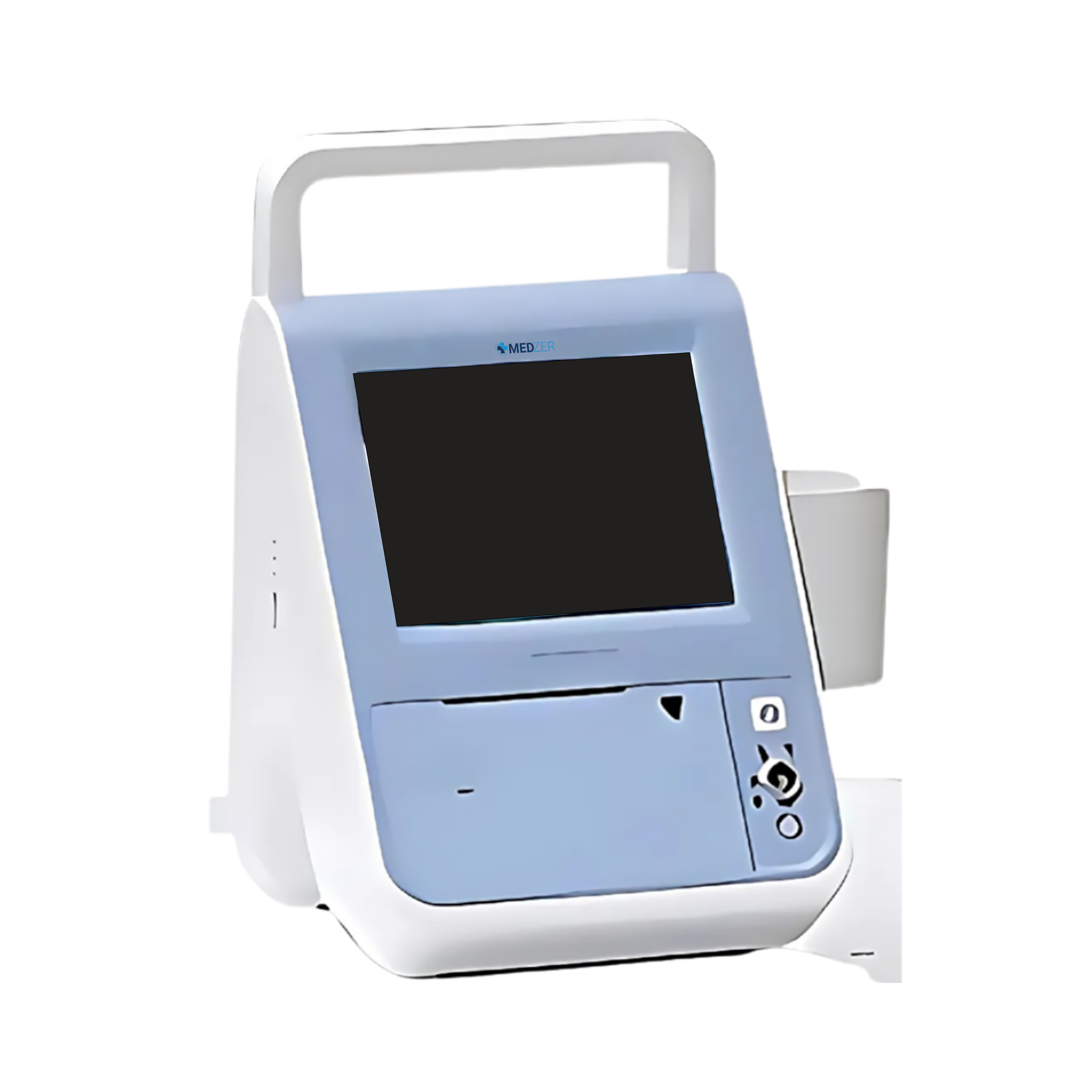

Medzer Ultrasound Bladder Scan provide quick and accurate assessment of bladder volume and urinary retention. With intuitive interface and real-time imaging, they provide reliable results in seconds. Their compact and user-friendly design make them ideal for use in hospitals, clinics, and long-term care facilities. They aid in effective diagnosis and management of urological conditions. Our ultrasound bladder scan are essential tool for any modern healthcare setting ensuring both patient comfort and professional precision.
