10 inch LED display
Embedded ultrasonic platform
Inbuilt Abdominal, OB/GYN, Urology, Cardiac package
Backlit silicon keyboard
Intelligent TGC gain control
Specifications
| Monitor | 10 inch high resolution LED |
|---|---|
| Focus | 2 |
| Probe Depth | ≥242 mm |
| Scanning mode | Convex / Linear / Micro-convex |
| Image storage | 8 |
| Magnification | ×0.8, ×0.8, ×0.90, ×0.95, ×1.0, ×1.05, ×1.10, ×1.20, ×1.30, ×1.40, ×1.50, ×1.60, ×1.80, ×2.0, ×2.2, ×2.5 |
| Display mode | B, B+B, B+M, M, 4B |
| Output interface | PAL-D, SVGA (SVGA color monitor), USB port |
| Resolution | lateral≤2mm, axial≤1mm |
| Blind Zone | ≤3mm |
| Geometry precision | lateral ≤5%, axial ≤5% |
| Pseudo color | 7 |
| Cine loop | 256 frames, various playback options |
| Body mark | 30 kinds |
| Image reversal | up/down, left/right, black/white |
| Measurement modules | Distance, perimeter, area, volume, heart rate, gestational week, FW, AFI, EDD, maternity table, heart package |
| Transducers | 96 elements convex probe, trans-vaginal probe |
| Weight | 6.5 kgs |
| Accessories | Standard : 3.5MHz Multi-frequency convex probe(2.5MHz-5.0MHz) Optional : 6.5MHz Trans-vaginal probe(5.5MHz-7.5MHz) 7.5MHz High frequency linear probe(6.5MHz-8.5MHz) |
Features
10 inch LED display
Embedded ultrasonic platform
Inbuilt Abdominal, OB/GYN, Urology, Cardiac package
Backlit silicon keyboard
Intelligent TGC gain control
Portable design

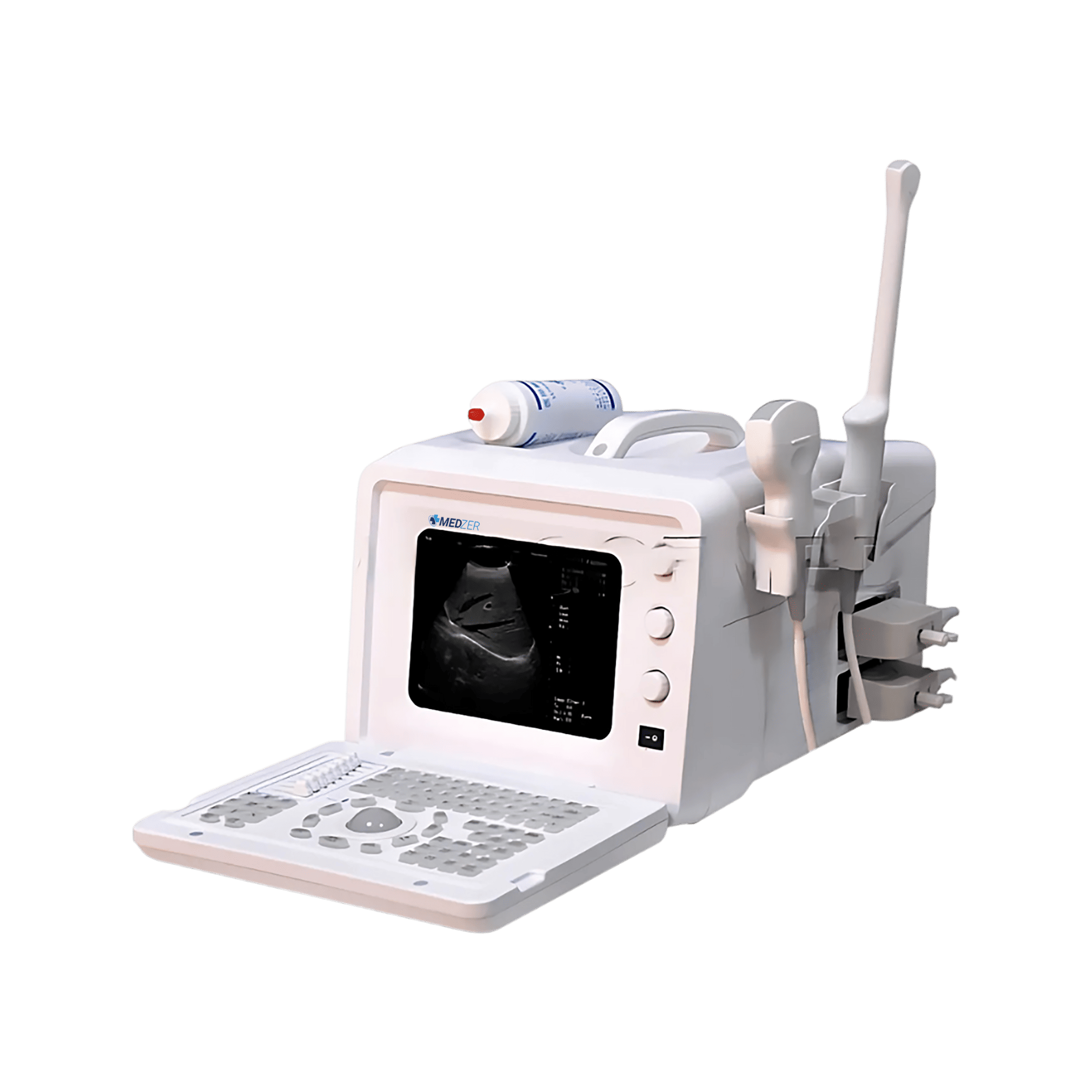

Medzer Laptop Ultrasound Scanner offer portable, high-quality imaging for healthcare professionals. Featuring a compact and lightweight design, they provide easy integration into any clinical or field setting. The user-friendly interface and long battery life ensure convenience and efficiency during patient examinations. They are equipped with advanced imaging technology to deliver clear and detailed diagnostic results for various medical applications. Our laptop ultrasound scanner ensure precise diagnostics in any environment while enhancing patient care and convenience.
