Surgical Cautery (ESU) | Lab Equipment | Medzer

Surgical Cautery (ESU)

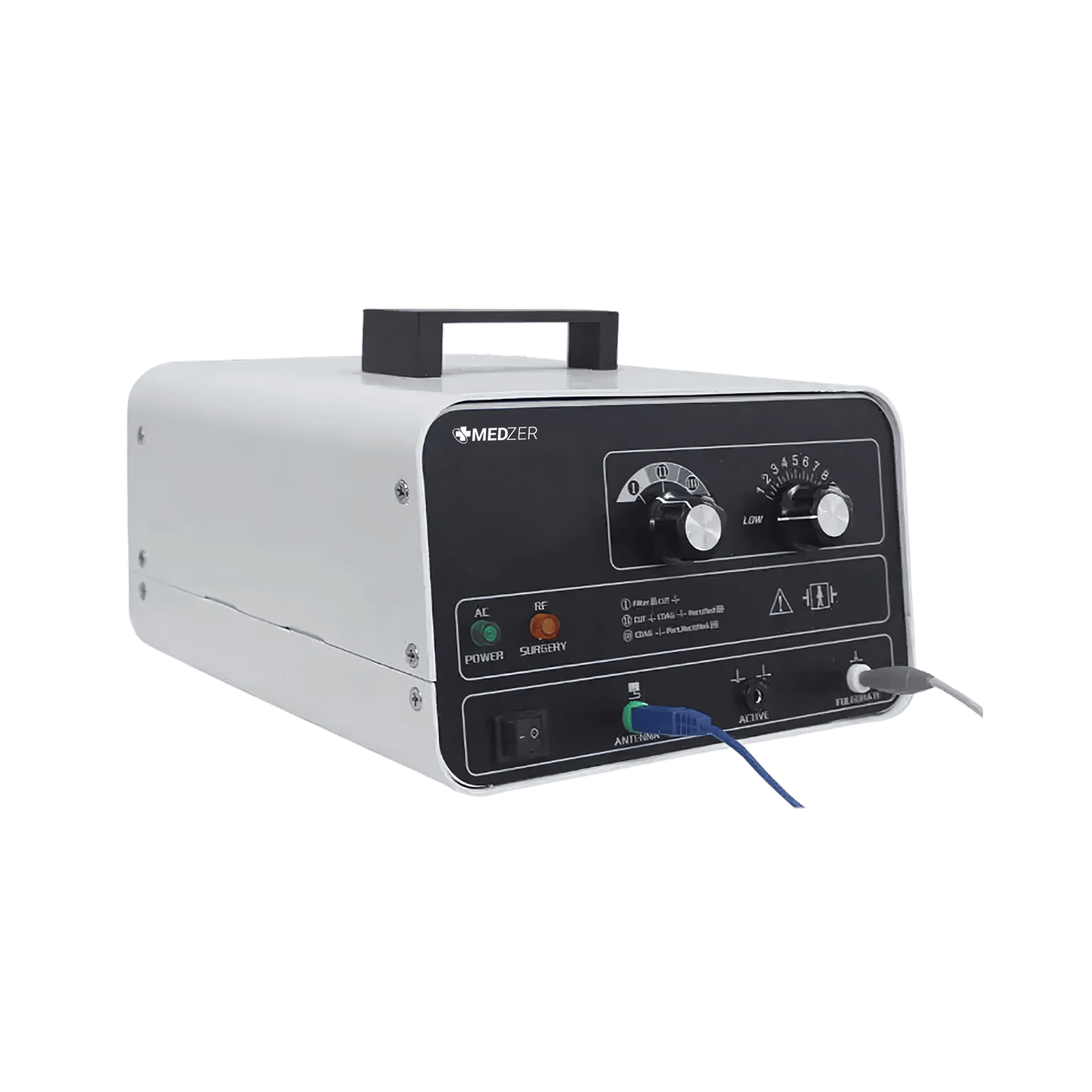

Surgical Cautery Machine SCM-1000A
Surgical Cautery Machine SCM-1000A
Modes Pure cut
Blend cut
Coagulation
Fulguration
Working Frequency 3.8 MHz
Electrode
ElectrodeResusable Bipolar ForcepsResusable Fine ElectrodeDisposable LEEP Electrode
Qty175
Power Supply 110 V / 220 V ± 10 V, 60 Hz/ 50 Hz ±1 Hz Power rating : 140 W
View Product Catalog

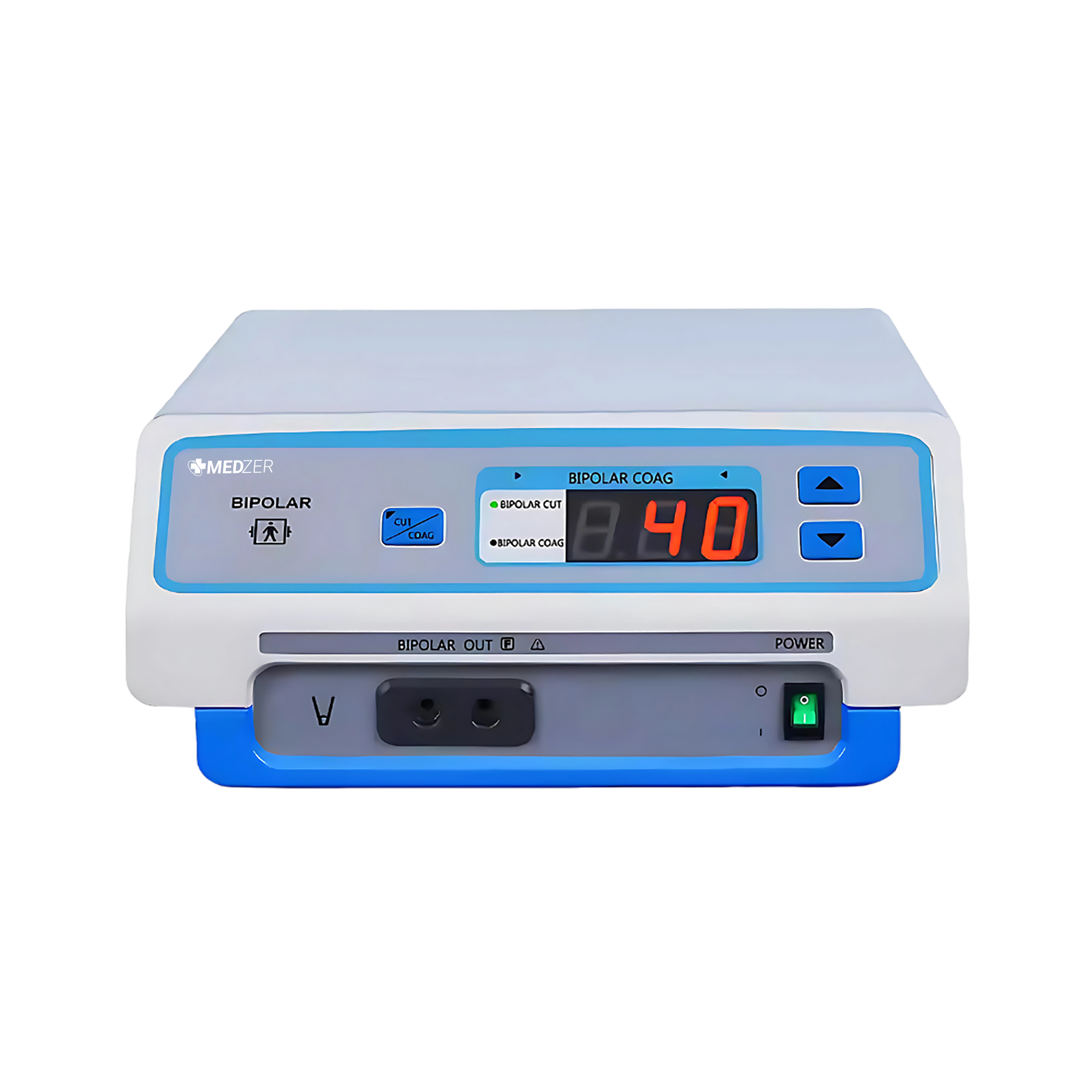

Surgical Cautery Machine SCM-1000B
Surgical Cautery Machine SCM-1000B
Modes
ModeBipolar coagulationBipolar cut
Power1-120W1-120W
Load200Ω200Ω
Working Frequency 1.02 MHz
Electrode
ElectrodeBipolar ForcepsBipolar cut pencil
Qty11
Power Supply 220V ± 22V (110 V ± 11 V) 50 Hz ± 1 Hz
Power rating : 400 W
View Product Catalog

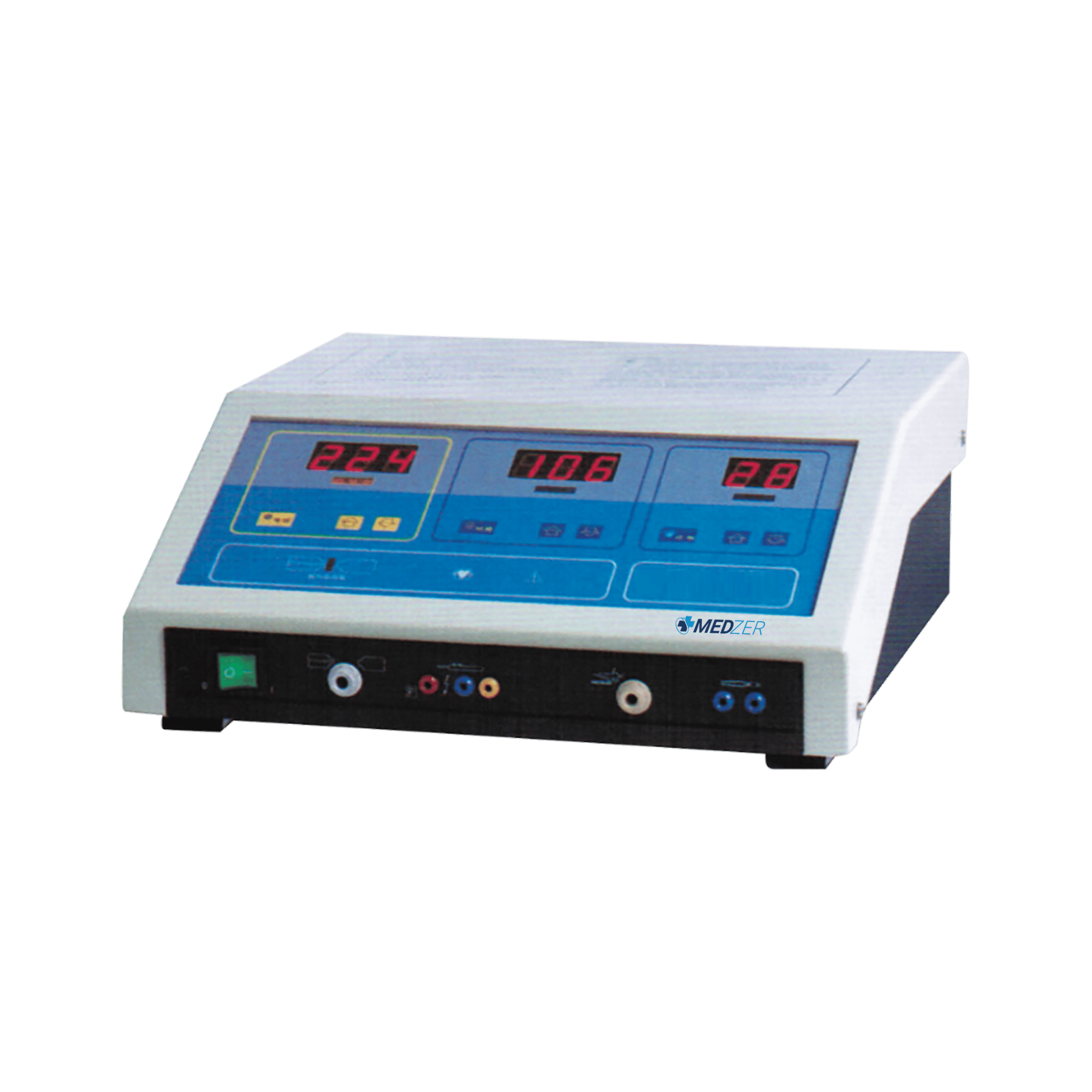

Surgical Cautery Machine SCM-1000C
Surgical Cautery Machine SCM-1000C
Modes
Pure cut or cutBlend 1Blend 2Blend 3DesiccateFulgurate or Coag.SprayBipolar
5 W ~ 300 W (Up to 5 W ~ 400 W)----5 W ~ 150 W-2 W ~ 70 W
Working Frequency 512 kHz ± 5% kHz
Device classification Class I,Type CF
Leakage currents (GND) Less than 0.5mA
View Product Catalog
Surgical Cautery Machine SCM-1000D
Surgical Cautery Machine SCM-1000D
Modes
ModeMono-polar Pure cut Mono-polar BlendMono-polar Spray CoagMono-polar Forced CoagBipolar Coagulation
Power1W ~ 300W1W ~ 200W1W ~ 80W1W ~ 120W1W ~ 50W
Load 800Ω 800Ω 800Ω 800Ω200Ω
Working Frequency 512 kHz
Electrode
ElectrodeESU Pencil
Bipolar Forceps
Qty5
1
Power Supply 220 V ± 22 V, 50Hz ± 1Hz (110 V ± 11 V, 60 Hz)
Power rating : 1100 VA ± 10 %
View Product Catalog
Surgical Cautery Machine SCM-1000E
Surgical Cautery Machine SCM-1000E
Modes
ModePure CutBlend 1Blend 2Blend 3Coagulation 1Coagulation 2Coagulation 3Bipolar 1Bipolar 2
Power350W250W200W200W200W200W100W70W70W
Load500Ω500Ω500Ω500Ω500Ω500Ω500Ω150Ω150Ω
Working Frequency 512 kHz ± 5% kHz
Leakage currents (GND) Less than 50 μA
Leakage currents through patient Less than 50 μA
View Product Catalog

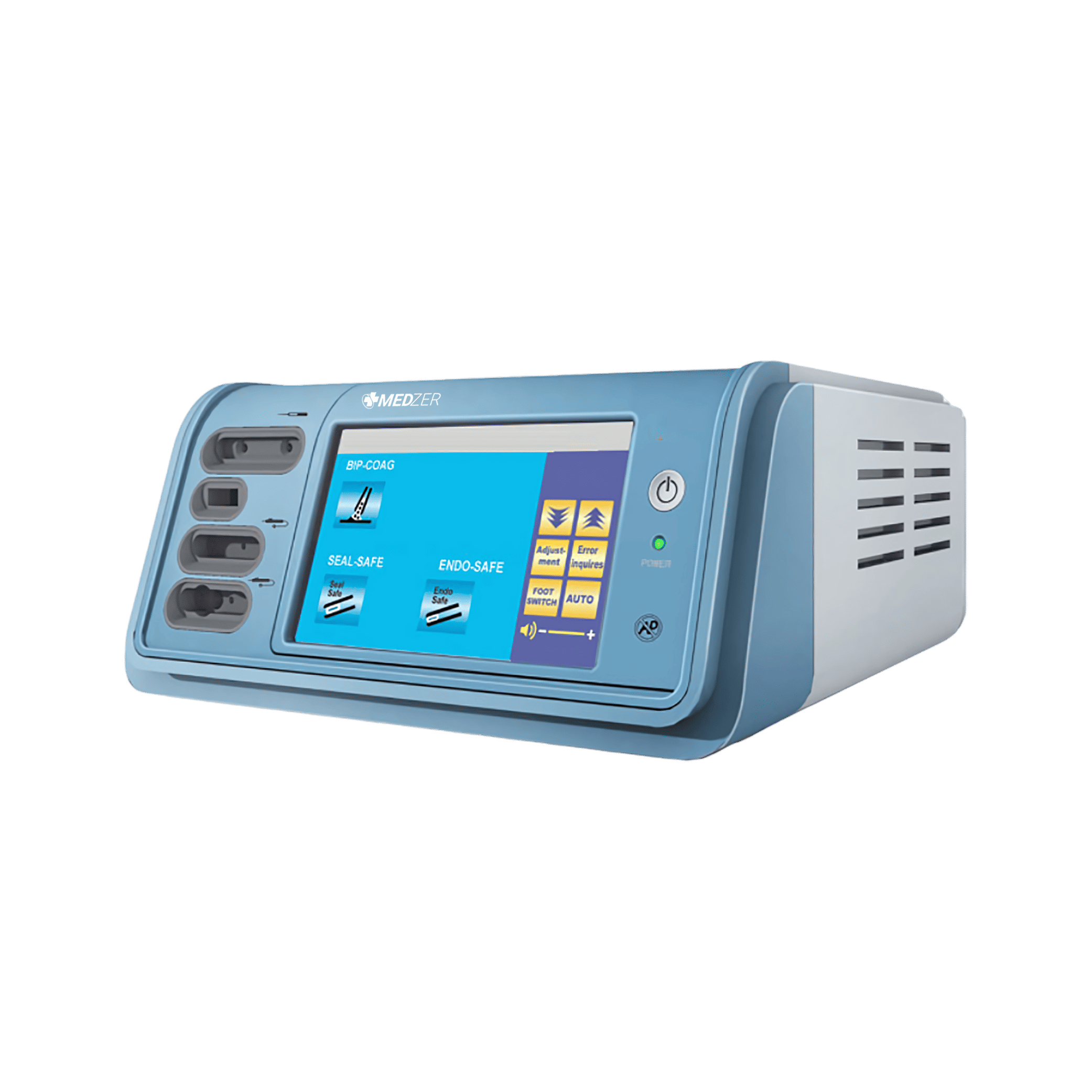

Surgical Cautery Machine SCM-1000F
Surgical Cautery Machine SCM-1000F
Modes Pure cut
3 Blend cut
Fulguration
Spray coagulation
Bipolar cut
Bipolar coagulation
Working Frequency 512 kHz ± 5% kHz
Device classification Class I,Type BF
Electrode
ElectrodeESU Pencil
Qty2
View Product Catalog

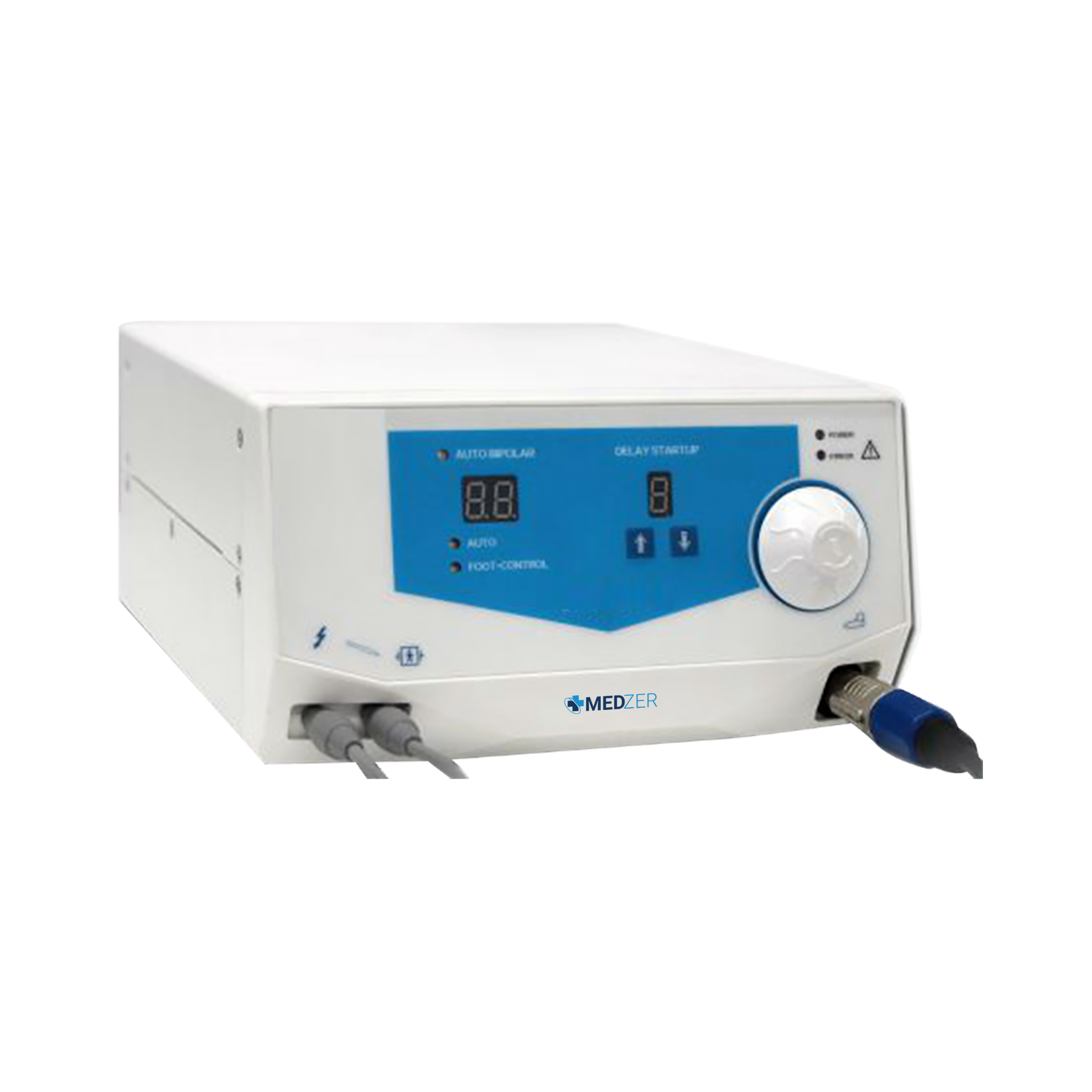

Surgical Cautery Machine SCM-1000G
Surgical Cautery Machine SCM-1000G
Modes
ModeBipolar Coagulation 1Bipolar Coagulation 2
Power1 W ~ 80 W1 W ~ 80 W
Load100 Ω100 Ω
Working Frequency 1000 kHz
Electrode
ElectrodeReusable Bipolar Forceps
Qty 1
Power Supply 110 V / 220 V , 60 Hz/ 50 Hz
Power rating : 100 W
View Product Catalog

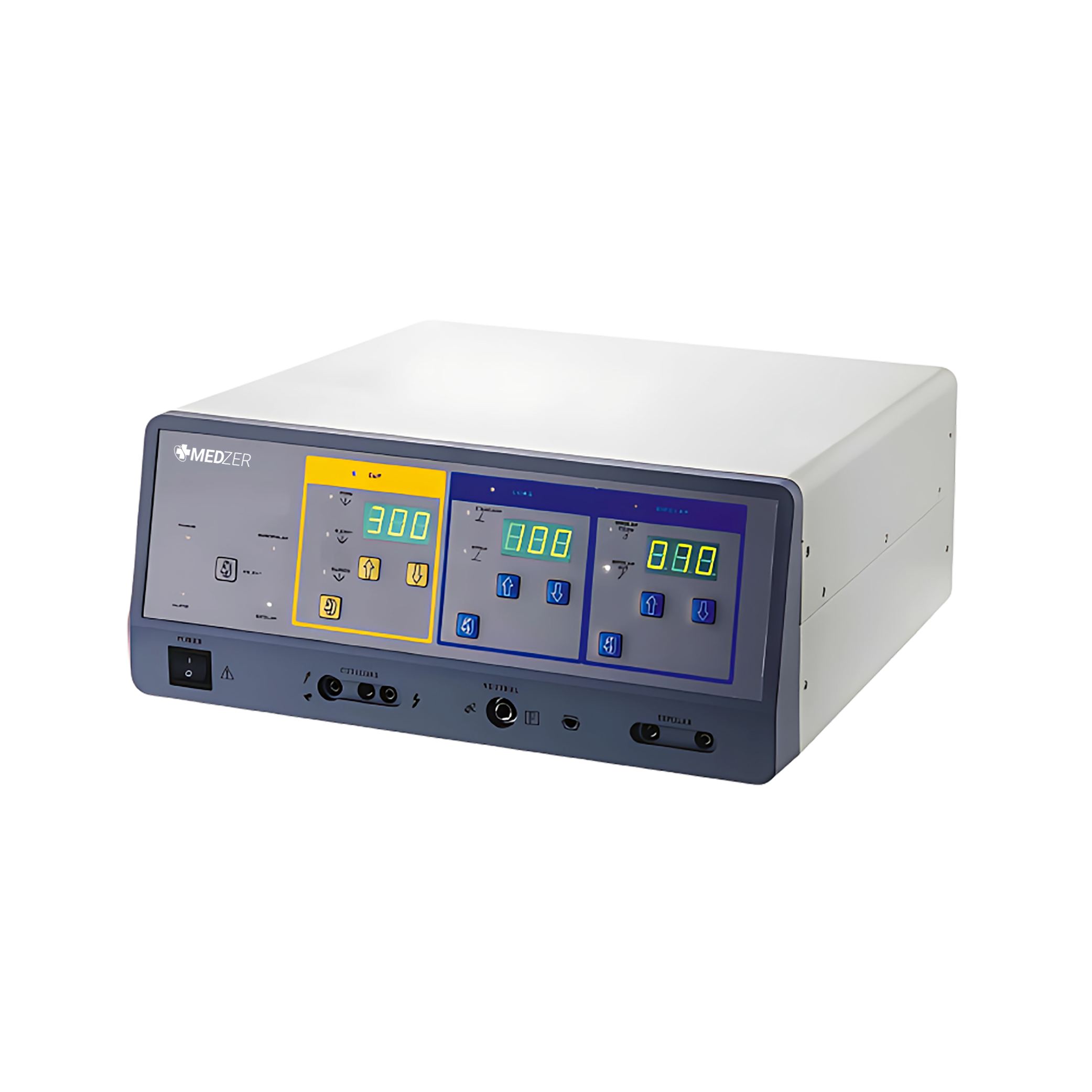

Surgical Cautery Machine SCM-1000H
Surgical Cautery Machine SCM-1000H
Modes
ModePure CutBlend 1Blend 2Standard CoagSpray CoagBipolar CutBipolar Coag
Power0 W ~ 300 W0 W ~ 250 W0 W ~ 200 W0 W ~ 100 W0 W ~ 70 W0 W ~ 100 W0 W ~ 70 W
Load300 Ω300 Ω300 Ω300 Ω300 Ω50 Ω50 Ω
Working Frequency 500 kHz
Electrode
ElectrodeElectrosurgical PencilDisposable Bipolar Pad
Quantity21
Power Supply 110 V, 50 Hz / 60 Hz
220 V,50 Hz / 60 Hz
View Product Catalog

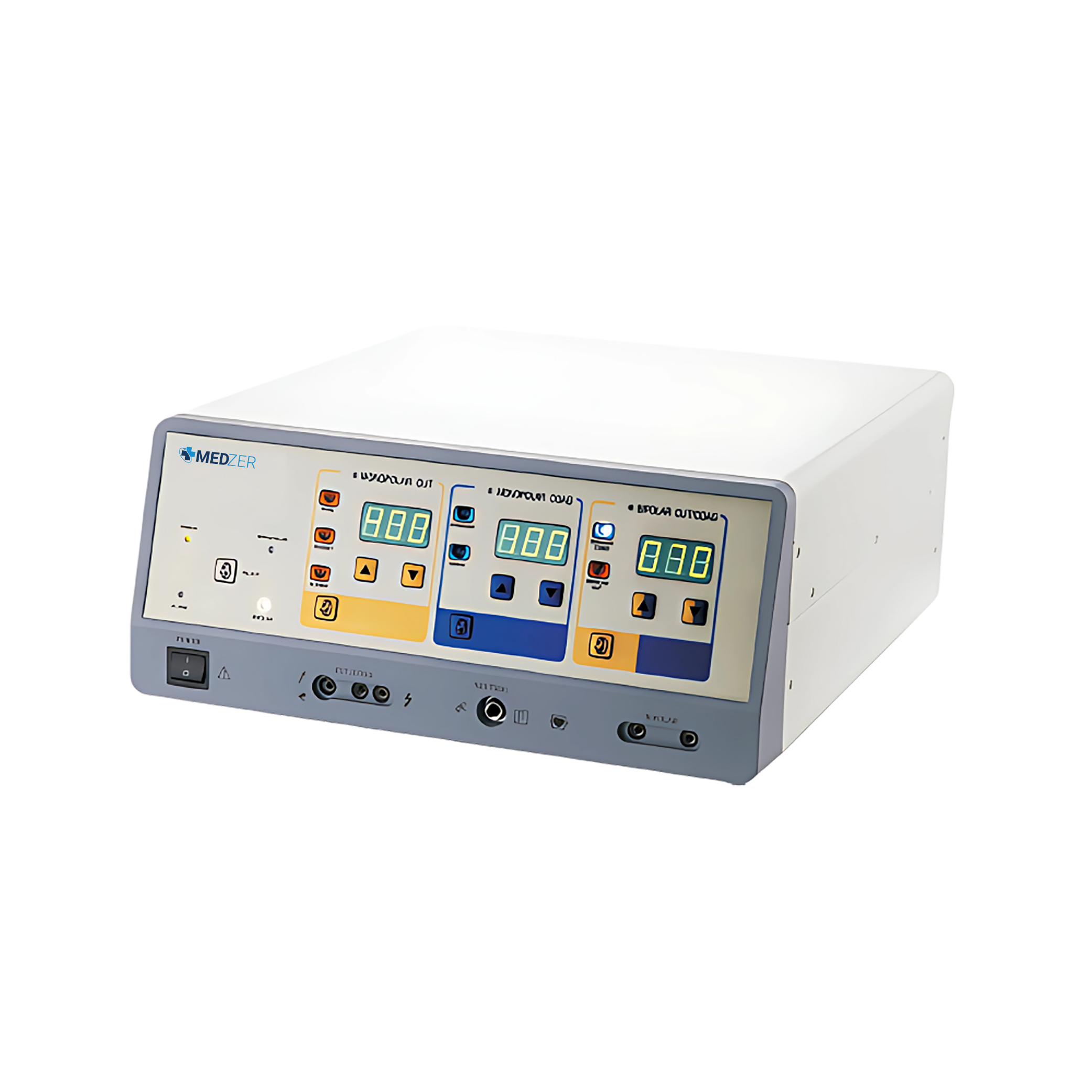

Surgical Cautery Machine SCM-1000I
Surgical Cautery Machine SCM-1000I
Modes
ModePure CutBlend 1Blend 2Standard CoagSpray CoagBipolar CutBipolar Coag
Power0 W ~ 400 W0 W ~ 250 W0 W ~ 200 W0 W ~ 100 W0 W ~ 70 W0 W ~ 100 W0 W ~ 70 W
Load300 Ω300 Ω300 Ω300 Ω300 Ω50 Ω50 Ω
Working Frequency 500 kHz
Electrode
ElectrodeElectrosurgical PencilDisposable Bipolar Pad
Quantity21
Power Supply 110 V, 50 Hz / 60 Hz
220 V,50 Hz / 60 Hz
View Product Catalog
