Traction System

Medzer Traction System are designed to provide controlled and effective traction for orthopedic treatments. With adjustable settings, they ensure precise force application for optimal patient comfort and recovery. Their reliable design ensure safe and efficient treatment for patients. They are constructed from durable materials for long-lasting use in both clinical and hospital settings. Our traction system offer trusted solution for optimal patient outcomes in orthopedic treatment and rehabilitation.

Lumbar Traction system LTS-1000A

Slow traction distance: 0 – 200 mm

Rotation angle: -25° ~ 25°

Forming angle: -25° ~ 10°

Traction force: 0 ~ 99 kgs


≥ 3000 N

Lumbar Traction system LTS-1000B

Slow traction distance: 0 – 200 mm

Rotation angle: -25° ~ 25°

Forming angle: -25° ~ 10°

Traction force: 0 ~ 99 kgs

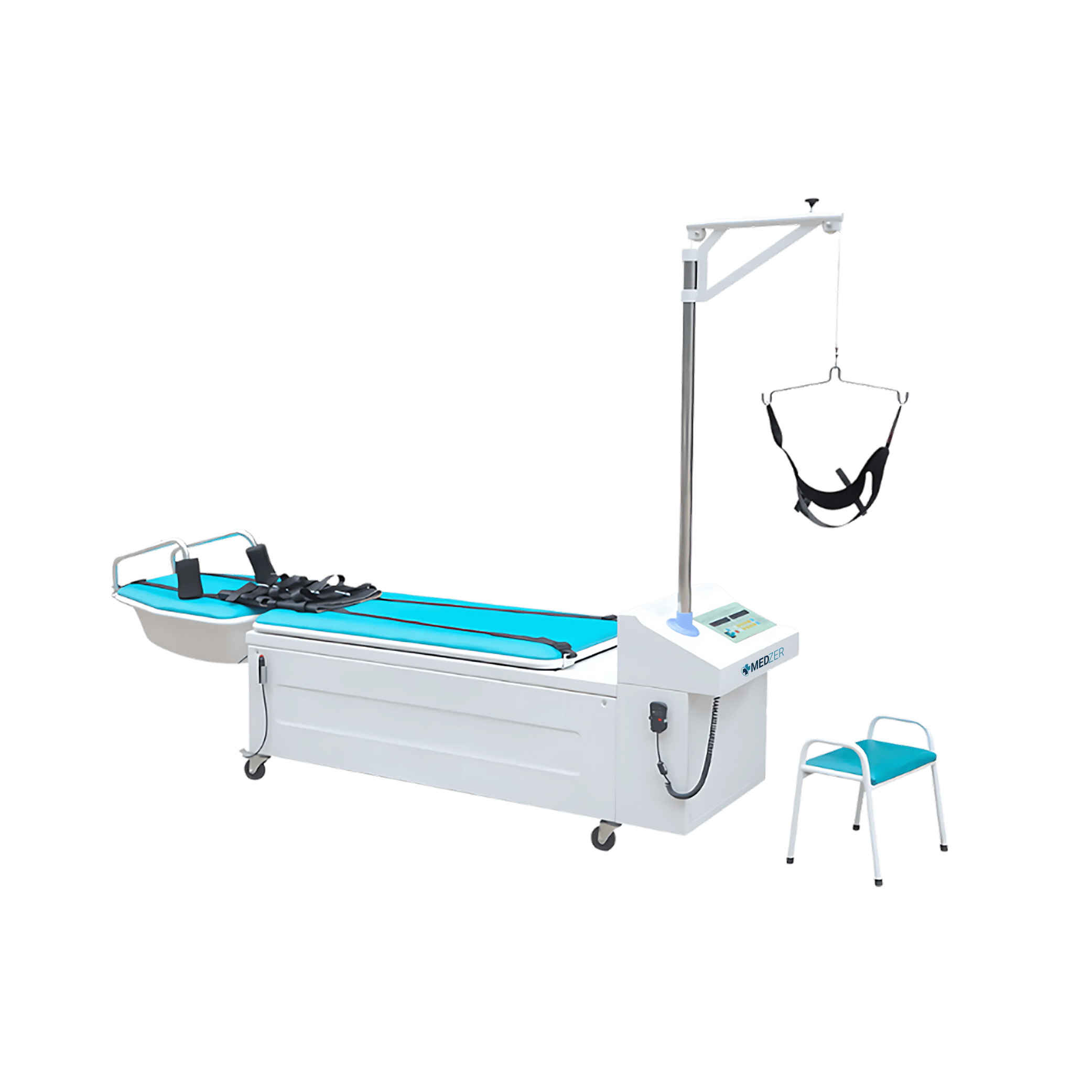

Cervical and Lumbar Traction system LTS-1000C

Slow traction distance: 0 – 200 mm

Power source: 220 ± 22 V / 50 Hz ± 1 Hz

Table dimension: 2300 × 600 × 600 mm

Weight: 76 kgs

Cervical and Lumbar Traction system LTS-1000D

Slow traction distance: 0 – 200 mm

Rotation angle: -40° ~ 40°

Forming angle: -10° ~ 20°

Traction force: 0 ~ 99 kgs

Lumbar Traction system LTS-1000E

Slow traction distance: ≤ 260 mm

Rotation angle: Up/Down : ≤ 20 °


Left/Right : ≤ 25 °

Traction force: Lumbar: 100 N ~ 1200 N


Cervical: 0 ~ 200 N

Traction speed: ≤ 15 mm/s

Lumbar Traction system LTS-1000F

Slow traction distance: ≤ 200 mm

Rotation angle: Up/Down: ≤ 20 °


Right/Left: ≤ 28 °

Traction force: Lumbar: 0 N ~ 999 N


Cervical: 0 ~ 200 N

Traction speed: ≤ 15 mm/s

Cervical and Lumbar Traction system LTS-1000G

Slow traction distance: ≤ 250 mm

Rotation angle: Up/Down : ≤ 20 °


Left/Right : ≤ 25 °

Traction force: Lumbar: 100 N ~ 1200 N


Cervical: 0 ~ 200 N

Traction speed: ≤ 15 mm/s

Cervical and Lumbar Traction system LTS-1000H

Slow traction distance: 0 – 300 mm

Traction force: Lumbar: 0 ~ 999 N


Cervical: 0 ~ 200N

Traction speed: ≤ 15 mm/s

Total traction period: 0 ~ 60 min
