Patient Monitor

Medzer Patient Monitor offer real-time tracking of vital signs, including heart rate, blood pressure, SpO2, and respiratory rate for patient care. They feature intuitive controls and customizable alarm settings. Their high-resolution display provide clear and accurate readings for easy monitoring. Built with durability and reliability, they are ideal use in hospitals, clinics, and emergency settings. Our patient monitor provide efficient, accurate, and continuous patient care in any healthcare setting.

Multi-parameter Monitor

Vital sign Monitor

Multi-para Bedside Monitor MPPM-1000A

Display: 800 × 600 pixels screen resolution

Navigation: Selection control knob or (USB mouse/keypad control – Optional)

Printer: Thermal Printer

Paper width: 50 mm

Multi-para Bedside Monitor MPPM-1000B

Display: 12.1-inch TFT LED screen

Parameter: 3/5 Lead ECG, NIBP, SpO2, Pulse Rate, Temperature, Respiration

Navigation: Selection control knob

Dimensions: 340 × 280 × 130 mm

Multi-para Bedside Monitor MPPM-1000C

Display: 12.1-inch color TFT screen

Parameter: SpO2, ECG, NIBP, TEMP, RESP, PR


ETCO2 (optional)

SpO2: Range: 0% ~ 100%
Accuracy: ±2% at 70 ~ 100% ; <70%, undefined
Alarm Range: 50-100% and OFF
Averaging: 4,8,16

Pulse rate: Range: 30 ~ 250bpm
Accuracy: ±2bpm at 30-250bpm
Alarm Range: 30-250BPM and OFF

Multi-para Bedside Monitor MPPM-1000D

Display: 7-inch LCD display


640 × 480 pixel resolution

Parameter: 3/5 Lead ECG, NIBP, SpO2, Pulse rate, Temperature, Respiration

Navigation: Selection control knob

Memory: 48 hours tabular and graphic trends & data storage

Multi-para Bedside Monitor MPPM-1000E

Display: 7 inches High brightness color LED display

Navigation: Selection control knob

Multi-para Bedside Monitor MPPM-1000F

Display: 12.1-inch (800 x 600 pixel) color TFT LCD

Parameter: 3/5 Lead ECG, NIBP, SpO2, Pulse Rate, Temperature, Respiration

SpO2: Range: 0% ~ 100%

Pulse rate: Range: 30 ~ 250bpm

Multi-para Bedside Monitor MPPM-1000G

Display: 7-inch high-brightness TFT

Parameter: 5-lead ECG, Dual TEMP, SpO2, NIBP

SpO2: Range: 0% ~ 100%

NIBP: 10 mmHg ~270 mmHg

Multi-para Bedside Monitor MPPM-1000H

Display: 12.1-inch screen, wide angle of view, TFT color screen

Parameter: ECG, SpO2, RESP, NIBP, TEMP

SpO2: Range: 0% ~ 100%


Precision: ±2% (70% ~ 100% )
Alarm range: 0% ~100%, upper and lower limit can be adjusted

NIBP: Adult: Systolic pressure: 40 ~ 270 mmHg


Diaslolic pressure 10 ~ 215 mmhg
Mean pressure 20 ~ 235 mmHg
Pediatric: Systolic pressure: 40 ~200 mmHg
Diaslolic pressure 10 ~150 mmHg
Mean pressure 20 ~ 165 mmHg

Multi-para Bedside Monitor MPPM-1000I

ECG: ±0.5mVp to 5mVp, ≥10MΩ, 0.05 to 150Hz (Diagnostic) 0.5 to 40Hz (Monitoring) 1 to 20Hz (Operation), ≥90dB (Diagnostic) ≥105dB (Monitoring & Operation), ×1/8, ×1/4, ×1/2, ×1, ×2, ×4, Auto, 6.25mm/s, 12.5mm/s, 25mm/s, 50mm/s, 15 to 350 bpm, ±1% or ±1 bpm

Respiration: Adult: 0 rpm to 120 rpm Paediatric and neonate: 0 rpm to 150 rpm, Adult: 7 rpm to 120 rpm Paediatric/neonate: 7 rpm to 150 rpm

SpO2: Dual wavelength optical method, 0% to 100%, 70% to 100%, 30 to 250 bpm, ±2 bpm, As low as 0.3%

NIBP: Oscillometric method, <30 seconds (adult cuff), 25 to 290 mmHg (Adult) 25 to 240 mmHg (Paediatric) 25 to 140 mmHg (Neonate), 10 to 25 mmHg (Adult) 10 to 200 mmHg (Paediatric) 10 to 115 mmHg (Neonate), 15 to 260 mmHg (Adult) 15 to 215 mmHg (Paediatric) 15 to 125 mmHg (Neonate), Mean difference: ±5 mmHg Standard Deviation: 8mmHg, Manual, Auto, STAT, Multi-cycle mode, 1 to 480 minutes

Multi-para Bedside Monitor MPPM-1000J

ECG: ±0.5mVp to 5mVp, ≥10MΩ, Diagnostic: 0.05 to 150Hz, Monitoring: 0.5 to 40Hz, Operation: 1 to 20Hz, Diagnostic: ≥90dB, Monitoring & Operation: ≥105dB, ×1/4, ×1/2, ×1, ×2, ×4 and auto, 6.25mm/s, 12.5mm/s, 25mm/s, 50mm/s, 15 to 350 bpm, ±1% or ±2 bpm

Respiration: 0 to 120 rpm, ±5% or ±2 rpm

SpO2: Dual-wavelength optical method, 0% to 100%, 70 to 100%, 30 to 250 bpm, ±2 bpm or ±2%, <0.3%

NIBP: Oscillometric method, Adult cuff: <30 seconds, Adult: 40 to 275 mmHg, Paediatric: 40 to 200 mmHg, Neonate: 40 to 135 mmHg, Adult: 10 to 210 mmHg, Paediatric: 10 to 150 mmHg, Neonate: 10 to 95 mmHg, Adult: 20 to 230 mmHg, Paediatric: 20 to 165 mmHg, Neonate: 20 to 110 mmHg, Mean difference: ±5 mmHg, Standard deviation: 8 mmHg; Manual, Auto, STAT, Multi-cycle mode, 1 to 480 minutes

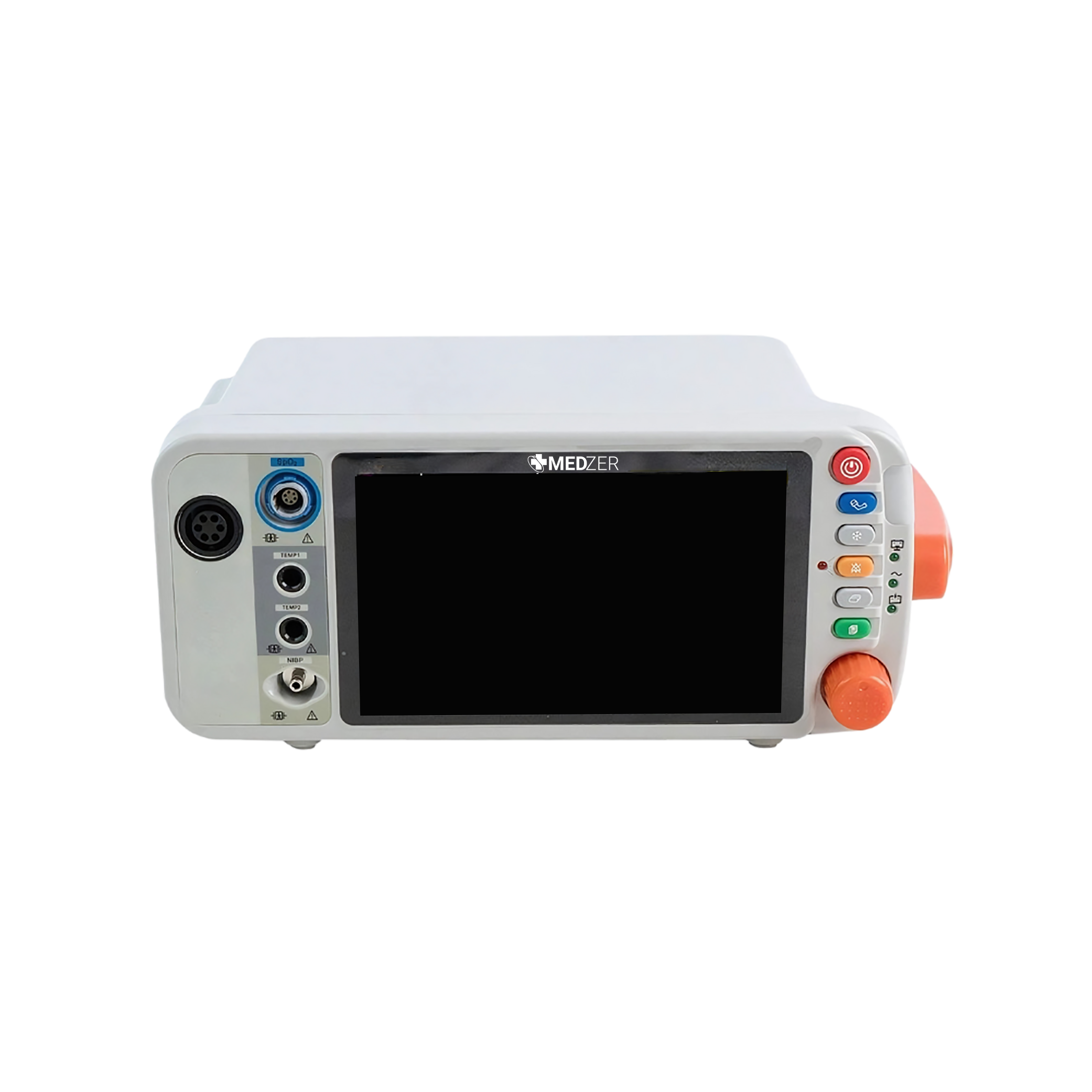

Vital Sign Monitor VSM-1000A

Display: 7 inch LCD Display


Resolution: 800 x 480 pixels.

ECG: Lead mode: 5 leads (RA, LA, RL, LL, V)


Lead selection: I, II, III, V, AFL, AVL, AVR
ECG waveform: 1 or 3 channels
Sweep speed: 6,25 mm/sec, 12,5 mm/sec, 25 mm/sec, 50 mm/sec
Gain selection: 0,25, 0,5, 1, 2, and (mm/mv), auto
Heart rate range: 20 - 350 bpm

NIBP: Range of Systolic: 40 – 270 mmHg


Range of Diastolic: 20 – 200 mmHg
MAP: 30 – 220 mmHg
Maesurement time: 30 sec – 50 sec typical, 120 sec maximum
Alarm range: 20 – 260 mmHg (1 mmHg steps), and OFF

PR: Range: 30 – 250 bpm


Resolution: 1 bpm

Vital Sign Monitor VSM-1000B

Display: 2.4-inch TFT color LCD display panel

ECG: ECG waveform gain: 0.5 mm / mV,1.0 mm / mV, 2.0 mm / mV


Scanning speed: 7.5 mm / s, 15 mm / s

NIBP: Range: 30 mmHg ~ 280 mmHg


Accuracy: ±5 mmHg or ±5%
Maximum cuff pressure: < 300 mmHg
Measuring wrist : 135 mm ~ 215 mm
At 15 mmHg (< 3min)
Over voltage protection
Alarm: ± 2 mmHg

PR: 30 beats / min ~ 80 beats / min ± 2


80 beats / min ~ 150 beats / min ± 4
150 beats / min ~ 240 beats / min ± 5
Accuracy: ± 5%

Vital Sign Monitor VSM-1000C

Display: LED with 3.2-inch LCD screen with backlight

ECG: 3-lead/5-lead ECG with Standard connector

NIBP: SYS: 40 to 270 mmHg


DIA: 20 to 200 mmHg

PR: 20 bpm ~ 250 bpm

Vital Sign Monitor VSM-1000D

Display: 7-inch TFT HD LCD

ECG: Standard 3-lead : R,L,N ; Lead mode :Ⅰ,Ⅱ,Ⅲ


Standard 5-lead : R,L,F,N,C ; Lead mode :Ⅰ,Ⅱ,Ⅲ,aVR,aVL,aVF,V
ECG signal : -8 mV ~ 8 mV
HR sensitivity : > 200 μV

NIBP:





Adult Systolic pressure:40 ~ 270 mmHg Diastolic pressure:10 ~ 215 mmHg Mean pressure:20 ~ 235 mmHg
Pediatrics Systolic pressure:40 ~ 200 mmHg Diastolic pressure:10 ~ 150 mmHg Mean pressure:20 ~ 165 mmHg
Neonate Systolic pressure:40 ~ 135 mmHg
Diastolic pressure:10 ~ 100 mmHg
Mean pressure:20 ~ 110 mmHg

PR: 20 bpm ~ 300 bpm


±2%

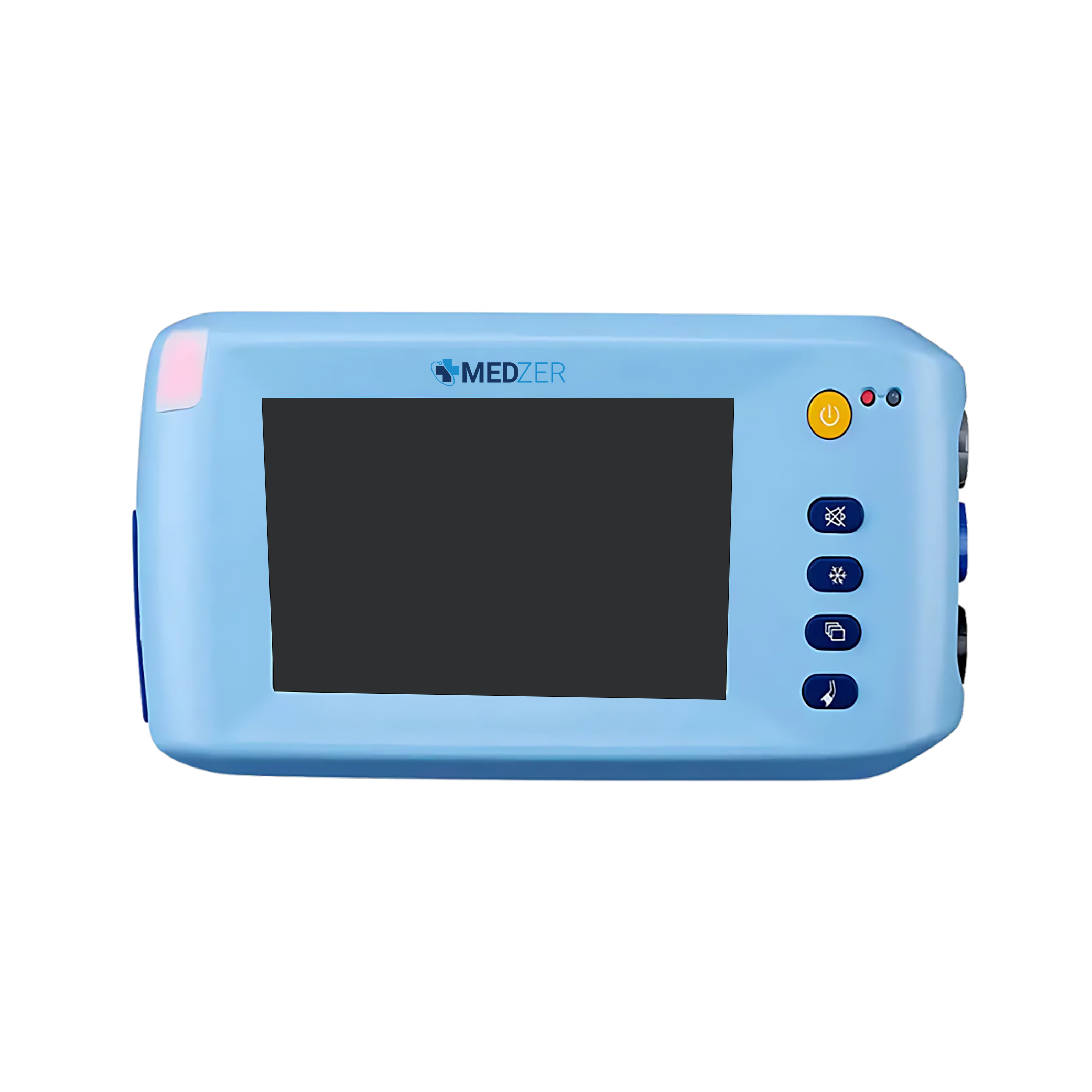

Vital Sign Monitor VSM-1000E

Display: 5-inch color TFT-LCD touchscreen

ECG: 3-lead ECG with Standard connector


Lead selection: I, II, III
Gain selection: ×1, ×2, ×4, ×8
Sweep speed: 12.5, 25, and 50 mm/s
Frequency response: Filter: 0.05 Hz ~ 100 Hz (-3 dB), Filter: 0.5 Hz ~ 40 Hz (-3 dB)
Calibration signal: 1mV square wave
Protection: against electrosurgical interference and defibrillation Heart rate :30 bpm ~ 250 bpm
Renew Time: 1 time per beat
Accuracy: ± 1 bpm
Mode: Audible and visual alarm

NIBP: Mode: Manual, Auto, STAT


Measuring Interval in AUTO Mode: 1, 2, 3, 5, 10, 15, 20, 30, 60 (min)
Measuring Period in STAT Mode: 5 min
Cuff Pressure Range:0 ~ 300 (mmHg)
Pulse Rate Range:30 ~ 250 (bpm)
Measurement Rage: Adult 30~255mmHg, Pediatric 30~160mmHg
Over-pressure Protection: Adult 300mmHg, Pediatric 220mmHg
Pressure Resolution : 1mmHg

PR: Range:0 ~ 250 bpm


Resolution: 1 bpm
Accuracy: ±1 bpm
