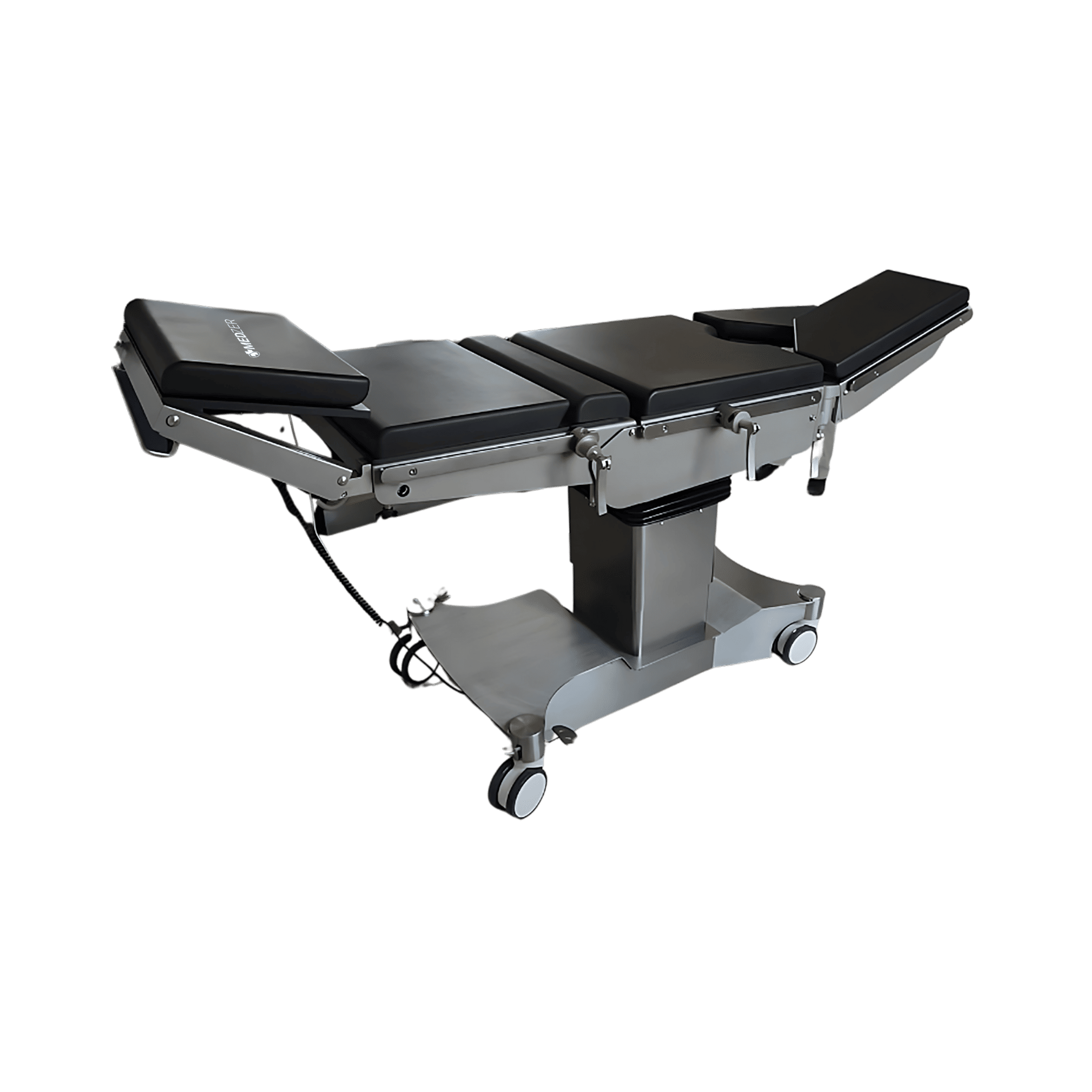

Orthopedic Operation Table ORT-1000C

Orthopedic Operation Table ORT-1000C

Corrosion-free stainless steel frame

Electric leg-rest folding

Handheld controller with display for flexible operation

Auxiliary controller attached to bedframe for increased safety

Traction frame designed for convenience during imaging

Specifications

Tabletop Length 2220 mm
Tabletop Width 555 mm
Tabletop Width (with side rails) 600 mm
Height Adjustment 700-1000 mm
Trendelenburg /Reverse Trendelenburg 24°
Left/Right Tilt 22°
Head Plate(Vertical) 40°/90°
Back Plate(Vertical) 70°/22°
Leg Plate(Vertical) 15°/90°
Leg Plate(Horizontal) 200°
Kidney Bridge (Optional) ≥ 110 mm
Floor panel 1030 x 650 x 200 mm
Castor 125 mm
Voltage  220 V / 50 Hz
110 V / 60 Hz
Maximum load capacity 280 kgs
Accessories Optional : Orthopedic traction system
Dimension Overall : 2220 × 555 × (700 - 1000) mm
Seat plate : 540 mm
Leg plate : 580 mm
Head plate : 300 mm
Back plate : 380 mm
Side plate : 350 mm
Weight 350 kgs

Features

Corrosion-free stainless steel frame

Electric leg-rest folding

Handheld controller with display for flexible operation

Auxiliary controller attached to bedframe for increased safety

Traction frame designed for convenience during imaging

Medical grade polyurethane conformity to safety standards

Removable lower leg plate

Stable and smooth movement for reduced patient interference

Buy Now :- Orthopedic Operation Table ORT-1000C

315

Orthopedic Operating Table

Medzer Orthopedic Operating Table feature adjustable sections for optimal patient alignment and easy access to surgical sites. They are designed for orthopedic procedures, offering precise positioning and stability. Their ergonomic design allows for efficient positioning. Built with durable materials, they ensure reliability and safety during complex surgeries. Our orthopedic operating table are an essential tool for achieving optimal results in orthopedic surgeries.
