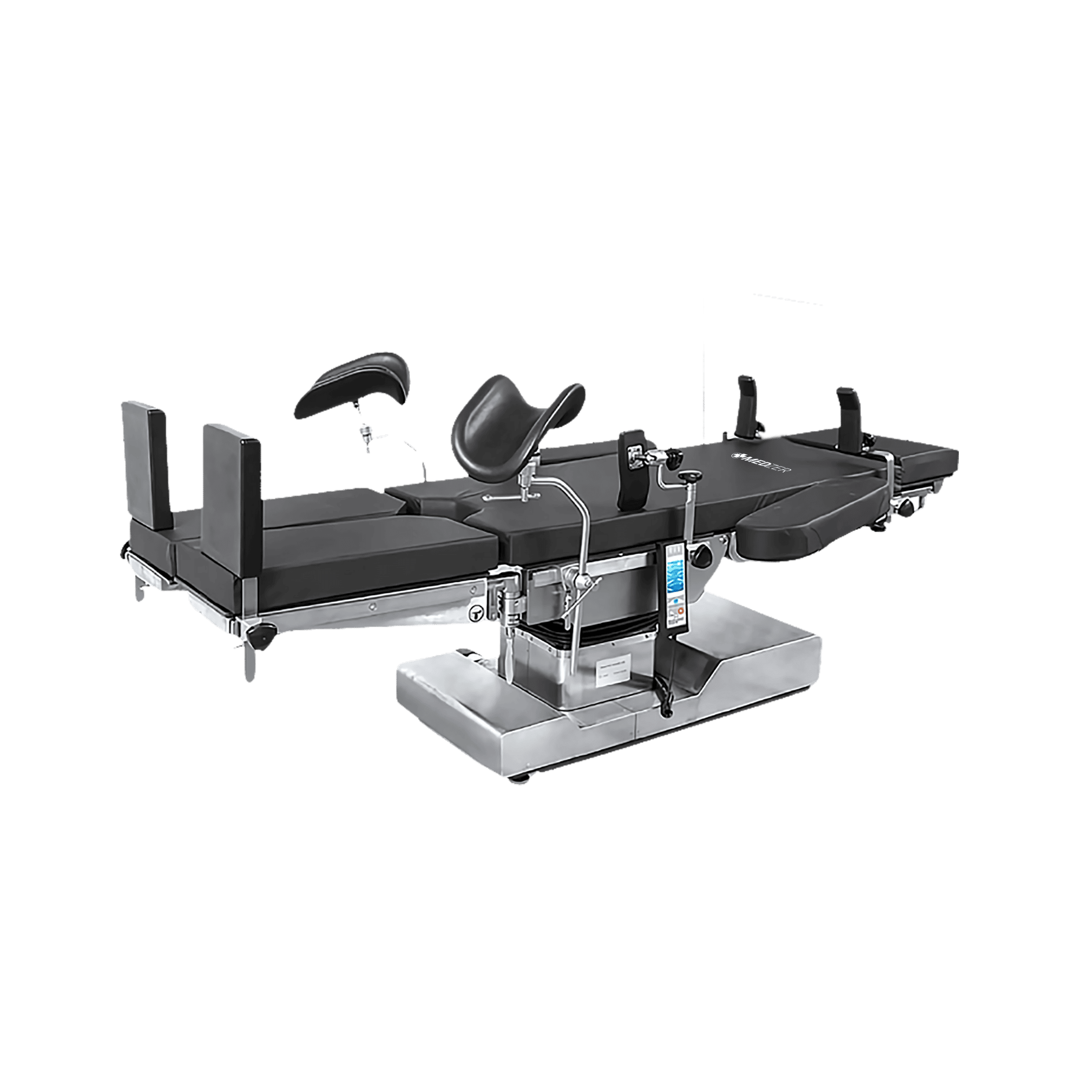

Neurosurgical Operating Table NOT-1000E is a versatile and advanced surgical table with table top 180º rotation function. It is equipped with an electric motor system that enables precise adjustments in height, tilt, and positioning, ensuring maximum comfort for both patients and the surgical team. This surgical table is built with high-quality 304 stainless steel, which is anti-corrosive and can be easily cleaned. Our neurosurgical operating table is ideal for general surgery, orthopaedics, urology, gynecology, and other specialized surgical procedures.
Qty:
Specifications
| Weight Capacity | 250 Kg, 350 Kg for Bariatric Procedures |
|---|---|
| OT Table Actuator | Electro-hydraulic |
| Table Movement Control Mechanism | Remote and table-mounted manual controls, Electro-hydraulic movement via remote and back up panel |
| Remote Controlled Positions | Trendelenburg/Reverse Trendelenburg, Lateral Tilt, Longitudinal Shift, Height Adjustment, Antiflex and Flex Positions, Backplate up/down, Not applicable for manual operation, 0 Position |
| Table Top Height Range | 600 to 950 mm |
| Battery Backup | ≥ 3 hours |
| Tabletop Longitudinal Sliding Range | 320 mm |
| Reverse Trendelenburg | ≥ 20º |
| Trendelenburg | ≥ 15º |
| Lateral Tilt (Left/Right) | ≥ 15º |
| Head Plate (Up/Down) | ≥ 55º/90º |
| Back Plate (Up/Down) | ≥ 89º/35º |
| Leg Plate (Up/Down) | ≥ 15º/90º |
| Leg Plate Outwards | ≥ 90º |
| Kidney Bridge Elevation | ≥ 120 mm |
| Horizontal Sliding | ≥ 320 mm |
| Horizontal Table Rotation | ≥ 180º |
| External Dimension | 2125 × 550 × 950 mm |
Features
Standard Accessories
Applications
