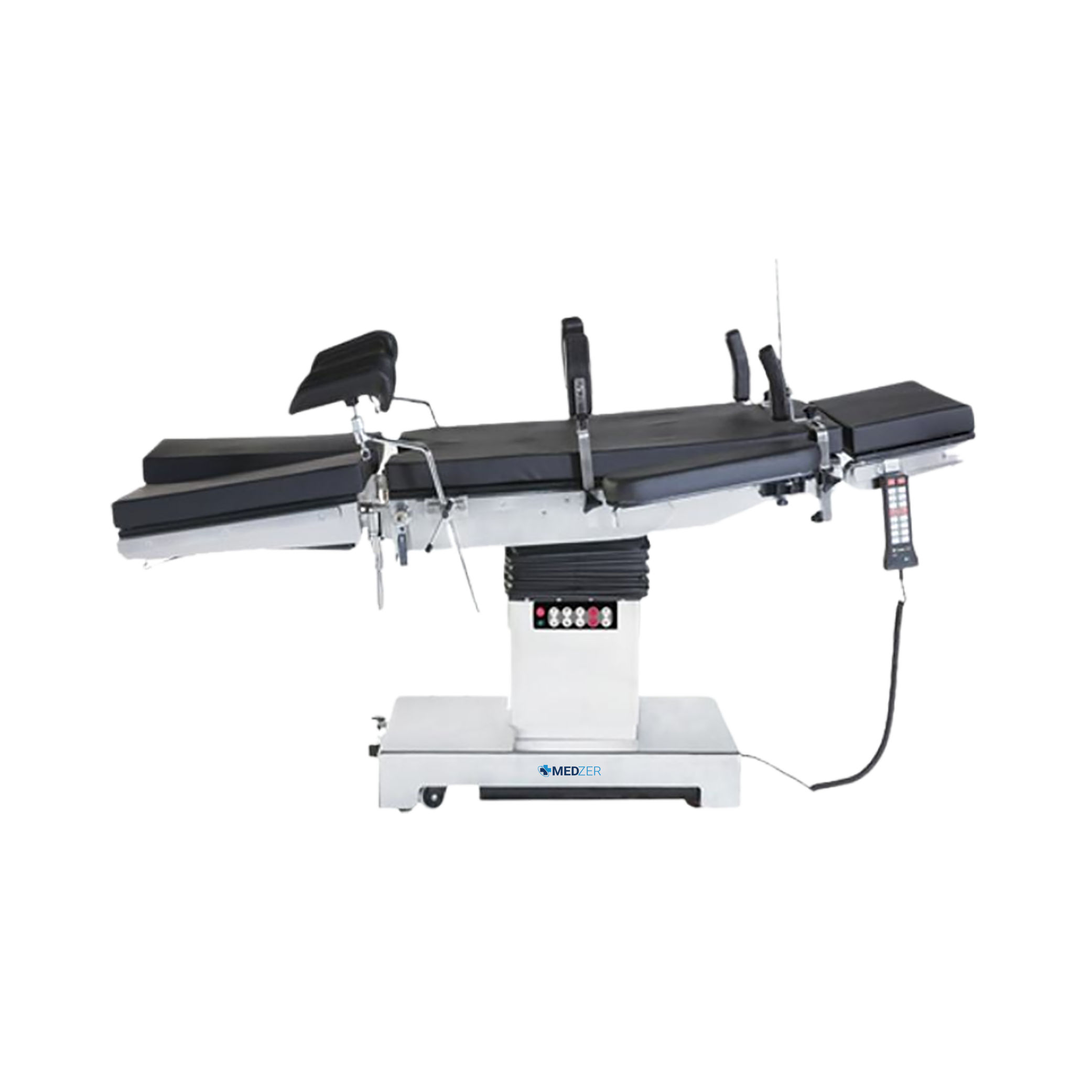

Electro-hydraulic Operating Table EHOT-1000A

Electro-hydraulic Operating Table EHOT-1000A

Name: Electro-hydraulic Operating Table EHOT-1000A
Brand: Ezilab
SKU: EHOT-1000A
Rating: 4.8 (908 reviews)

Electro-hydraulic Operating Table EHOT-1000A has a hydraulic system that enables the precise control of movements and adjustments during surgical procedures. The lateral tilt angle is 20° ± 5°, which facilitates proper positioning of patients. This system uses hydraulic fluid for motion and its sophisticated arrangement of components works together to enable controlled movements.

View Catalog Buy Now

Specifications

Kidney Bridge Height	120mm
Lateral Tilt	20° ± 5°
Back Section	Up 70° ± 5° Down 30° ± 5°
Head Section	Up 60° ± 5° Down 90° ± 5° Outreach 90° ± 5°
Leg Section	Up 20° ± 5° Down 90° ± 5°
Trendelenburg / Reverse Trendelenburg	25° ± 5°
Longitudinal Sliding Movement	320mm
Outreach	90° ± 5°
Dimension	2050×520mm
Height	650 to 1050mm
Weight	270 Kgs

Features

Featured with Dual operational system including manual and column handsets
Integrated with a manual headboard/ leg section/kidney bridge
Incorporated with detachable surgical accessories
Designed with T shape base made of SS304 material
Upgraded with electro-hydraulic elevation, sliding movement
Advantageous with zero position function
Enhanced with an electric lock system

Standard Accessories

Shoulder Support: 2pcs

Waist Support: 2pcs

Arm Support (Arm Boards): 2pcs

Leg Support (Knee Crutch Stirrups): 2pcs

Anesthetic Frame (Curtain Stand): 1pc

Manual / Column Remotre: 1pc

Mattress: 1set

Storage Battery : 1set

Clamp: 9pcs

Body Strap: 5pcs

Applications

Compatible with hospital C-arm, is crucial for various surgical procedures, including those related to head, limbs, ENT (Ear, Nose, and Throat), and orthopedic surgery. Used in Diagnostic Imaging Tables, Hospital Beds, Endoscopy Equipment, Laboratory Euipments.

Buy Now :- Electro-hydraulic Operating Table EHOT-1000A
