Equipped with microcomputer controller and safety lock key with wired Mini touch controller
Equipped with Backward and forward movement ≥ 300 mm
Configurable built-in kidney bridge
Translational longitudinally more than 300mm to rotate C-arm freely with X-ray translucent tabletop
Five sections: the head board, the shoulder board, the back board, the sitting board and the leg board

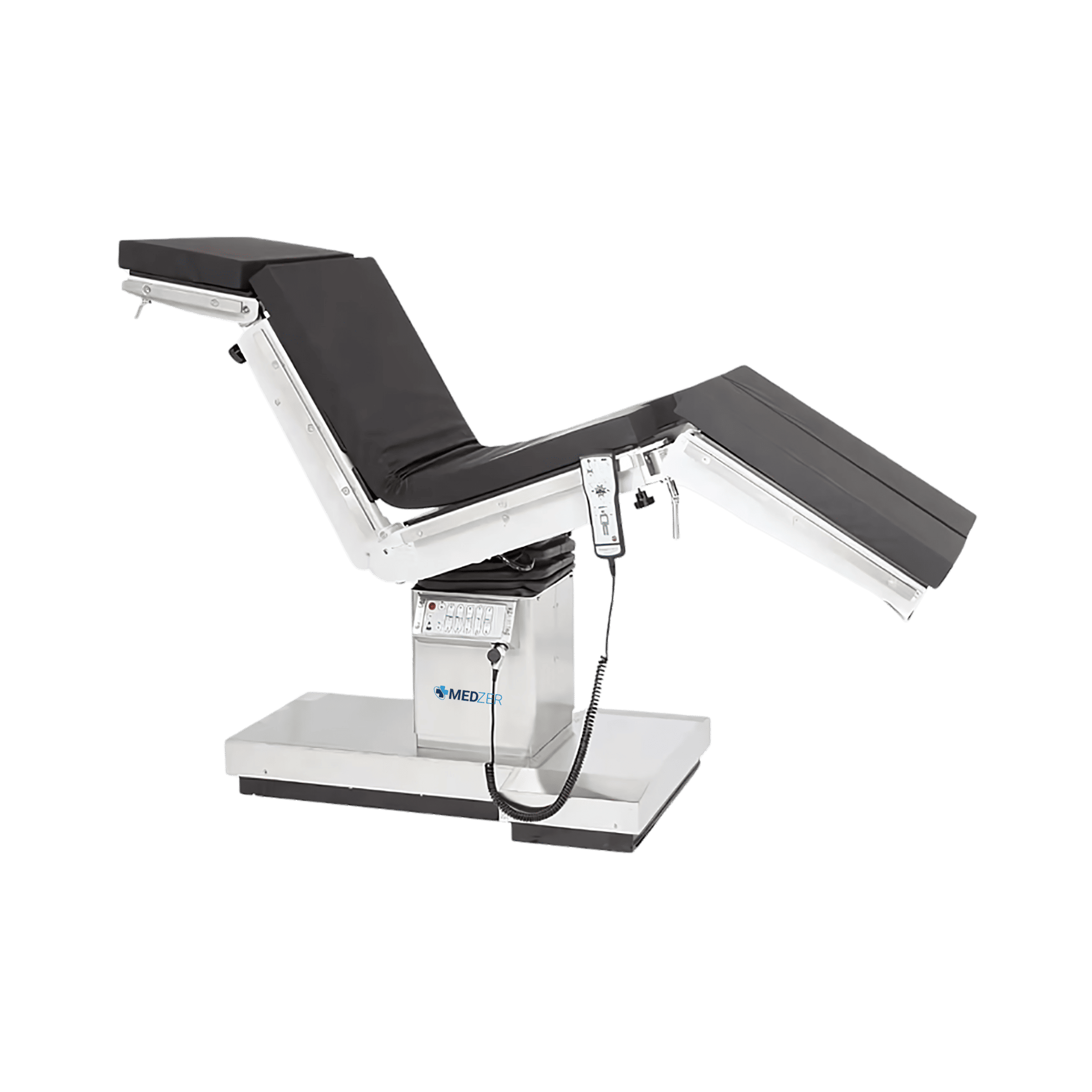

Equipped with shoulder-back composited bending button
Corrosion resistant stainless steel guide rails and accessories
Qty:
Specifications
| Table size | 2120 mm × 550 mm |
|---|---|
| Lifting table | 705 mm - 1050 mm |
| Tabletop lean forward | ≥ 30° |
| Tabletop lean backward | ≥ 30° |
| Tabletop lean left | ≥ 15° |
| Tabletop lean right | ≥ 18° |
| Leg board folding up | ≥ 10° |
| Leg board folding down | ≥ 90° |
| Leg board open | 90° can be removed |
| Backboard folding up | ≥ 72° |
| Backboard folding down | ≥ 15° |
| Head board folding up | ≥ 58° |
| Head board folding down | ≥ 90° |
| Kidney bridge elevation | ≥ 110 mm |
| Longitudinal movement | 300 mm |
Features
