Medical Equipment Expert
7-inch display screen
High-resolution and TFT colour display
Biphasic waveform technology
Standard built-in Recorder, Defibrillation discharge trigger recording
The ECG waveform via paddle electrode
Specifications
| Energy selection | 0, 3, 5, 7, 10, 20, 30, 50, 100, 200, 300, 360 J |
|---|---|
| Charging time | Less than 10 seconds to 360 Joules |
| Display | 7 inch LCD display High-resolution display, TFT colour display |
| ECG | 3-lead ECG or 5-lead ECG Lead: I, II, III, AVR, AVL, AVF, V ECG: 2.5,5, 10, 20, 30 mm/mV display on monitor HR: 20 bpm ~ 350 bpm |
| Sweep Speed | 12.5/25/50 mm/sec |
| SpO2 | 30 % – 100 % |
| Power supply | AC-DC dual-use: Use the batteries,AC 100 V ~ 240 V,50/60 Hz. Vehicle Voltage(Option): DC 12V |
| Alarm | Alarm range: User set high limit and low limit Alarm accuracy: ±10% within setting values Alarm time accuracy: less than 12 sec Smart alerting: Beeper/voice prompts indicate shock able rhythm |
| Battery | Li-ion battery Li1104c 11.1Vdc 4000mAh X2 Standard Capacity: Up to 10 hours ECG monitoring or 60 full-energy discharges. Low Battery Indicator: Flashing low battery icon on display Recharge Rate: 80% in 3 hours. 100% in 5 hours. |
| Dimensions | 320 x 205 x 410 mm |
| Weight | 7.5 Kgs |
Features
7-inch display screen
High-resolution and TFT colour display
Biphasic waveform technology
Standard built-in Recorder, Defibrillation discharge trigger recording
The ECG waveform via paddle electrode
Heart Rate, Lead, Alarm On/Off, Delivered Energy Displayed on a screen
Standard Li-ion battery
SPO2 is ok to add

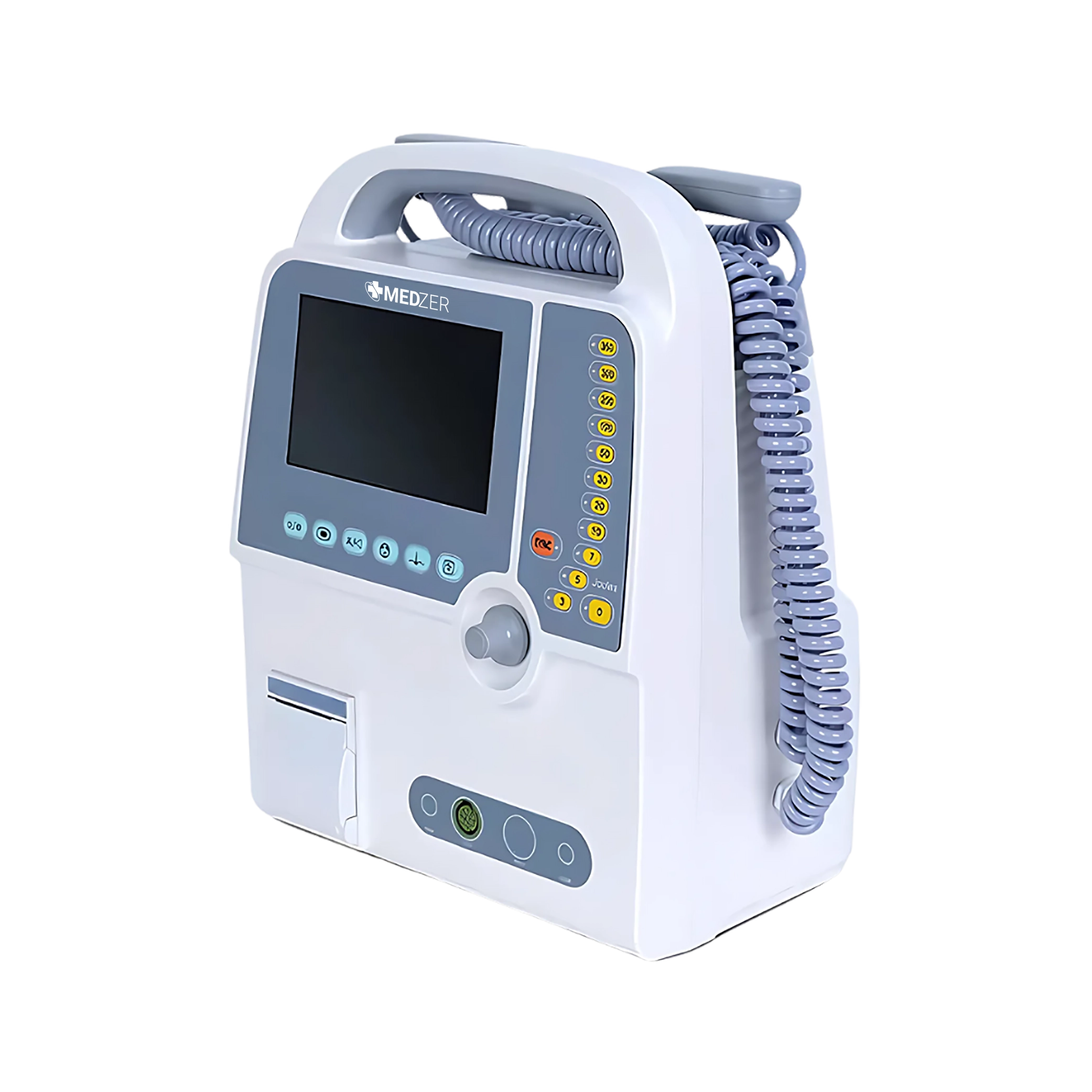

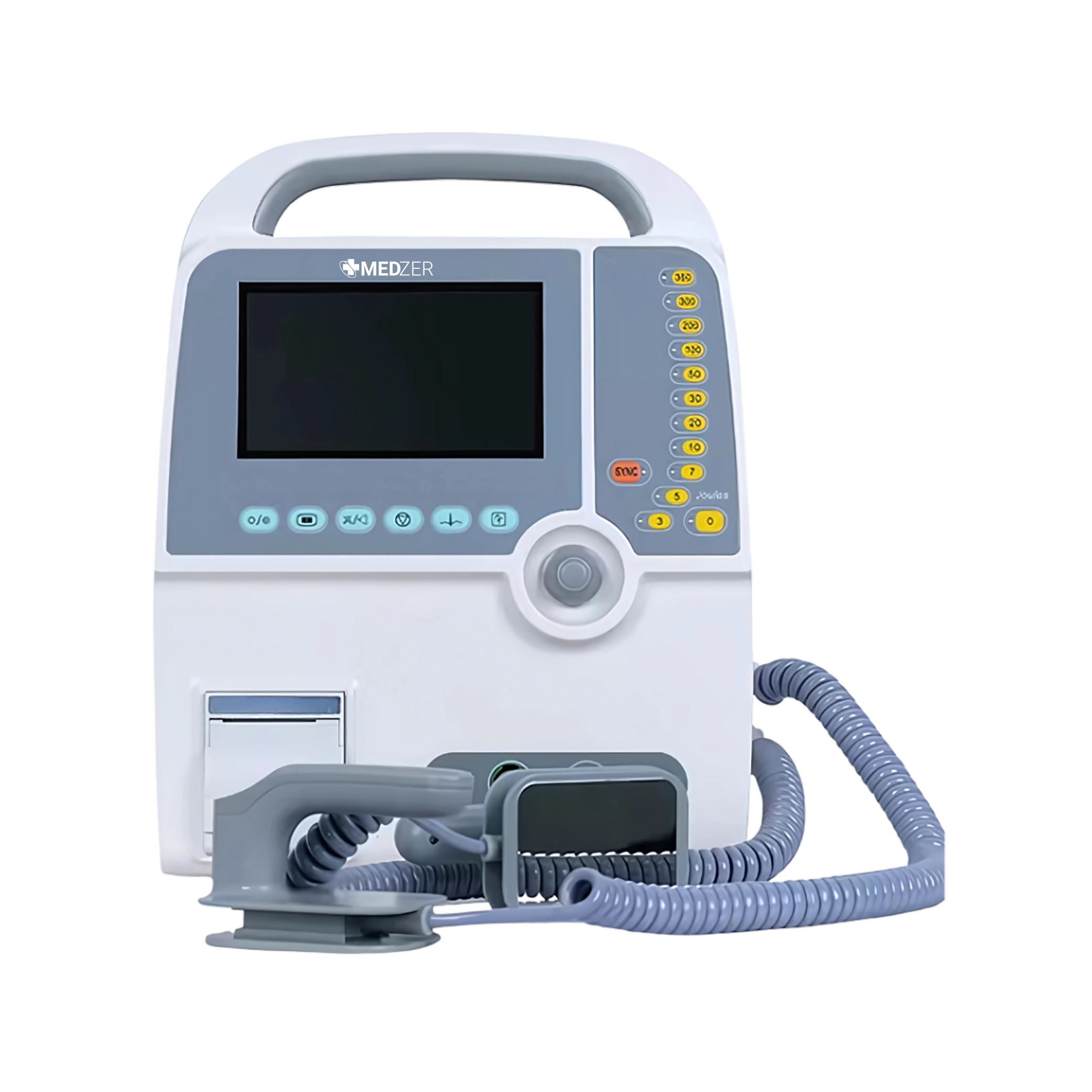

Medzer Biphasic Defibrillator feature a high-resolution display screen for clear monitoring during emergencies. They offer versatile defibrillation modes including manual, synchronized, and asynchronous options. The advanced biphasic waveform technology enhances the effectiveness of shock delivery, increasing the chances of restoring normal heart rhythms. Compact and user-friendly, our biphasic defibrillator are designed for rapid response in critical situations.
