Medical Equipment Expert
Defibrillator type: Manual, Synchronized, Asynchronized
Sine wave: monophasic technology
Durable and handy design
Charging time : 360J less than 10 sec
Paddle options : reusable external pads
Specifications
| Energy selection | 0, 3, 5, 7, 10, 20, 30, 50, 100, 200, 300, 360 joules (nominal at a resistance of 50) |
|---|---|
| Charging time | Maximum 10 seconds to 360 Joules |
| Energy accuracy | < +1% |
| Analysis time | 9 sec |
| Display | 7-inch LCD display High resolution, true-color graphic |
| ECG | ECG lead: Ⅰ, Ⅱ, Ⅲ, AVR, AVL, AVF, V1～V6 S-T segment analysis: -2.0～2.0mv Arrhythmia analysis: yes |
| Respiration | Measurement method: Thoracic impedance |
| Parameters | ECG/ RESP/DEFIBRILLATOR |
| Audible prompts | 20 audible prompts |
| Power supply | AC Power supply: 100V~240V,50Hz/60 Hz |
| Battery | Type: Rechargeable lead-acid battery (12V 2.0Ah X2) Charging time: Time-Minimum of 4 hours for full charging Battery charging: During AC Power Supply operation of the device. Charging /Low Battery Indication: Red LED Battery Capacity: 100% of the battery will provide 120-min monitoring; and 30 discharges at 360 joules. |
| Dimensions | 320 × 205 × 410 mm |
| Weight | 9.5 kgs |
Features
Defibrillator type: Manual, Synchronized, Asynchronized
Sine wave: monophasic technology
Durable and handy design
Charging time : 360J less than 10 sec
Paddle options : reusable external pads

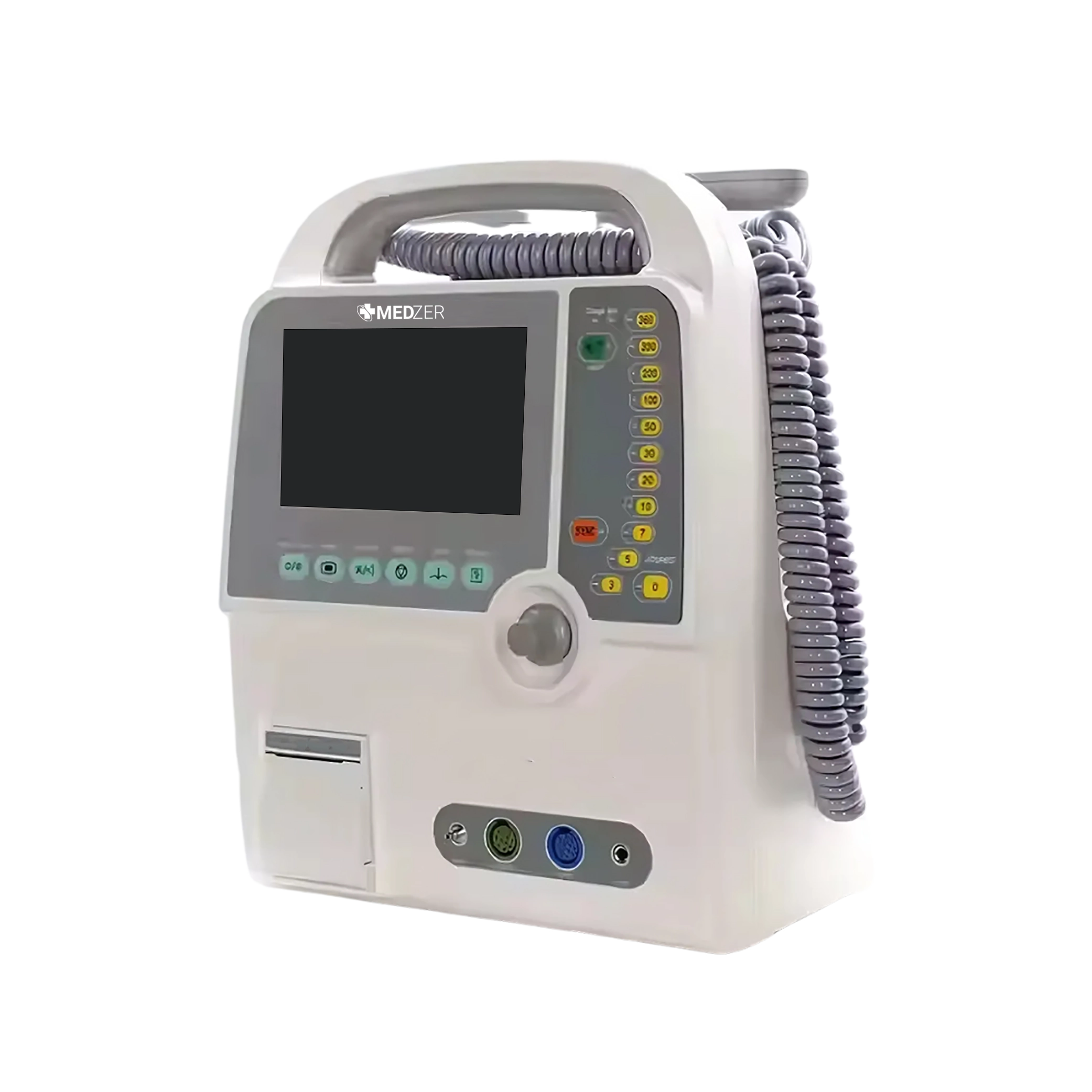

Medzer Monophasic Defibrillator are engineered for effective cardiac emergency responses. They offer versatile defibrillation modes, including manual, synchronized, and asynchronous options. The clear display provides essential information at a glance, enhancing usability during emergencies. Compact and efficient, our monophasic defibrillator are ideal for both healthcare professionals and public access settings.
