Defibrillation : Manual, Synchronized and Asynchronous
High resolution true-color graphic display screen
Rechargeable battery backup with indicator
12 lead ECG / RESP Measurement
Specifications
| Energy selection | 0, 3, 5, 7, 10, 20, 30, 50, 100, 200, 300, 360 joules (at 50 Ω) |
|---|---|
| Charging time | Maximum 10 seconds to 360 Joules |
| Energy accuracy | < +1% |
| Display | 10.4-inch LCD |
| ECG | Lead: Ⅰ, Ⅱ, Ⅲ, AVR, AVL, AVF, V1~V6 With stand 4000 V AC / 50 Hz voltage in isolation and work against electrosurgical knife and defibrillation |
| NIBP | Mode: Manual/Automatic/Stat Method: Automatic oscillation Cuff type: standard Adult; optional Pediatric/Neonatal |
| TEMP | Range: 20℃ ~ 45℃ Resolution: 0.1℃ |
| SpO2 | Parameter: SpO2 value, pulse histogram, waveform, pulse Range: 0% ~ 99% for adult, pediatric and neonatal patients Probe: Standard adult finger clip, pediatric Y-type clip and neonatal wrap (optional) |
| PR | Range : 0bpm ~ 255bpm |
| Power supply | 100 V ~ 240 V, 50 Hz / 60 Hz Vehicle voltage: DC 12 V (optional) |
| Battery | Rechargeable lead-acid battery (12V 2.0Ah X2) Capacity: 100% of the battery will provide 120-min monitoring; and 35 discharges at 360 joules Charging: Minimum of 4 hours for full charging ; LED indicator for charging status |
| Dimensions | 410 × 360 × 260 mm |
| Weight | 12 kgs |
Features
Defibrillation : Manual, Synchronized and Asynchronous
High resolution true-color graphic display screen
Rechargeable battery backup with indicator
12 lead ECG / RESP Measurement

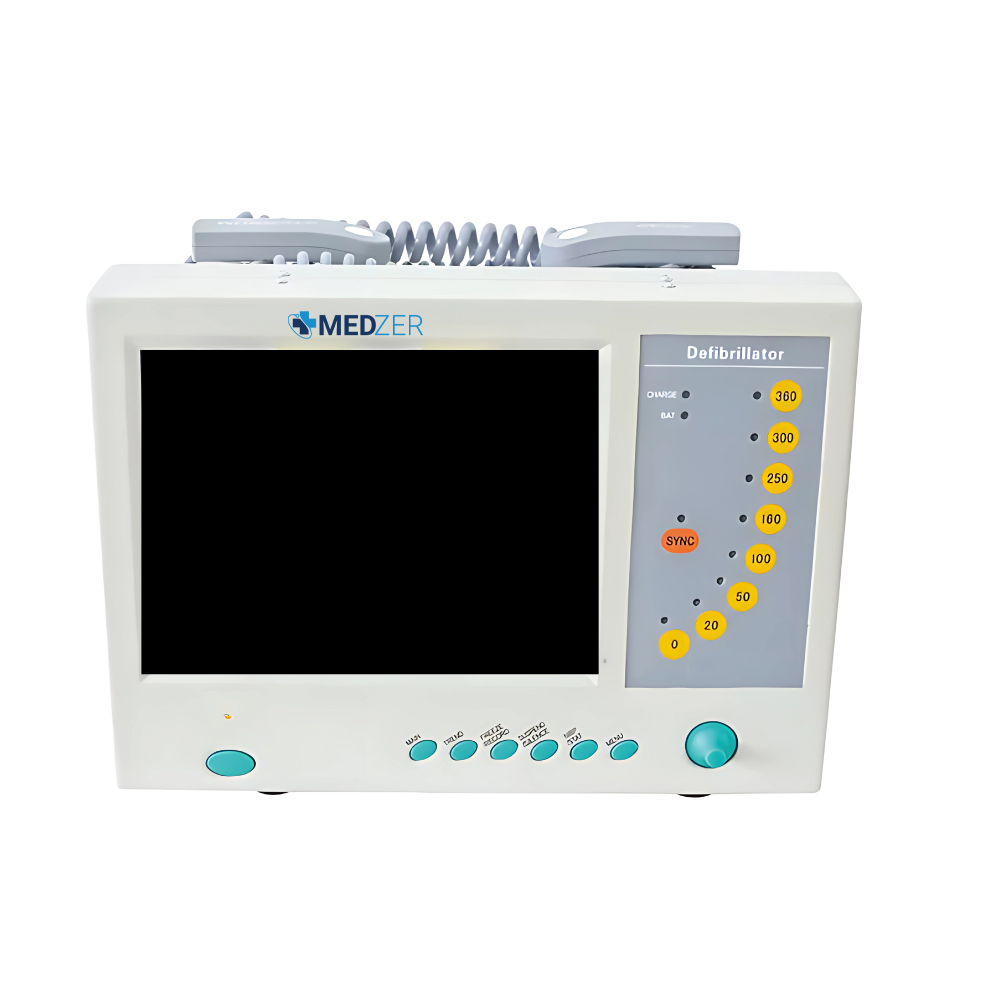

Medzer Biphasic Defibrillator feature a high-resolution display screen for clear monitoring during emergencies. They offer versatile defibrillation modes including manual, synchronized, and asynchronous options. The advanced biphasic waveform technology enhances the effectiveness of shock delivery, increasing the chances of restoring normal heart rhythms. Compact and user-friendly, our biphasic defibrillator are designed for rapid response in critical situations.
