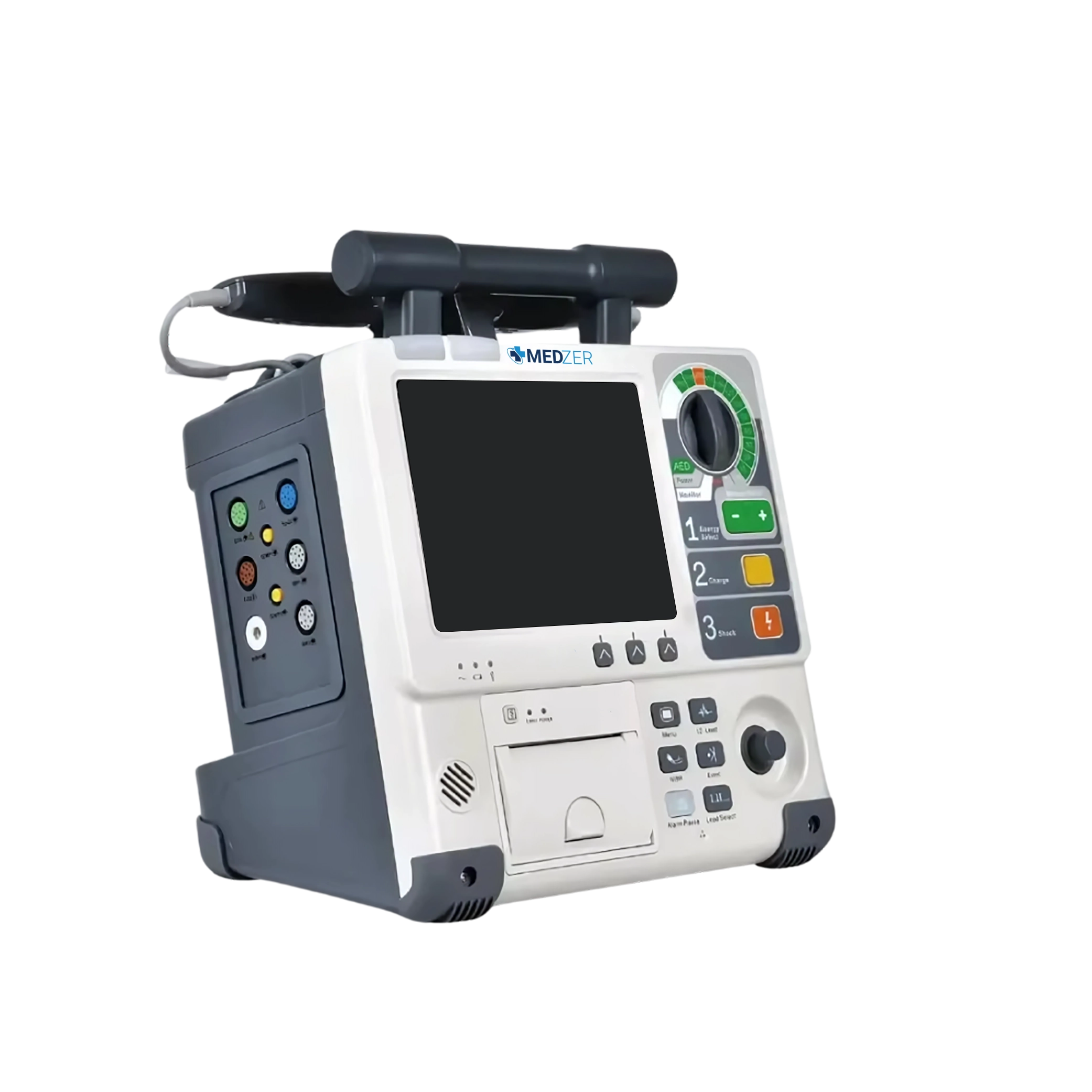

Semi-automated External Defibrillator BAED-1000E offers six waveforms for a 12-lead ECG in a resolution of 800 × 600. Powered by Rechargeable Lithium-ion batteries, providing flexibility in its use without access to electrical outlets. Our defibrillator is designed with Manual Mode, AED Mode, and Synchronous defibrillation capabilities, enhancing its adaptability in critical situations. It has an optional monitoring mode that tracks patients' vital signs continuously and includes SpO₂, NIBP, PR, and EtCO2.
Specifications
| Waveforms | 5 waveforms 6 waveforms for 12-lead ECG |
|---|---|
| Resolution | 800 × 600 |
| Operating Temperature | 0 to 45℃ |
| Operating Humidity | 10 % to 95 %, non-condensation |
| Atmospheric Pressure | 570 hpa to 1060 hpa |
| Pacing Output | 60 mA |
| Screen Size | 8.4” TFT Screen |
| Brightness | Manual from 1 to 100 |
| Ingress Protection | IP44 |
| Defibrillation Mode | Allows for up to 420 discharges |
| Interface | USB interface RJ45 interface AC power input VGA interface Multi-functional connector |
| Battery Type | Rechargeable Lithium-ion battery |
| Battery Capacity | 5000 mAh, dc.14.4V, 7500 mAh, d.c.14.8V |
| Battery Number | 2 |
| Battery Recharging | Less than 1.5 hours to 80% |
| Battery Charge Time | less than 2.5 hours to 100% with equipment power off (500 mAh) |
| Power Supply | 100 to 240 V 50/6 0Hz |
| Dimension | 323 ×277 × 338 mm |
| Weight (Without Battery) | 6.55 kg |
| Weight (With Paddles) | 7.2 kg |
| Weight (With Paddles and Battery) | 7.9kg |
Features
Compact and lightweight
Streamlined and easy-to-learn three-step defibrillation process
Waveform characterized by a biphasic truncated exponential pattern
Monitor for a maximum of 12 hours
Display dimensions 8.4 inches TFT screen
Easily switch between modes using a simple knob
Signs include two alarm indicators, a power indicator, a battery indicator, etc.
Optional Accessories
Applications
AED Device are equipped with advanced algorithms that assess the heart's rhythm and determine whether shock is necessary. They often include rechargeable batteries, high visibility displays, and pre-connected electrode pads that adhere to the patient's chest. These compact, portable devices typically feature a user-friendly interface with clear visual and audio prompts. They offer data storage capabilities to record incidents for later analysis. Most models are lightweight, making them easy to transport and deploy in emergency situations. Our rugged, weather-resistant AEDs enhance survival in critical situations across public spaces and healthcare facilities.
