Multi-para Bedside Monitor MPPM-1000J

Name: Multi-para Bedside Monitor MPPM-1000J
Brand: Ezilab
SKU: MPPM-1000J
Rating: 4.9 (701 reviews)

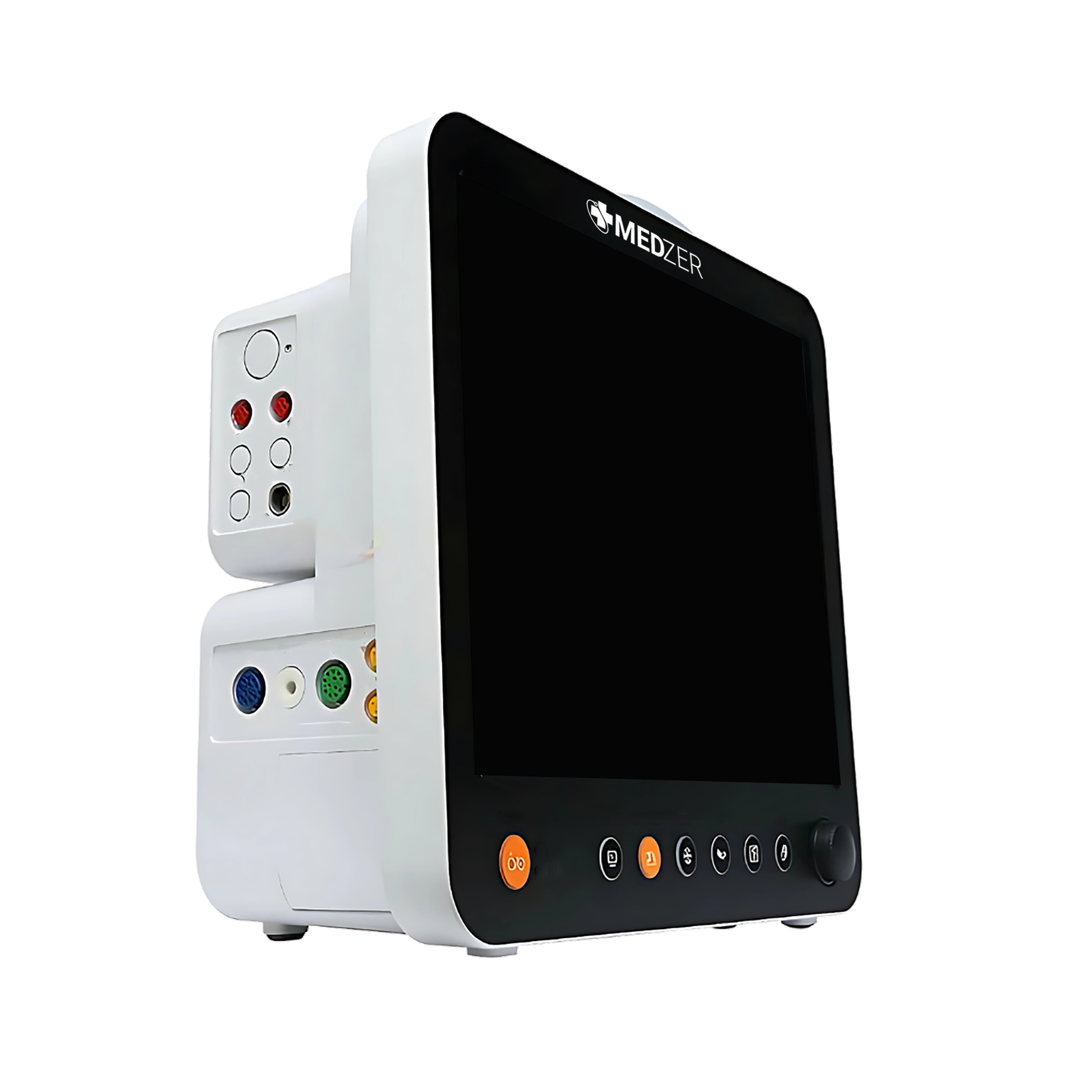

Multi-para Bedside Monitor MPPM-1000J is a high-resolution monitor designed with the capability of monitoring seven distinct parameters such as ECG, SpO2, Respiration, NIBP, Dual Temperature, Dual IBP, and ETCO2. Furnished with 12-lead ECG that supports 3/5/6/10 multiple electrode connections. Assembled with 12.1-inch-high resolution touchscreen display, that meets user-friendly requirements. Equipped with extended modules like Cerebral State Monitoring (CSM), InsCO2.

View Catalog Buy Now

Specifications

ECG	±0.5mVp to 5mVp, ≥10MΩ, Diagnostic: 0.05 to 150Hz, Monitoring: 0.5 to 40Hz, Operation: 1 to 20Hz, Diagnostic: ≥90dB, Monitoring & Operation: ≥105dB, ×1/4, ×1/2, ×1, ×2, ×4 and auto, 6.25mm/s, 12.5mm/s, 25mm/s, 50mm/s, 15 to 350 bpm, ±1% or ±2 bpm
Respiration	0 to 120 rpm, ±5% or ±2 rpm
SpO2	Dual-wavelength optical method, 0% to 100%, 70 to 100%, 30 to 250 bpm, ±2 bpm or ±2%, <0.3%
NIBP	Oscillometric method, Adult cuff: <30 seconds, Adult: 40 to 275 mmHg, Paediatric: 40 to 200 mmHg, Neonate: 40 to 135 mmHg, Adult: 10 to 210 mmHg, Paediatric: 10 to 150 mmHg, Neonate: 10 to 95 mmHg, Adult: 20 to 230 mmHg, Paediatric: 20 to 165 mmHg, Neonate: 20 to 110 mmHg, Mean difference: ±5 mmHg, Standard deviation: 8 mmHg; Manual, Auto, STAT, Multi-cycle mode, 1 to 480 minutes
Temperature	0℃ to 50℃, ±0.1℃
IBP	Strain gauge transducer, -50 to 300mmHg, ±2% or ±4 mmHg, ART, RAP, PA, LAP, CVP ICP, AUXP1, AUXP2, Zero calibrating
CO2	Infrared optical method, Side stream or Mainstream, 0 to 150 mmHg, 0 to 40 mmHg: ±2 mmHg; 41 to 70 mmHg: ±5%; 71 to 100 mmHg: ±8%; 101 to 150 mmHg: ±10%, 50 ml/min ±10 ml/min (Side stream)
Display	12.1-Inch TFT LCD
Parameters	ECG, SpO2, Respiration, NIBP, Dual Temperature, Dual IBP, and ETCO2
Alarming Method	3 levels audible-visible alarm
Networking	Ethernet
Battery	Built-in Lithium battery 11.1V/4400mAh
Power Supply	240V, 50Hz
Packaging Dimensions	500×320×460 mm
Net Weight	5.2 Kg
Gross Weight	9.2 Kg

Features

Provided ample screen is helpful to display up to 12 leads of ECG
Allowed to export data to CIS or HIS by HL7 protocol
Embedded to display minimum 9 waveforms on-screen and maximal up to 13 waveforms
Fitted with “Nellcor Oximax” technology for SpO2 measurement during motion and low perfusion conditions
Modified to store up to 2000 hours of trend data including 12000 groups of NIBP records, 2000 groups of alarm events, up to 140 hours of ECG waveform
Facilitated with audio and visible alarms, improves the functioning of the machine
Distributed with high quality wall mounting bracket
Ability to measure user customized NIBP cycles up to 5-phase
Bounded to give comprehensive calculations for versatile clinical calculations
Featured with capacitive touch screen, simple and convenient to operate
Small and easy to carry

Standard Accessories

ECG Cable (5 Lead or 3 Lead) 1 quantity

Blood Pressure Cuff (Adult) 1 quantity

Adult SpO2 Sensor 1 quantity

Extension Cable 1 quantity

Skin Temperature Probe 1 quantity

ECG Electrodes 10 quantities

Power Cord (110V or 220V) 1 quantity

Grounding Cable 1 quantity

Lithium Battery 1 quantity

User Manual 1 quantity

Applications

It is generally used to measure collective parameters such as pulse rate, respiration rate, SpO2, NIBP, temperature, IBP, CO2 in hospital wards, ICU, operating room, and ambulance.
