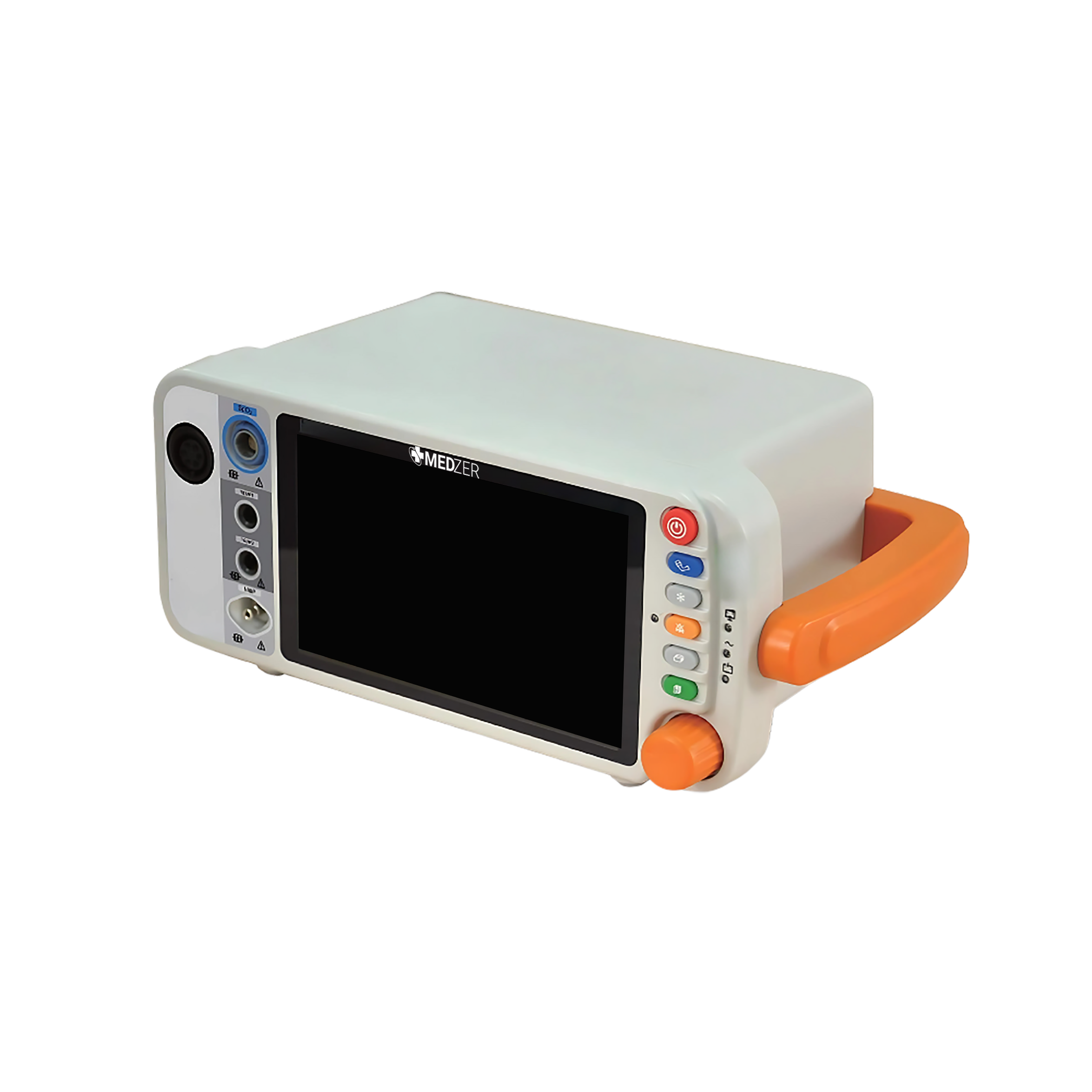

Vital Sign Monitor VSM-1000A

Vital Sign Monitor VSM-1000A

7-inch screen

4 parameter vital sign monitoring

Patient demographic storage

Continuous monitoring

Auto power off function for saving battery life

Specifications

Display 7 inch LCD Display
Resolution: 800 x 480 pixels.
ECG Lead mode: 5 leads (RA, LA, RL, LL, V)
Lead selection: I, II, III, V, AFL, AVL, AVR
ECG waveform: 1 or 3 channels
Sweep speed: 6,25 mm/sec, 12,5 mm/sec, 25 mm/sec, 50 mm/sec
Gain selection: 0,25, 0,5, 1, 2, and (mm/mv), auto
Heart rate range: 20 - 350 bpm
NIBP Range of Systolic: 40 – 270 mmHg
Range of Diastolic: 20 – 200 mmHg
MAP: 30 – 220 mmHg
Maesurement time: 30 sec – 50 sec typical, 120 sec maximum
Alarm range: 20 – 260 mmHg (1 mmHg steps), and OFF
PR Range: 30 – 250 bpm
Resolution: 1 bpm
SpO2 Range: 0 – 100%
Accuracy: ±2 at 70 – 100%
Resolution: 1 %
Respiration Measurement range: 0 ~ 120 breath/min
Accuracy: ±1 breath/min
Resolution: 1 breath/min
Batteries Full charging time ~ 3 hours
Operating time ~ 5 hours
Power consumption 35 W
Alarms ECG: High/Low: 20-350 bpm and off
NIBP: 25- 250 bpm, ± 2% or ± 3 bpm
RESP: High/Low: 0-120 bpm (1 bpm steps) and off
SpO2: High/Low: 50 ~ 100% and off
Dimensions 300 × 180 × 129 mm
Weight 2 kgs

Features

7-inch screen

4 parameter vital sign monitoring

Patient demographic storage

Continuous monitoring

Auto power off function for saving battery life

Audible and visible alarms

Long battery life

Suitable for adult, paediatric and neonatal patients

Request Quote for Vital Sign Monitor VSM-1000A
