Real-time infused volume
Automatic power switching
Memory log management
Purge and Bolus
Specifications
| Flow Rate | 1ml/h ~ 2000 ml/h (in 1,5,1 ml/h increments) |
|---|---|
| VTBI | 1 ~ 9999 ml(in 1,5,1 ml/h increments) |
| Purge | 600 ~ 2000 ml/h(in 1,5,1 ml/h increments) |
| Bolus | 600 ~ 2000 ml/h(in 1,5,1 ml/h increments) |
| Pumping Mechanism | Curvilinear peristaltic |

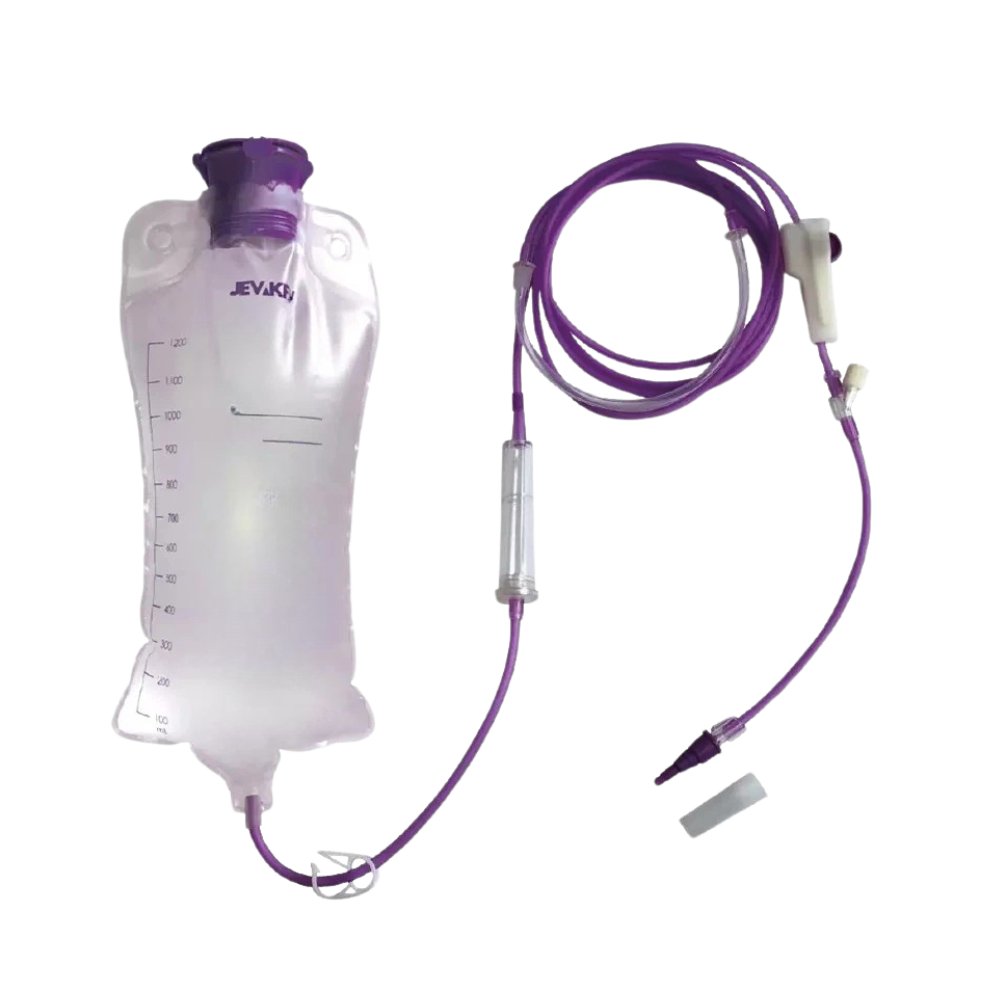

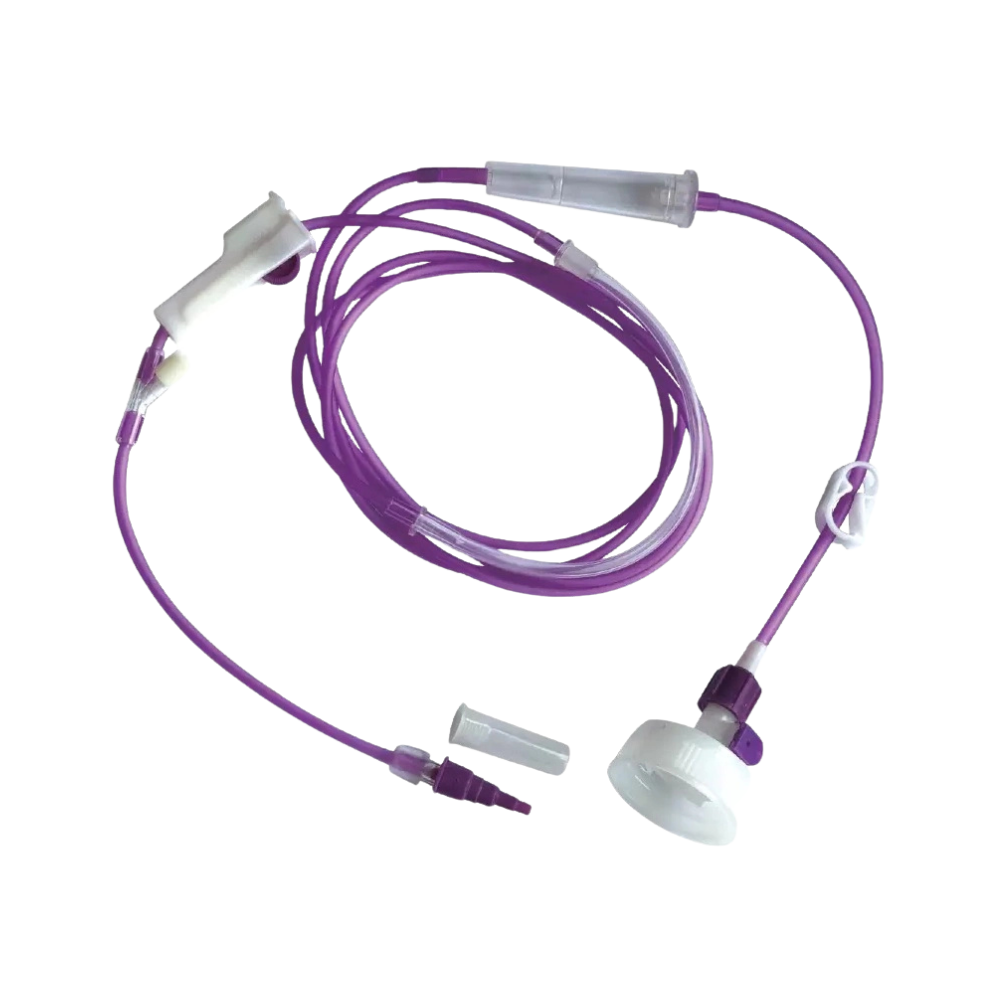

| IV Set | Standard enteral feeding set with silicon tube |
| Memory | 30 days |
| Accuracy | ±5% |
| Alarms | Occlusion, air-in-line, door open, end program, low battery, end battery, AC power off, motor malfunction, system malfunction, reminder alarm, tube dislocation |
| Occlusion Sensitivity | High, Medium, Low |
| Air-in-line Detection | Ultrasonic detector |
| Vehicle Power | 12V(Ambulance) |
| Power Supply, AC | 110/230V (optional), 50-60 Hz, 20VA |
| Battery | 10.8 V, rechargeable |
| Battery Life | 8 hours at 100ml/h |
| Working Temperature | 10℃ ~ 30℃ |
| Relative Humidity | 30% ~ 75% |
| Atmospheric Pressure | 860hpa ~ 1060 hpa |
| Dimensions | 150 × 120 × 60 mm |
| Weight | 1.5 kgs |
| Optional | Wireless data module Fluid warmer: 30-40℃,in 1℃ increment with over temperature alarm |
Features
