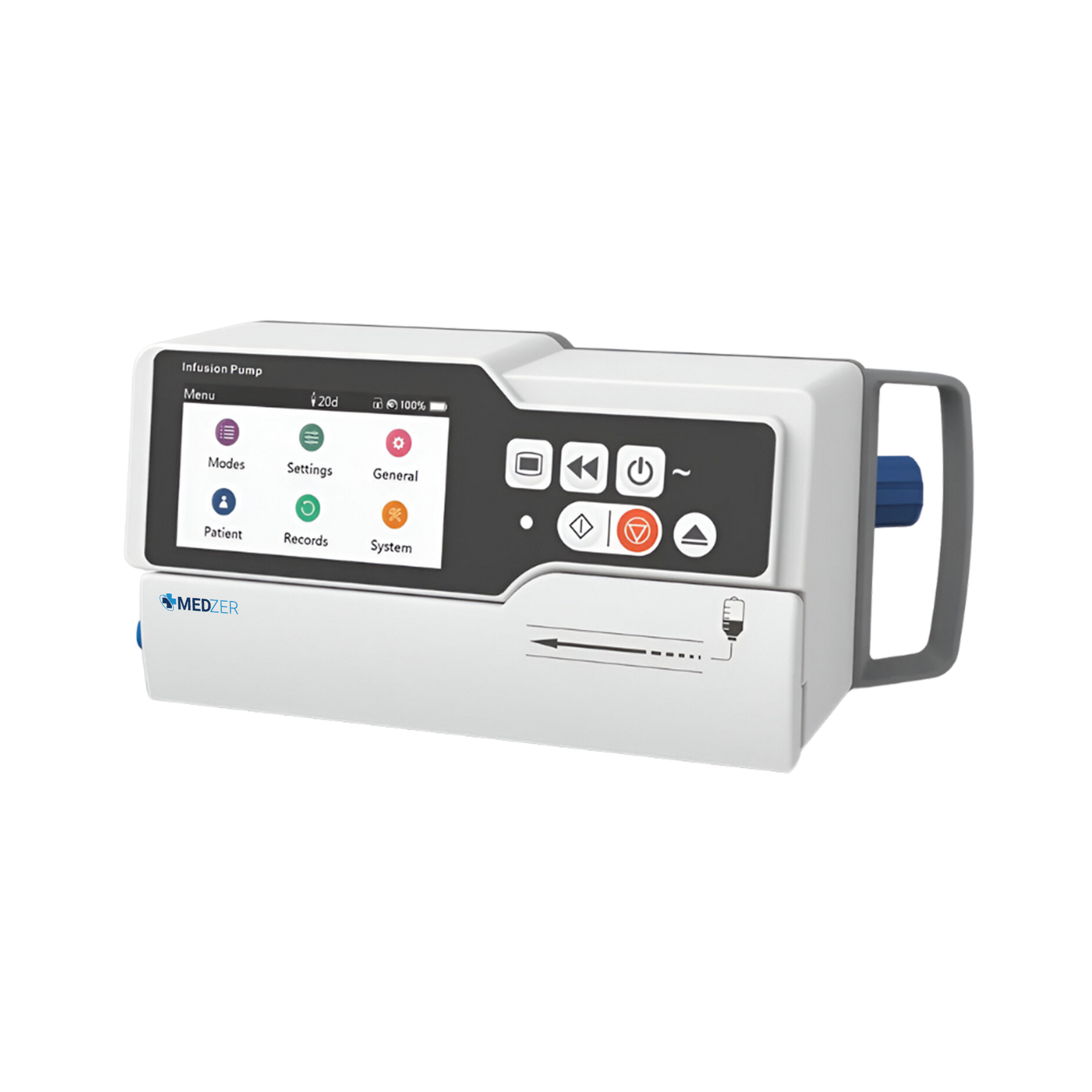

Volumetric Infusion Pump VIP-1000A

Volumetric Infusion Pump VIP-1000A

Real-time infused volume

Bolus rate and bolus volume

KVO rate

Automatic power switching

Purge, bolus facility

Specifications

Flow Rate 0.1ml/h ~ 1500 ml/h (in 0.1 ml/h increments)
VTBI 1 ~ 9999 ml
Purge 100 ~ 1500 ml/h (in 1 ml/h increments)
Bolus 100 ~ 1500 ml/h (in 1 ml/h increments)
Pumping Mechanism Curvilinear peristaltic
IV Set Compatible with IV sets of any standard
Infusion Mode Ml/h, drop/min, time-based
Bolus Volume 1-20 ml (in 1 ml/h increments)
Accuracy ±3%
KVO Rate 0.1-5 ml/h (in 1 ml/h increments)
Alarms Occlusion, air-in-line, door open, end program, low battery, end battery, AC power off, motor malfunction, system malfunction, reminder alarm
Occlusion Sensitivity High, Medium, Low
Safety Classification Class I, type CF
Air-in-line Detection Ultrasonic detector
Power Supply, AC 110/230V (optional), 50-60 Hz, 20VA
Battery 9.6 ± 1.6V, rechargeable
Battery Life 5 hours at 30 ml/h
Working Temperature 10℃ ~ 40℃
Relative Humidity 30% ~ 75%
Atmospheric Pressure 700 hpa ~ 1060 hpa
Dimensions 174 × 126 × 215 mm
Weight 2.5 kgs
Optional Wireless data module

Features

Real-time infused volume

Bolus rate and bolus volume

KVO rate

Automatic power switching

Purge, bolus facility

Request Quote for Volumetric Infusion Pump VIP-1000A
