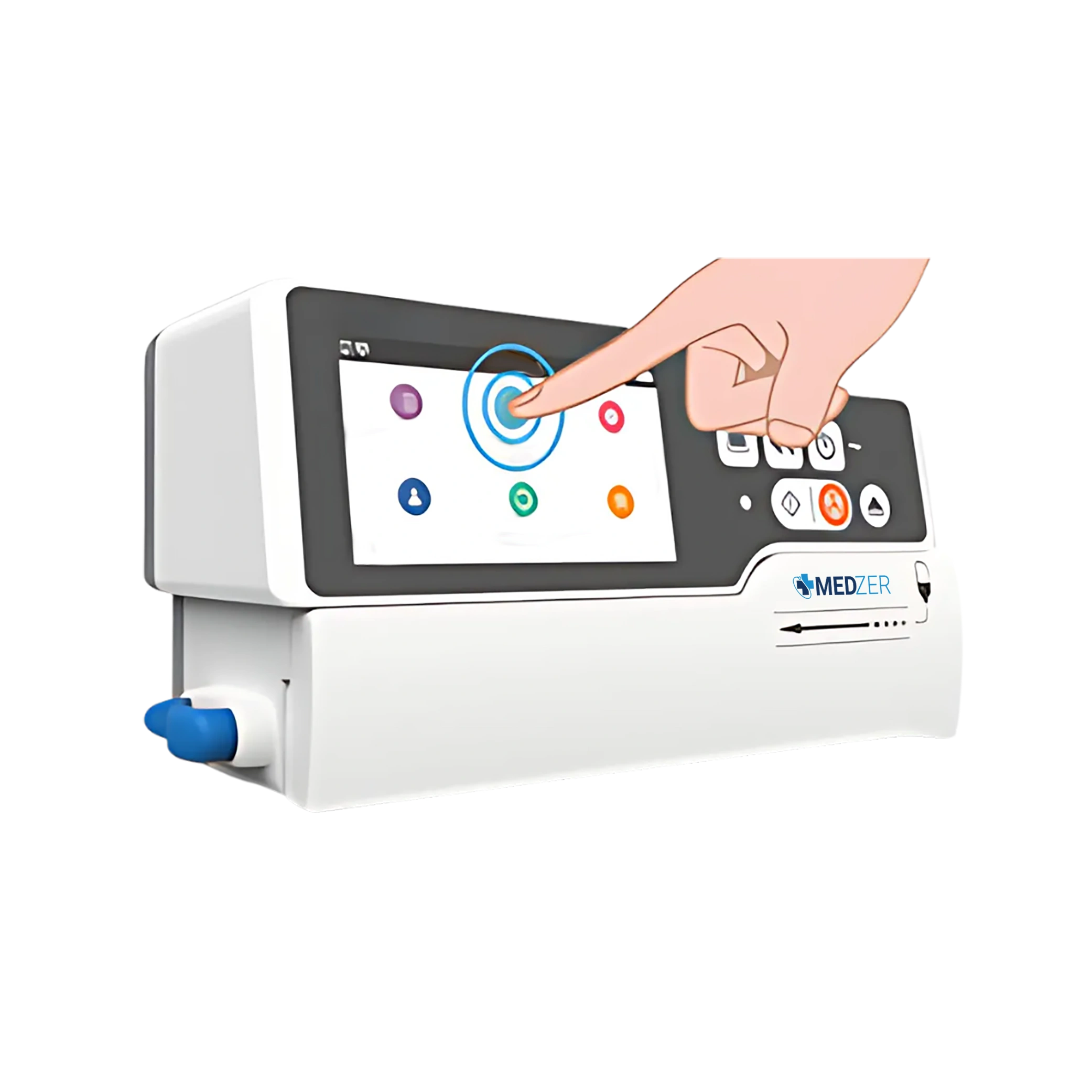

Multi-Channel Infusion Pump MCIP-1000A offers ±5% accuracy with a wide flow range (0.01–999 mL/h). This infusion pump also offers micro-rate adjustments (0.01 mL/h increments) for sensitive therapies. It independently manages multiple infusion therapies simultaneously for efficient, flexible treatment. The pump automatically reduces pressure spikes post-occlusion to minimize patient discomfort. Our MCIP-1000A is ideal for hospitals, ICUs, and ambulatory care, enabling precise multi-drug delivery for critical therapies.
Qty:
Specifications
| Screen | 4.3-inch LCD color touch screen |
|---|---|
| Infusion Modes | Continuous (base mode), Time mode, Body weight mode, Bolus mode |
| Accuracy | ±5% |
| Flow Rate Range | 0.01 to 300 mL/h (increments of 0.01 mL/h) |
| VTBI (Volume to Be Infused) | 0 to 9999 mL |
| KVO (Keep Vein Open) Rate | 0.1 to 5 mL/h (adjustable) |
| Bolus Rate | 0.1 to 20 mL/h (deactivatable & manual bolus available) |
| Occlusion Sensitivity | 4 selectable levels |
| Interface | USB Type-C |
| Alarm Types | High pressure, Upstream occlusion, Low battery, Empty reservoir, Air bubbles, Near-end VTBI, Battery warning, Restricted alarm, No power, Drop sensor disconnect, System error |
| Battery Backup Infusion | Continuous low-rate infusion during power transitions |
| Last Therapy Memory | Stores recent therapies for quick setup |
| Drug Library | 30+ pre-programmed drug profiles |
| Anti-Bolus Effect | Reduces post-occlusion pressure spikes |
| Air Bubble Removal | Automatic purge function |
| Screen Lock | Prevents accidental adjustments |
| Silent Mode | Adjustable alarm volume for quiet environments |
| Micro Mode | Limits maximum infusion rate for sensitive therapies |
| DPS (Dynamic Pressure Sensing) | Real-time pressure display (graphical + numerical) |
| Drop Sensor | Adjustable sensitivity |
| Brightness | Adjustable screen display |
| History Storage | 5,000+ event logs |
| Classification | Class I, Type CF |
| Waterproof Rating | IP24 |
| Battery | Lithium Polymer (11.1V, 2000mAh) |
| Operating Time | ≥3 hours @ 25 mL/h |
| Charge Time | <3 hours (full charge) |
| AC Input | 100–240V, 50/60Hz |
| DC Input | 15V external power |
| Packing Dimensions | 1400mm × 450mm × 300mm |
| Dimensions | 1300mm × 330mm × 230mm |
| Net Weight | 16 kg |
| Gross Weight | 18 kg |
Features
4.3-inch smart touchscreen
Advanced safety systems
Long-lasting power
Ergonomic design
Clinician-friendly extras
Applications
Our Multi-Channel Infusion Pump MCIP-1000A is ideal for hospitals, ICUs, and ambulatory care, enabling precise multi-drug delivery for critical therapies like chemotherapy, anesthesia, and neonatal support. Its programmable modes, safety alarms, and micro-rate accuracy make it suitable for sensitive infusions in pediatrics, oncology, and postoperative care.
