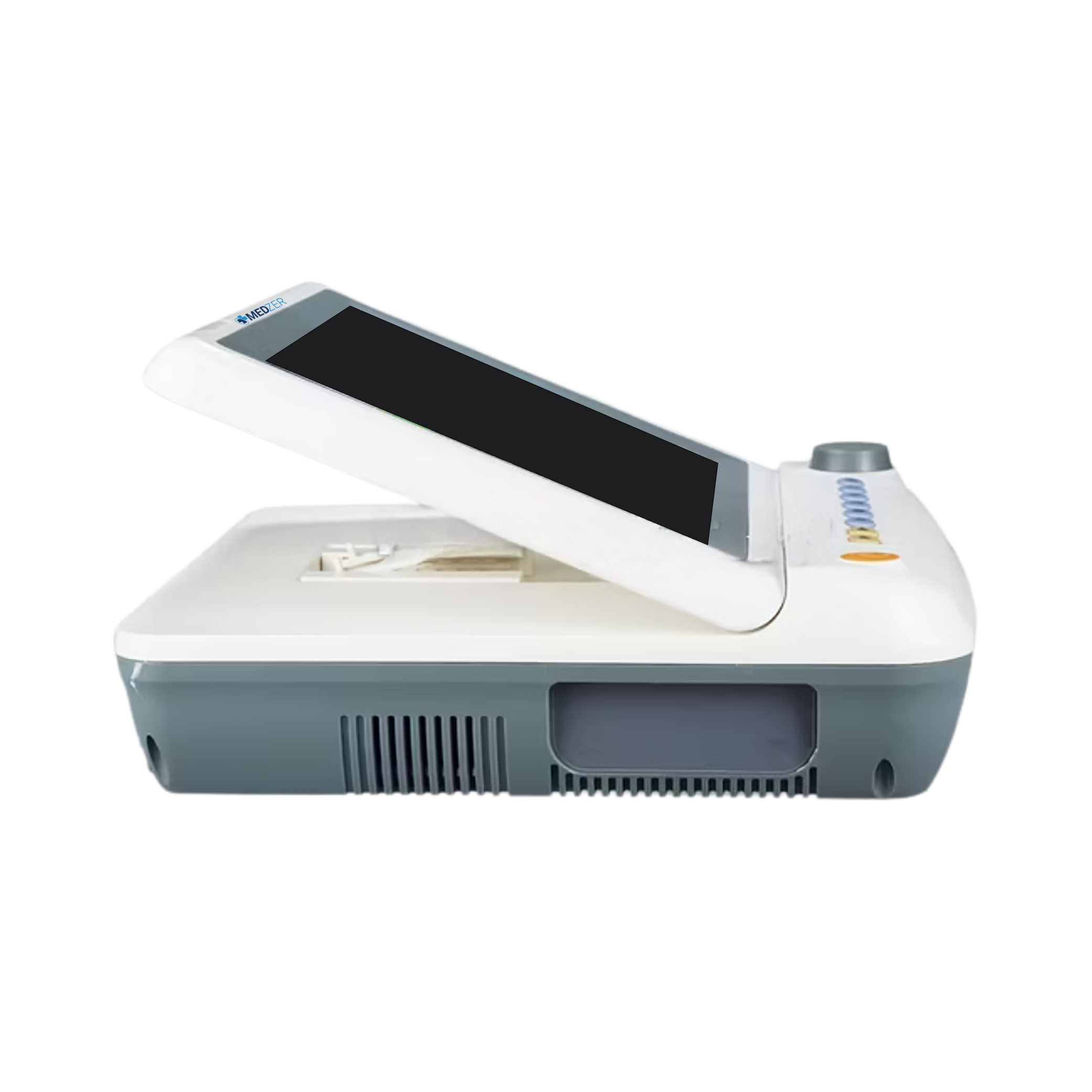

TFT color screen folding up to 90 degrees
Parameters: FHR, TOCO, FM, ECG,SPO2
Alarms for fetal tachycardia or bradycardia, low power and printing paper missing

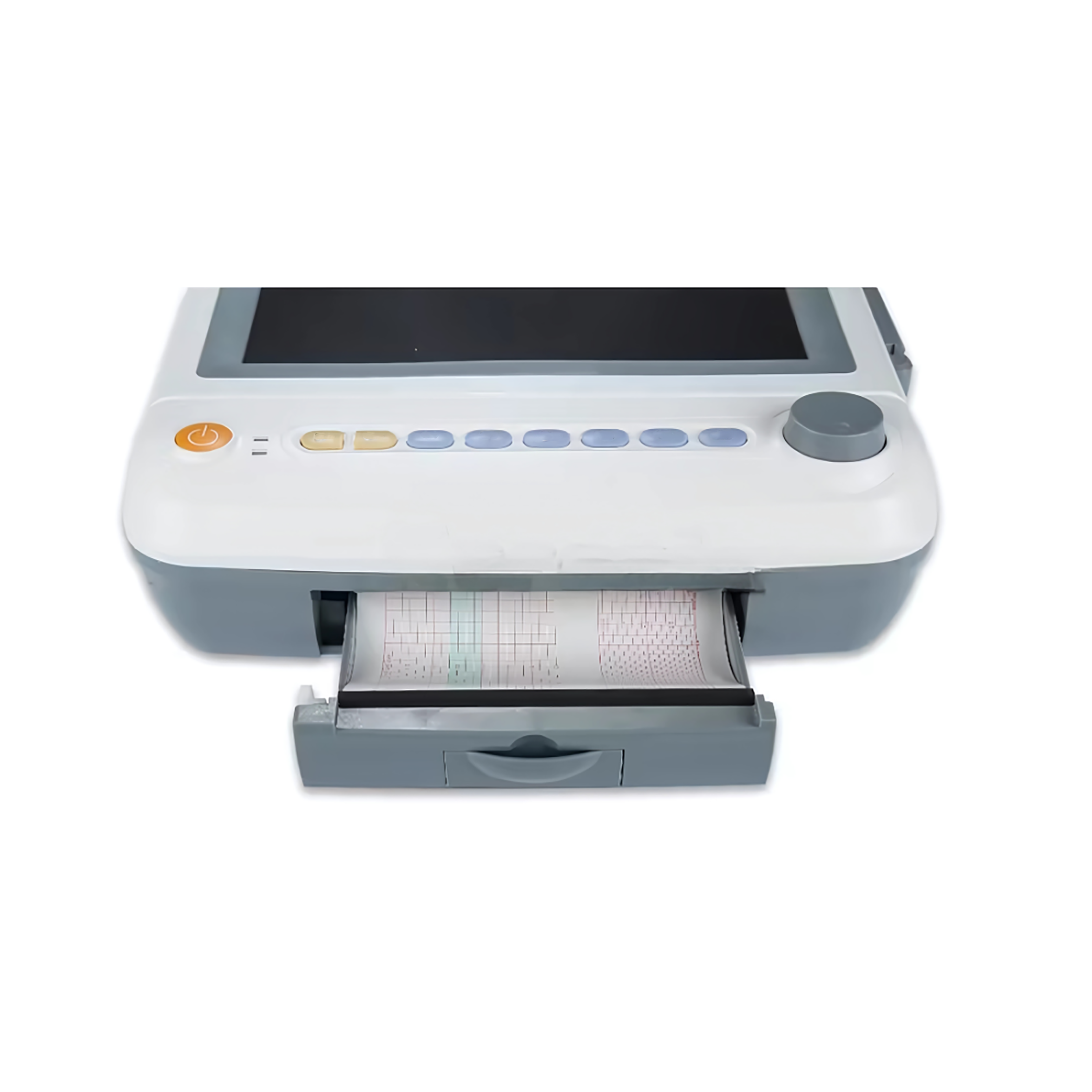

Built-in long-life, HD thermal printer
Highly sensitive multi-chip wide-beam pulse probe
Specifications
| FHR | Transducer: Multi-crystals, pulsed doppler, high sensitively Strength: ,< 5mW/cm2 Working frequency: 1.0 MHz Signal processing: special DSP system and modern recognization Measurement range: 50 bpm ~ 210 bpm |
|---|---|
| TOCO Pressure | Range: 0 ~ 100 units |
| Maternal ECG | Measure scope: 30 bpm ~ 240 bpm Measure accuracy: ±2 bpm |
| NIBP measurement | a) NIBP-SYS (6.7~32.0Kpa)(50~240mmHg) b) NIBP-DIA (3.4~26.6Kpa)(25~200mmHg) c) NIBP-MEAN(2.0~24.0ka(15~180mmHg) |
| SpO2 measurement | Measure scope : 70% ~ 99% Measure accuracy: ±3% |
| Display | 12.1-inch TFT color screen with 800 × 600 resolution |
| Power | 100V ~ 240V, 50Hz/60Hz |
| Battery | 16.8 V Lithium battery |
Features
TFT color screen folding up to 90 degrees
Parameters: FHR, TOCO, FM, ECG,SPO2
Alarms for fetal tachycardia or bradycardia, low power and printing paper missing
Built-in long-life, HD thermal printer
Highly sensitive multi-chip wide-beam pulse probe
Built-in FAS (Fetal Acoustic Stimulator)
Automatical grading function
FM recording and display
Large data storage with playback and print function
Patient event and clinical event marking button
Supports both cable and wireless network connection
Can be networked with central monitoring station
Medzer Cardiotocography (CTG) Machine are designed to monitor fetal heart rate and uterine contractions with precision. They feature advanced sensors and high-resolution display that provide clear, accurate readings in real-time. Their compact, durable design make them suitable for both hospital and clinic use. With user-friendly controls and data storage capabilities, they allow for easy analysis and report generation. Our cardiotocography machine ensure the safety and well-being of both mother and baby.
