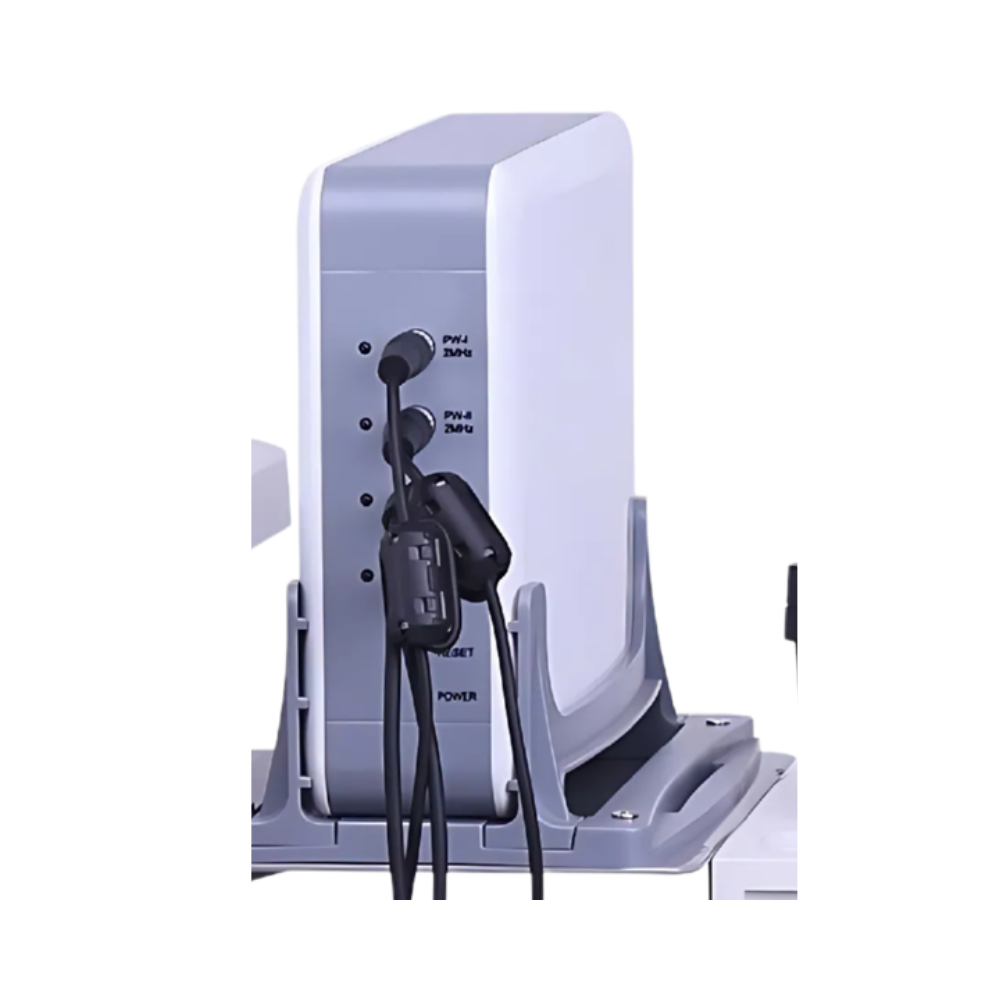

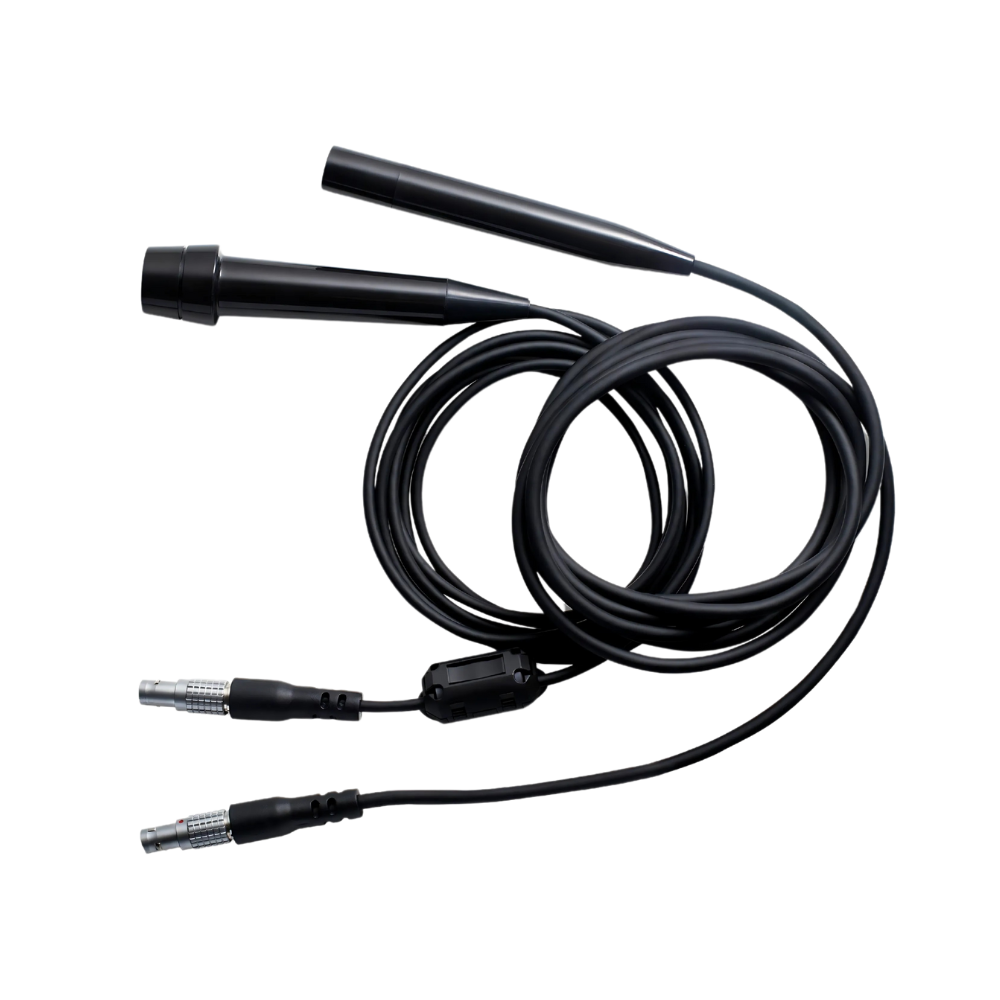

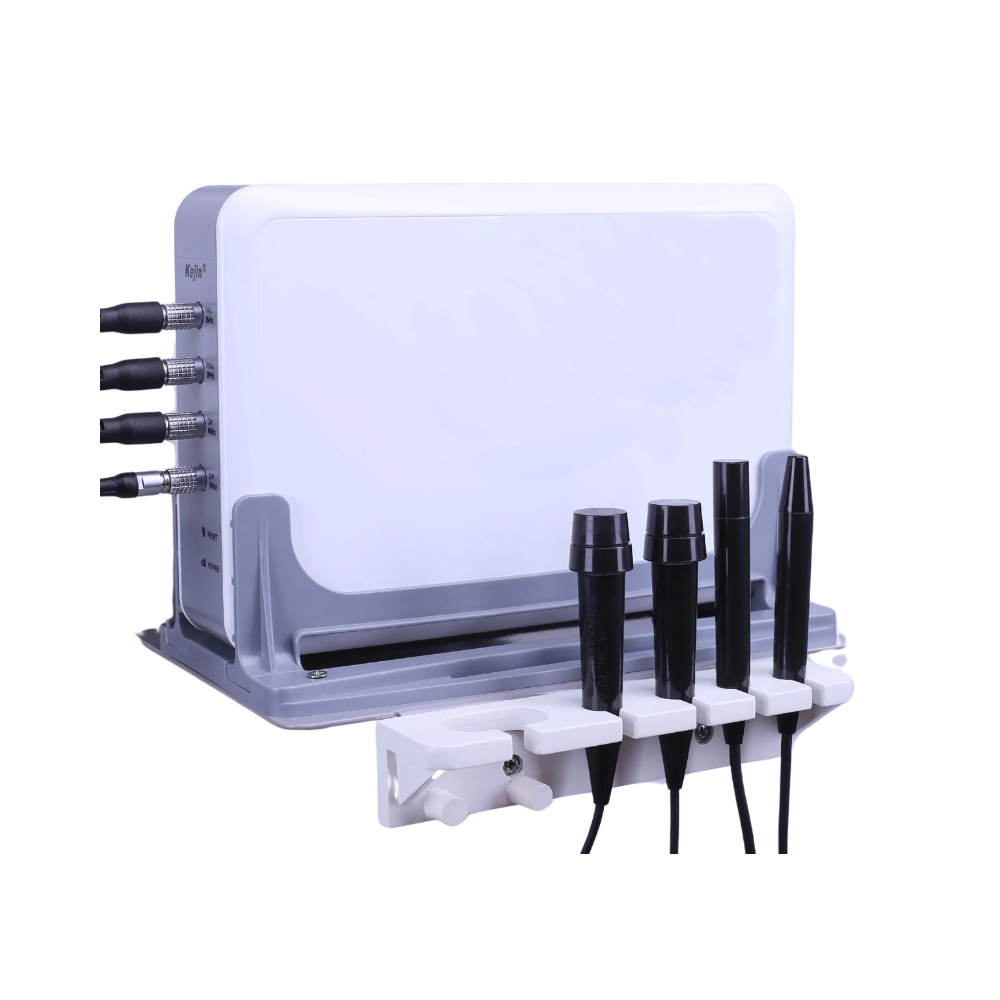

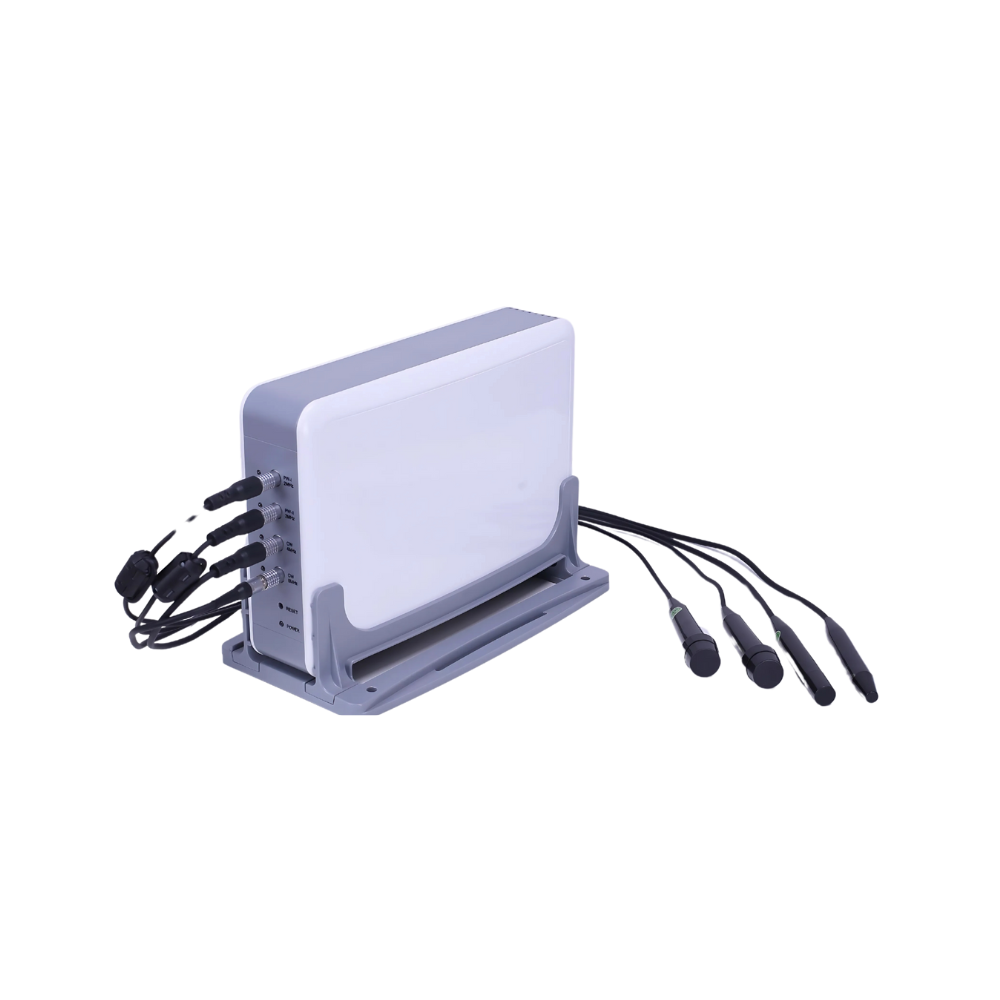

Ultrasonic Transcranial Doppler UTD-1000A

Ultrasonic Transcranial Doppler UTD-1000A

Single channel and multiple depth analysis

Blood vessel detection radar

M mode enables easy detection of blood flow

Improved diagnostic efficiency

Trend chart for monitoring stability of blood flow parameters

Specifications

Ultrasonic frequency PW (2 MHz)
CW (4 MHz)
Flow rate measurement range PW is not less than 20 cm/s to 200 cm/s
CW is not less than 10 cm/s to 100 cm/s
PW depth 25 ~ 120 mm
depth 1 mm
expandable to 200 mm
Parameter calculation Vp, Vm, Vd, PI, RI, S/D, Hr, HITS, HIC, TIS
Scanning speed 4, 8, 16 seconds / screen
Operating system Windows 2000 / XP / 7
Memory Large image storage
Transmit power 0 ~ 100 % or 0 ~ 800 % adjustable
Image gain 0 ~ 7 A total of 8 adjustable or 0 ~ 48 dB optional
Movie playback > 10 minutes, Image sound synchronization
Spectrum conversion 256/512 point FFT built-in conversion
Image storage > 1000 Spectral Images
Doppler sound forward, reverse, mix, close, optional
Recorder Audio-playback facility
Weight 2 kgs

Features

Single channel and multiple depth analysis

Blood vessel detection radar

M mode enables easy detection of blood flow

Improved diagnostic efficiency

Trend chart for monitoring stability of blood flow parameters

Emboli tracking

Lightweight and portable

Radiation free

High cost performance

Vascular radar allows automatic adjustment of detection depth

Suitable for cerebrovascular disease and brain death (irreversible coma) diagnosis

Color printer, top grade trolley and PC screen 19 inch (Optional)
