Bright LCD screen
CPU control assures stable function and high reliability
Power switching function
Real display the battery power in panel
RS232 connectivity port
Specifications
Syringe Size | 10 ml, 20 ml, 30 ml, 50 ml |
---|---|
VTBI | 0.1 ml/h ~ 1600 ml/h Increment : 0.1ml/h |
Bolus Rate | 50 ml: 1600 ml/h 30 ml: 900 ml/h 20 ml: 600 ml/h 10 ml: 400 ml/h |
Safety Classification | Class I, Type CF |
Accuracy | Volume accuracy : ±3% |
Alarms | Occlusion, Nearly finish, Finish, Standby Low battery, Battery exhausted |
Occlusion | HIGH :110 kPa ± 20 kPa (825 mmHg ± 150 mmHg) MED : 80 kPa ± 30 kPa (600 mmHg ± 225 mmHg) LOW: 60 kPa ± 20 kPa (450 mmHg ± 150 mmHg) |
Waterproof level | IPX3 |
Power Supply, AC | AC: 100 V ~ 240 V,50/60HZ(±1 HZ), ≤25 VA |
Battery | Ni-MH, rechargeable DC 12V 1800mAh |
Working Temperature | 5℃ ~ 40℃ |
Relative Humidity | ≤ 90% |
Atmospheric Pressure | 860 hPa ~ 1060 hPa |
Dimensions | 266 × 141 × 145 mm |
Weight | 2 kgs |
Features
Bright LCD screen
CPU control assures stable function and high reliability
Power switching function
Real display the battery power in panel
RS232 connectivity port
KVO function at the lowest rate 0.1ml/h
Bolus (Quick infuse) function
Purge (Evacuate bubble) function
Repeat alarm function
Continuous operation for 6 hours
Battery protection alarm
Screen-lock for control panel

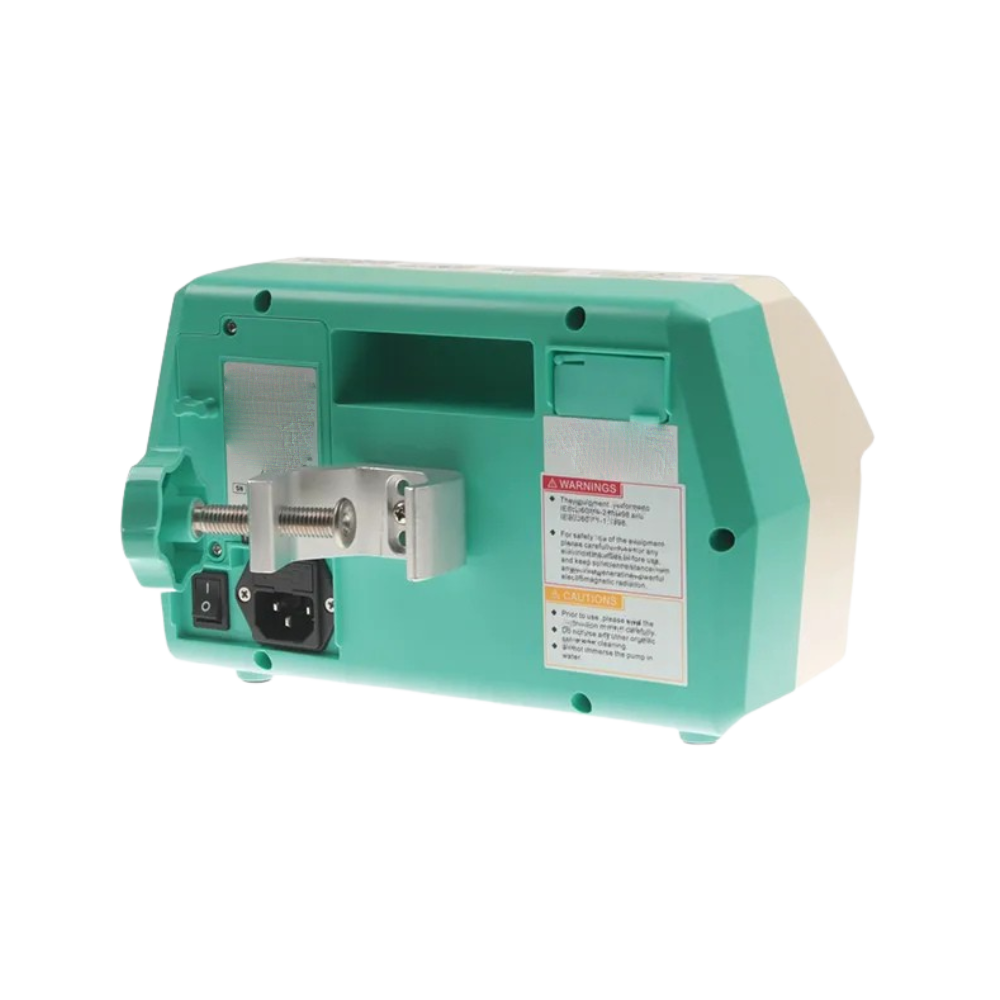

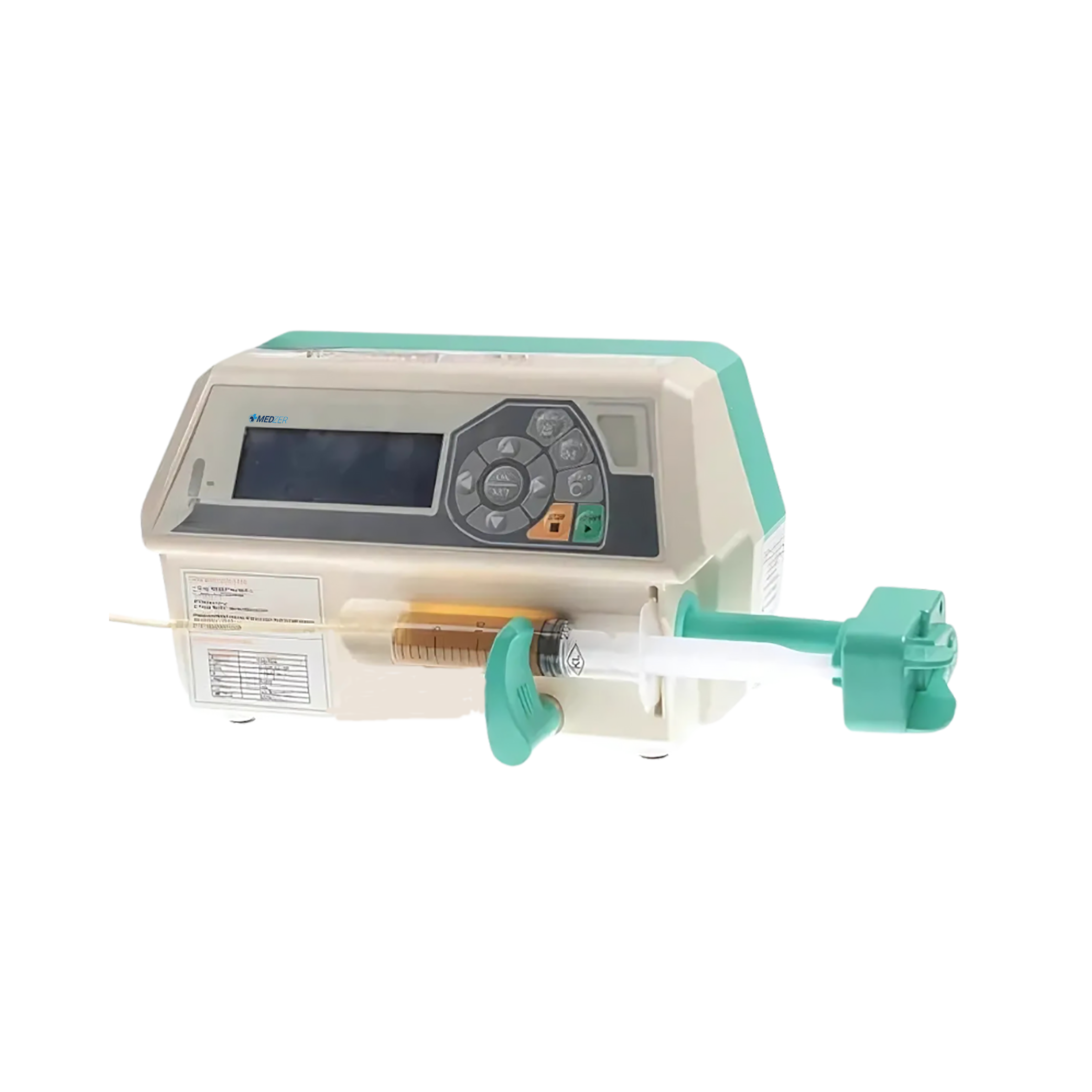

Medzer Single Channel Syringe Pump provide precise and reliable medication administration with a wide range of syringe sizes. Their user-friendly interface allow for easy programming and operation. With adjustable infusion rates and clear LCD display, they support seamless monitoring and control. They are designed for both hospital and home care settings, providing flexibility and convenience. Our single channel syringe pump offer unmatched precision and reliability for safe and effective medication delivery.
