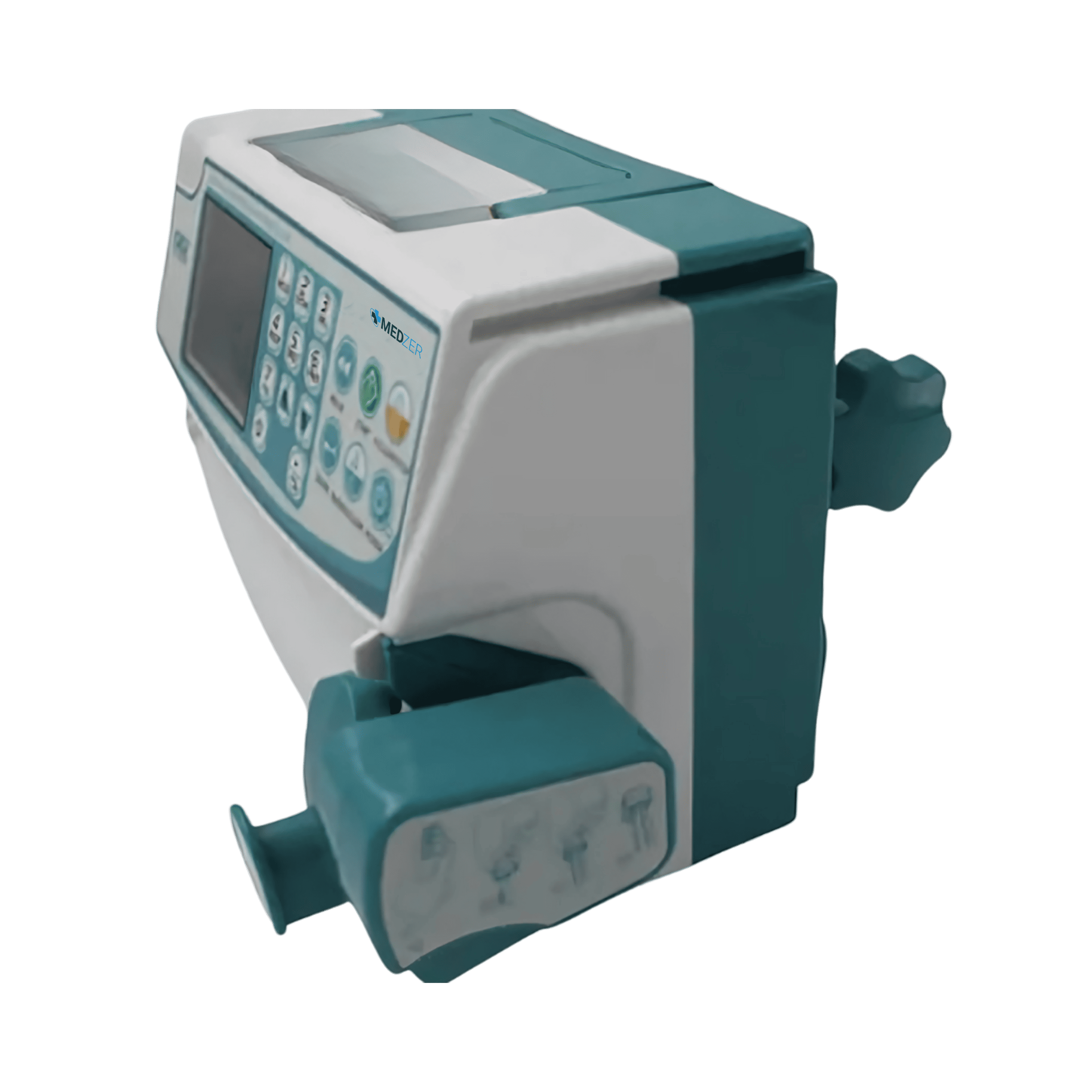

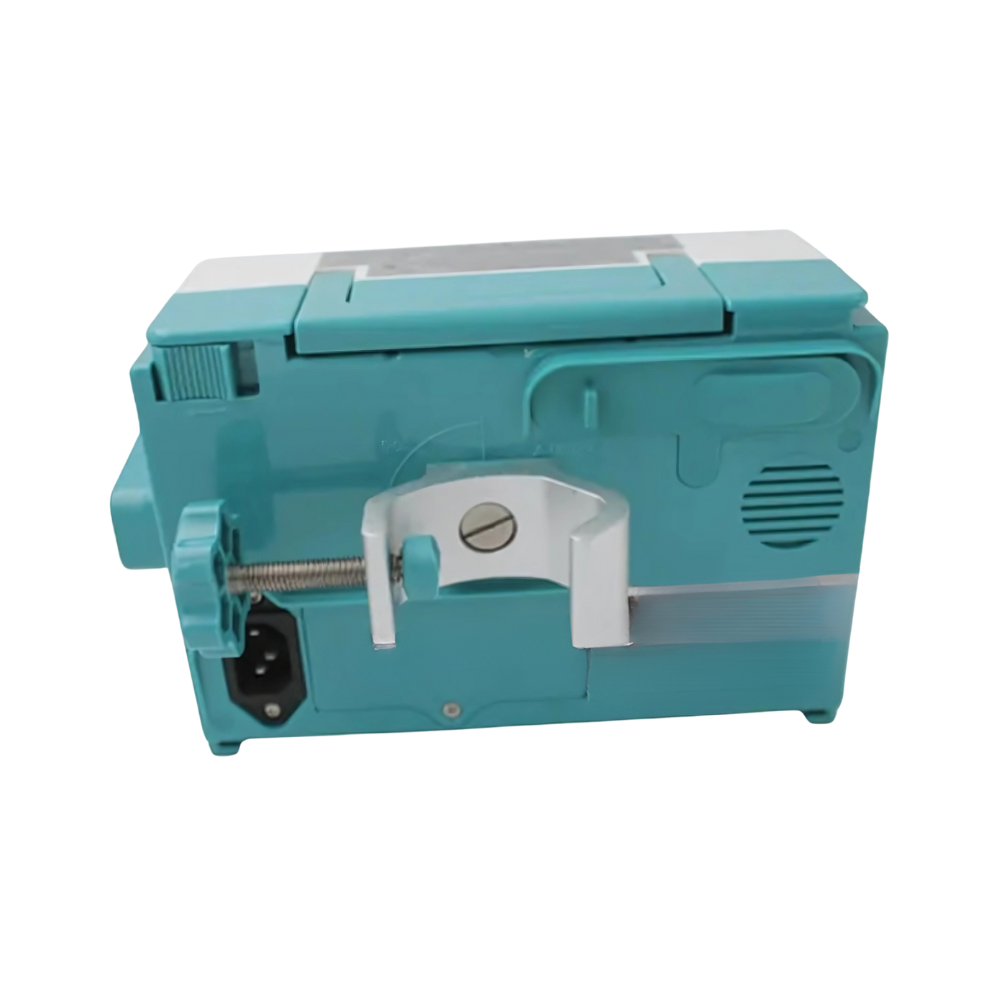

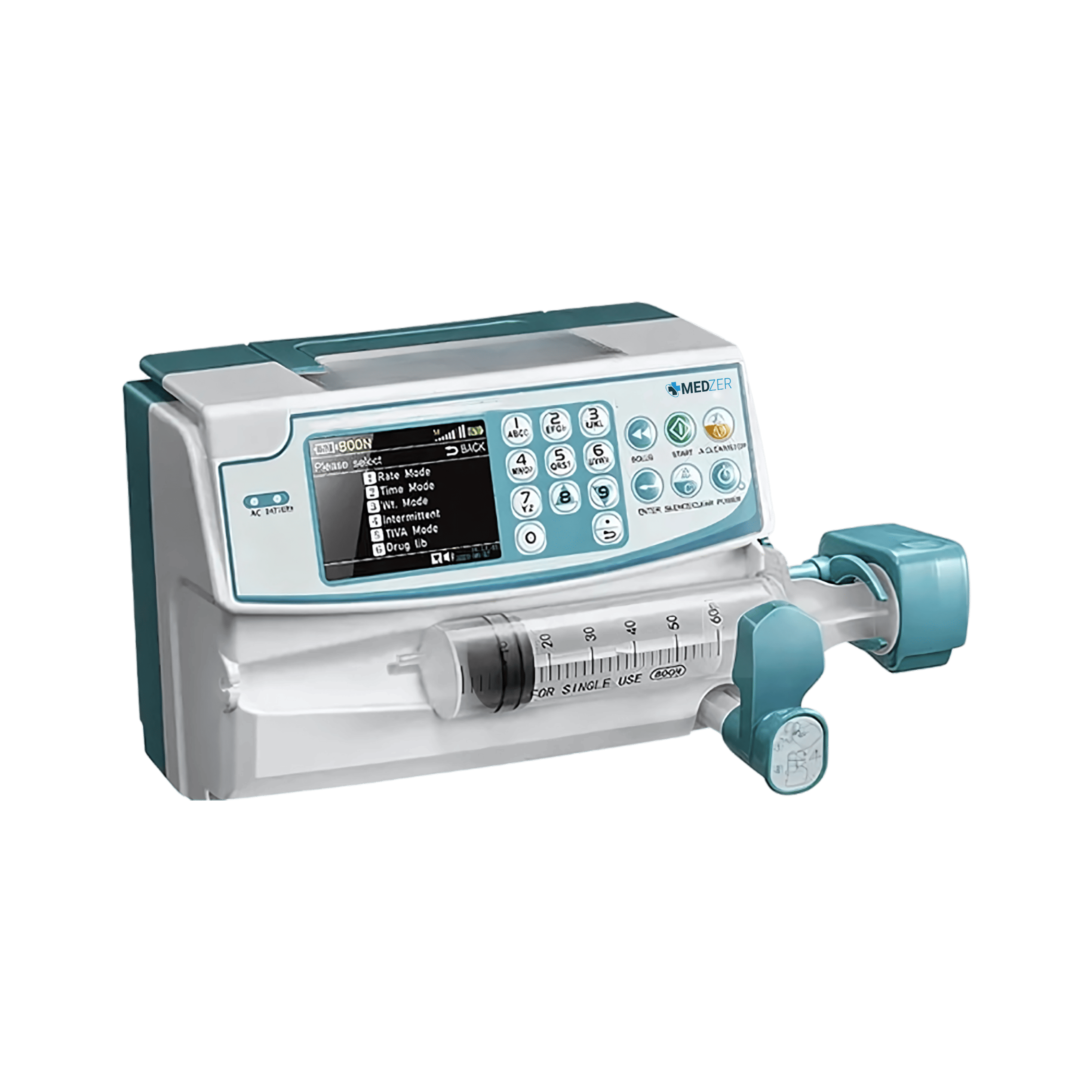

Dual Channel Syringe Pump DCSP-1000H is a portable, lightweight medical device delivering precise medication dosage. Consists of a long-wear Lithium Polymer battery that lasts up to 6 hours. Delivers the dosage with an accuracy of ±2%. Comes with an automatic recognition of the syringe type and size. Features numeric buttons, rotatable clamp, alarms and night mode for a great experience.
Specifications
| Infusion Mode | Rate Mode, Time Mode, Weight Mode, Intermittent Mode, TIVA Mode, Drug Library, Program Mode, TPN Mode, Sequential Mode, Dose Mode, Loading Dose Mode, Micro Mode | ||||||
|---|---|---|---|---|---|---|---|
| Applicable infusion set | Various brands of sterile syringes: 5ml, 10ml, 20ml, 30ml, 50ml/60ml | ||||||
| Accuracy | ±2% | ||||||
| Infusion rate | 5ml syringe: 0.1 – 150ml/h 10ml syringe: 0.1 – 300ml/h 20ml syringe: 0.1 – 600ml/h 30ml syringe: 0.1 – 900ml/h 50ml syringe: 0.1 – 1800ml/h Increment at 0.01ml/h | ||||||
| VTBI | (0 – 9999.99) ml | ||||||
| Volume infused | 0 – 9999.9 ml | ||||||
| KVO rate | (0, 0.10 – 10.0) ml/h | ||||||
| BOLUS rate | 5ml syringe: 0.1 – 150ml/h 10ml syringe: 0.1 – 300ml/h 20ml syringe: 0.1 – 600ml/h 30ml syringe: 0.1 – 900ml/h 50ml syringe: 0.1 – 1800ml/h Increment at 0.01ml/h | ||||||
| Occlusion pressure | 13 levels | ||||||
| History record | 1200 | ||||||
| Power consumption | 35VA | ||||||
| Battery | Li-Polymer 7.4V 19000mAh | ||||||
| Stack expandable | 2 to 6 pumps | ||||||
| Operating conditions |
|
||||||
| Storage conditions |
|
||||||
| Transport conditions |
|
Features
Facilitates effortless transferring and moving of the device due to its compact size
Designed with user-friendly numeric key buttons for fast programming
Incorporated with audible and visual alarms for quickly identifying the issues
Capable of accommodating syringe sizes ranging from 5ml to 60ml
Allows to turn off the key’s sound and indicating light for peaceful nighttime
The graphic pressure indicator displays the occlusion rate in advance to prevent potential risks
The infusion flow rate has an accuracy of ±2%, and it can go as low as 0.1ml/h
Applications
Medzer Dual Channel Syringe Pump are designed for administering fluids and medications in critical care settings. They allow simultaneous infusion through two channels, offering flexibility and efficiency. Their compact design and easy setup make them ideal for both hospital and home care use. With adjustable flow rates and a user-friendly interface, they ensure accurate and safe delivery of fluids. Our dual channel syringe pump provide precise and safe medication administration in various clinical environments.
