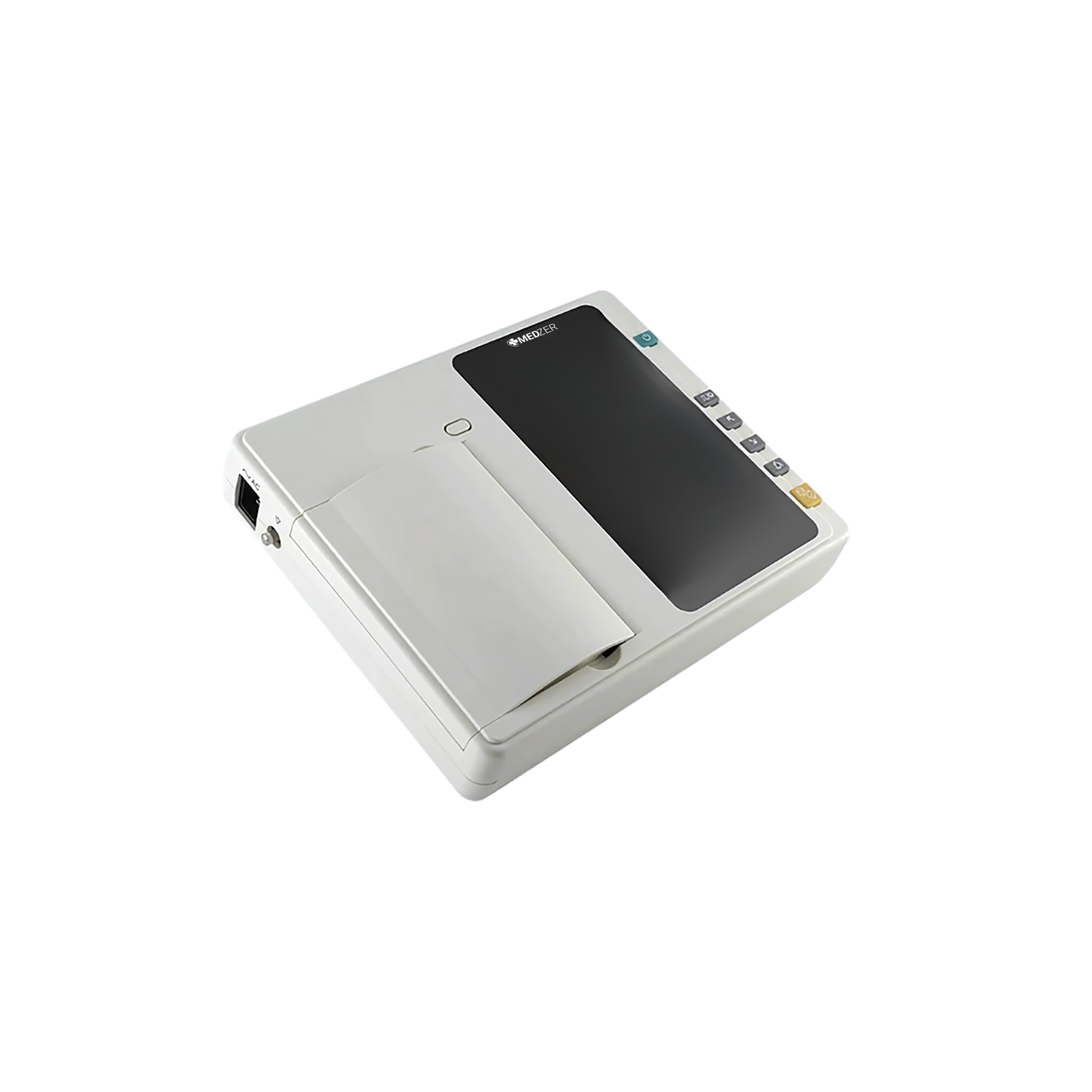

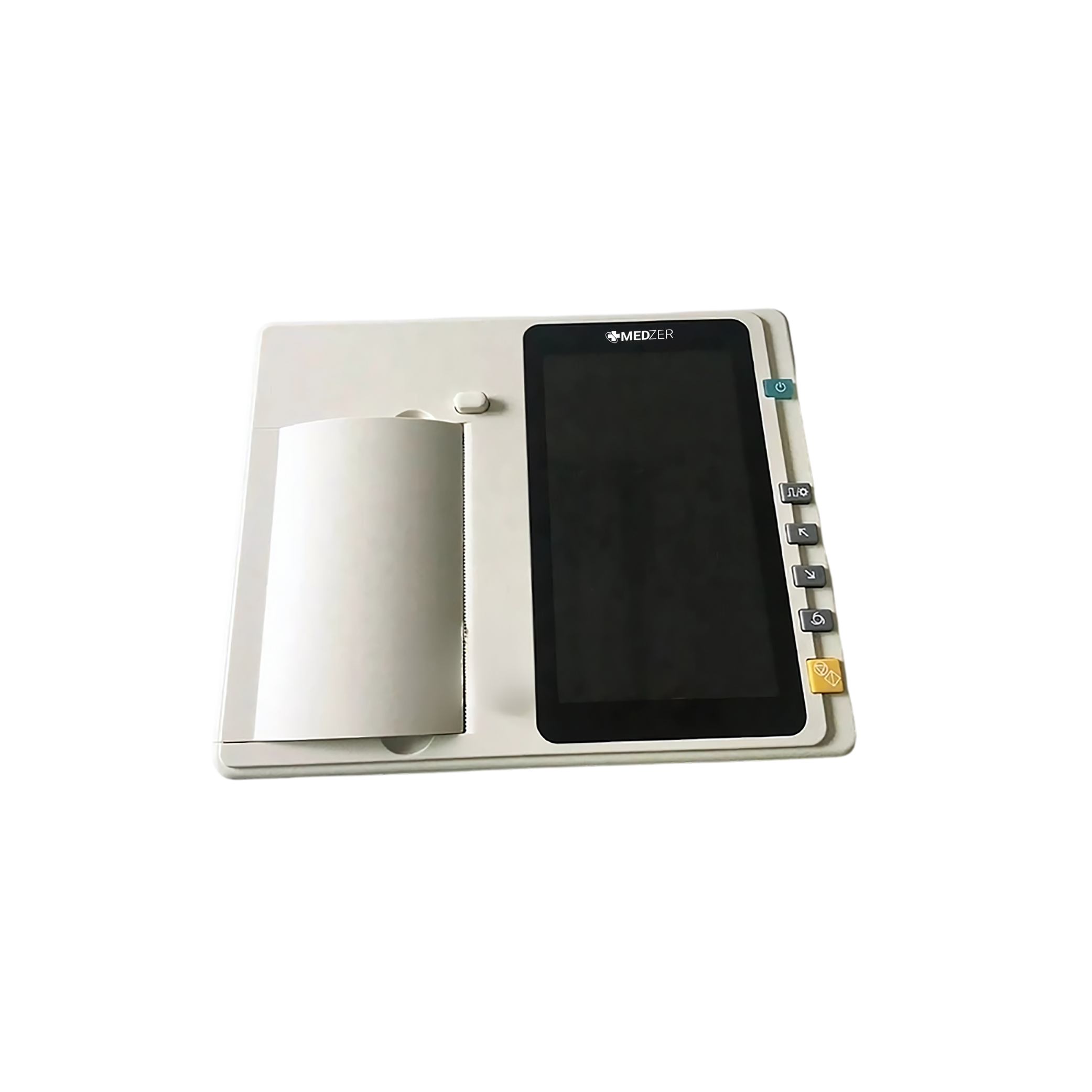

6 Channel ECG Machine SPECG-1000A is a compact electrocardiograph designed for accurate cardiac monitoring. It features a high-resolution LCD screen for real-time data display and integrated thermal printer for instant report output. The device utilizes advanced digital filters to reduce noise and artifacts, delivering precise ECG readings. Our 6 Channel ECG Machine is ideal for clinics and hospitals, offering reliable performance, easy operation and efficient data management.
Specifications
Lead | Standard 12 Leads |
---|---|
Acquisition Mode | Simultaneous 12 leads acquisition |
Measurement Range | ±5mVpp |
Input circuit | Floating; Protection circuit against Defibrillator effect |
Input Impedance | ≥50MΩ |
Input circuit current | <0.05µA |
Record mode | Automatic: 3CH×4+1R, 3CH×4, 3CHx2+2CHx3, 3CHx2+2CHx3+1R, 6CHX2 Manual: 3CH, 2CH, 3CH+1R, 2CH+1R Rhythm: Any lead selectable |
Filter | EMG Filter: 25 Hz / 30 Hz / 40Hz/75 Hz / 100 Hz / 150Hz DFT Filter: 0.05 Hz/ 0.15 Hz AC Filter: 50 Hz / 60Hz |
CMRR | >100dB |
Patient Leak Current | <10µA (220V-240V) |
Frequency Response | 0.05Hz~150Hz (-3dB) |
Sensitivity | 2.5mm/mV, 5 mm/mV, 10 mm/mV, 20 mm/mV (error: ±5%) |
Anti-baseline Drift | Automatic |
Time constant | ≥3.2s |
Noise level | <15µVp-p |
Paper speed | 12.5 mm/s, 25 mm/s, 50 mm/s |
Recording mode | Thermal Printing System |
Paper specification | Roll 110mm x 20M |
Safety Standard | IEC I/CF |
Sample Rate | Normal: 1000sps/Channel |
Power Supply | AC:100~240V, 50/60Hz, 30VA~100VA DC: 14.8V/2200mAh, Built-in Lithium Battery |
Dimension | 32 × 25 × 17 cm |
Net Weight | 2 Kg |
Gross Weight | 2.8 Kg |
Features
6-Channel Output
Rechargeable Li-ion battery
Automatic Measurement and Interpretation
Battery and AC Power Options
Built-in Printer
Optional Accessories
Applications
