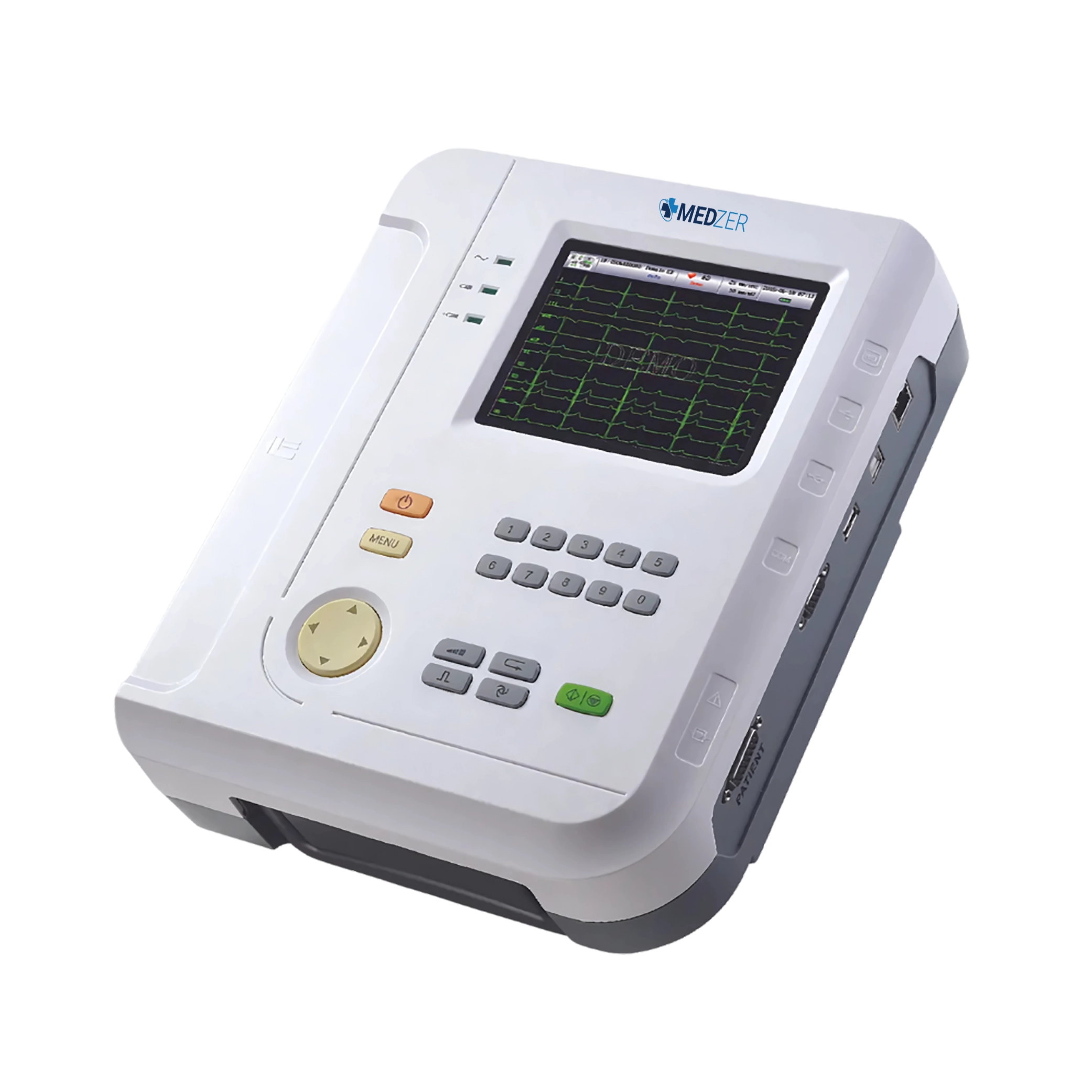

12-Channel ECG Machine TECG-1000B features a 5.6-inch high-resolution color LCD (640 × 480 pixels), displaying 12-lead waveforms simultaneously for real-time cardiac analysis. Its advanced digital signal processing incorporates EMG, AC, drift, and low-pass filters, ensuring superior waveform accuracy. It is equipped with dual USB ports and an RJ45 interface, supporting both wired and wireless data transmission. This device delivers unparalleled accuracy, efficiency, and integration in modern healthcare ecosystems.
Qty:
Specifications
| Display | Size: 5.6” color LCD (non-touch) |
|---|---|
| Operating conditions | Temperature: 0 to 40°C |
| Power supply | Voltage: 100 to 240V, 50/60 Hz ± 1 Hz |
| Battery | 2200 mAh, Rechargeable Lithium-ion battery |
| Indicators options | Power, Battery, QRS Beep, Operating Key sound, Key Backlight |
| Interfaces | Parameter cable interface, AC power input socket, 2 USB Ports, RJ45 Port |
| Connectivity | Hardwired/Wireless connection to PCECG |
| Data storage | Internal memory: 8GB microSD (40,000 ECGs) |
| Auto Power Off timing options | OFF, 1min, 5min, 10min, 30min |
| Parameters displayed | Patient ID, gender, age, waveforms, recording/sweep speed, gain, EMG filter, HR, leads status, clock, information messages |
| Recorder | Type: Built-in thermal array |
| Product dimension | 316 × 259 × 98 mm |
| Package dimensions | 445 × 290 × 375 mm |
| Net weight | 3.2 kg |
| Gross weight | 5.85 kg |
Features
Standard Accessories
| Accessories | Quantity |
| 12-lead ECG Cable (ф4mm, Pin connector, International Electrotechnical Commission (IEC)) | 1 Pc |
| Adult Limb Clamp Electrodes (ф4mm) | 1 Pc |
| Adult Precordial Suction Electrodes (ф4mm) | 1 Pc |
| Recording Paper 210mm×30m (Roll) | 1 Pc |
| Printer Cabin Clapboard | 1 Pc |
| Screws | 2 Pcs |
Optional Accessories
| Accessories | Quantity |
| 12-lead ECG Cable (ф4mm, Pin connector, International Electrotechnical Commission (IEC)) | 1 pc |
| 12-lead ECG Cable (ф4mm, Banana connector, International Electrotechnical Commission (IEC)) | 1 pc |
| 12-lead ECG Cable (ф4mm, Banana connector, American Heart Association (AHA)) / Anti-Defibrillation | 1 pc |
| 12-lead ECG Cable (Clip connector, International Electrotechnical Commission (IEC) / Anti-Defibrillation (for disposable electrode) | 1 pc |
| Pediatric Precordial Suction Electrodes (ф4mm) | 6 pcs |
| Adult Precordial Suction Electrodes (ф4mm) | 6 pcs |
| Pediatric Limb Clamp Electrodes (ф4mm/ф3mm) | 1 Set |
| Adult Limb Clamp Electrodes (ф4mm) | 1 Set |
| Disposable Electrodes for Adult | 12 pcs |
| Disposable Electrodes for Pediatric/Neonate | 12 pcs |
| Recording Paper (Roll, 210MM × 30MM) | 1 pc |
| Recording Paper (Roll, 215MM × 30MM) | 1 pc |
| LASER Printer | 1 Set |
| Trolley + Tray | 1 pc |
| Fender | 2 pcs |
| Fixed Bracket | 1 pc |
| Trolley | 1 pc |
| Screw | 4 pcs |
| ECG Cable Arm | 1 pc |
| Tray | 1 pc |
| Lithium-ion Battery | 1 pc |
| Ground Cable | 1 pc |
Applications
12 Channel ECG Machine TECG-1000B is designed for the detection, and diagnosis of cardiovascular diseases, like myocardial infarction, arrhythmias, atrial fibrillation, and sudden cardiac events, ensuring early intervention and optimized patient management.
