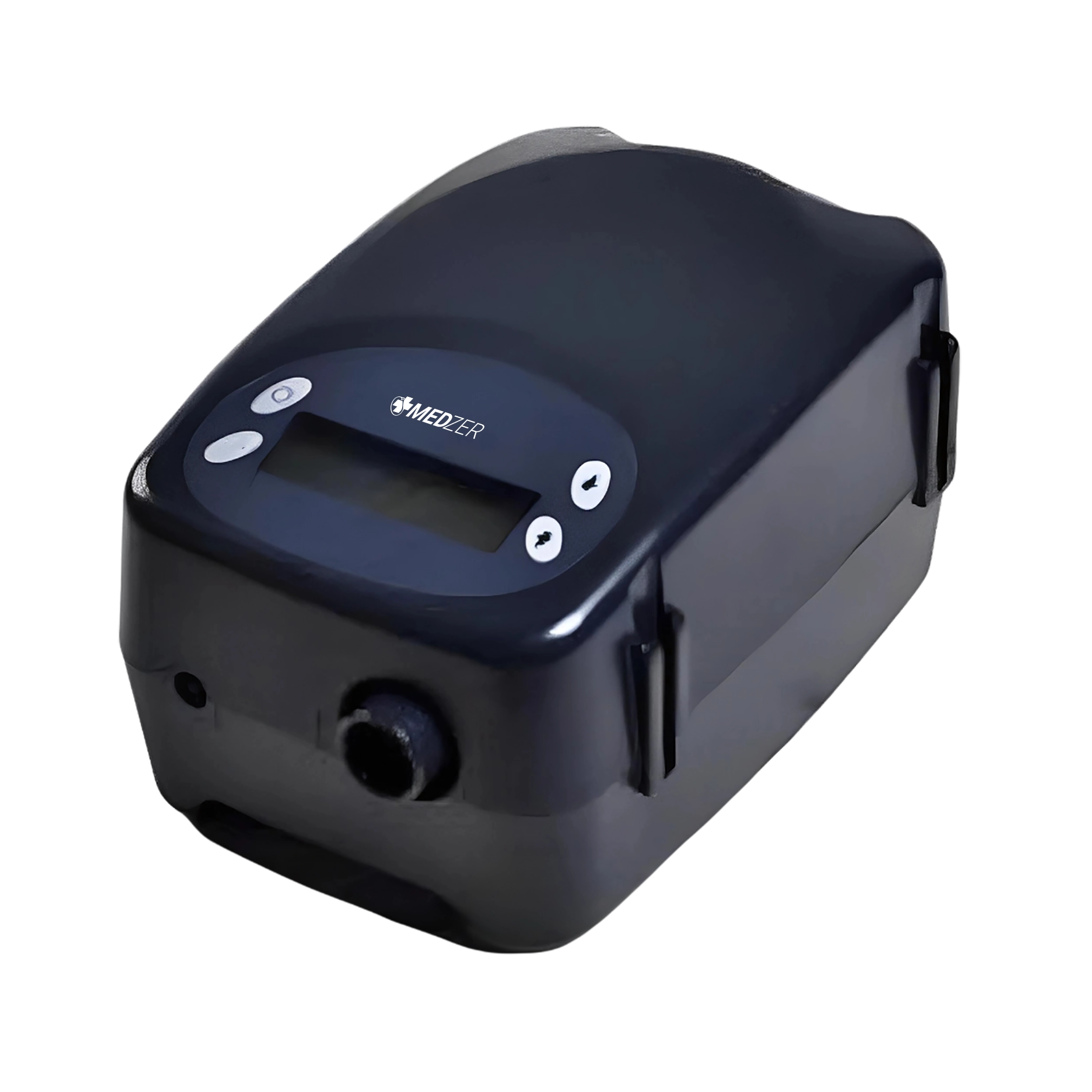

Non-invasive BiPAP Ventilator NBV-1000A

Non-invasive BiPAP Ventilator NBV-1000A is configured with advanced Adaptive Triggering Technology ideal for the treatment of breathing problems with mechanical ventilation support. Enhanced data monitoring capabilities that record and preserve patient respiratory compliance and trends. Utilized with DRT (Dynamic Respiration Tracking), which monitors breathing during rapid movements

Specifications

Operating Conditions 5℃ to 35℃, 10% to 93% (non-condensing), 700hPa to 1060hPa
Storage Conditions -20℃ to 55℃, 10% to 93% (non-condensing), 500hPa to 1060hPa
Modes S/T/ST/CPAP/APCV
IPAP 4-30cmH2O
EPAP 4-20cmH2O
CPAP 4-20cmH2O
Rise Time (ISLP) 1 – 6
Ramp Time 0 – 60 min, 1min per step
Noise <30dB(A)
Imput Power AC100-240V/50-60Hz, 2-1A
Output Power DC24V, 2.5A
Dimensions (L×W×H) 180 × 210 × 105 mm
Weight 1.2 Kg

Features

Utilizes Adaptive Triggering Technology, which seamlessly matches the patient’s natural breathing rhythm
Improved with a number of ventilation modes, including S/T/ST, CPAP, and APCV for ease of use
Guarantees minimized Work of Breathing (WOB) by reducing effort exerted by the patient during breathing
In-built with an audible alarm that triggers an alert during air leakage
It will automatically assist the patient in breathing once AUTO mode is activated
Equipped with patient-facing screen display and toggle switch
Maintains unobstructed airway by employing Automated Airway Management ensuring proper breathing & oxygenation of body

Standard Accessories

Silicon and Latex free full face reusable masks 1 quantity
Silicon and latex-free full nasal reusable masks 1 quantity

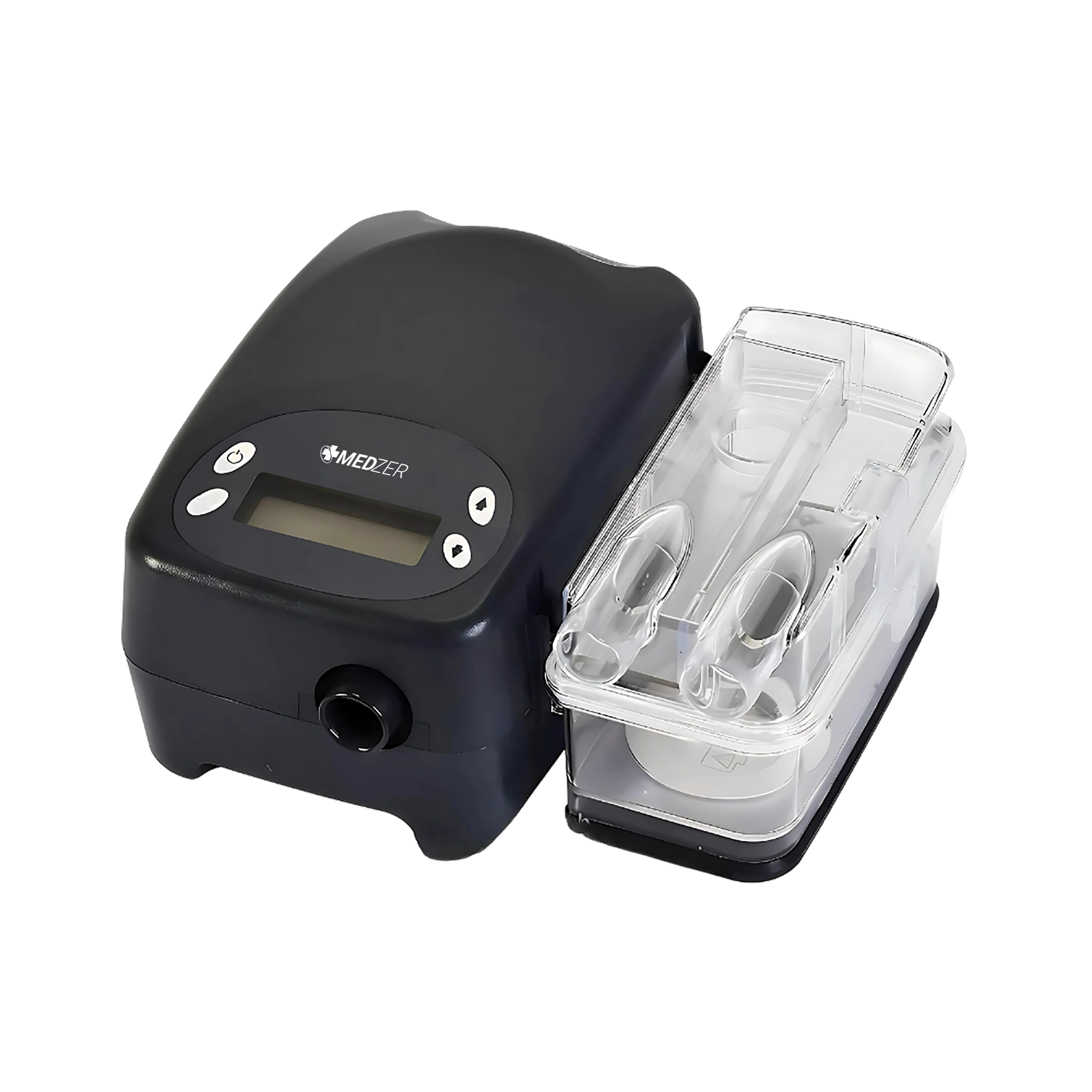

Detachable Humidifier with heated tube system1 quantity
Horse Pipe 1 quantity
Carry Bag 1 quantity

Applications

Non-invasive BiPAP ventilation is beneficial for managing a whole spectrum of acute and chronic respiratory conditions. It can be applied in various clinical settings including cardiac conditions, post-operative recovery, paediatric and home care

Buy Now :- Non-invasive BiPAP Ventilator NBV-1000A
