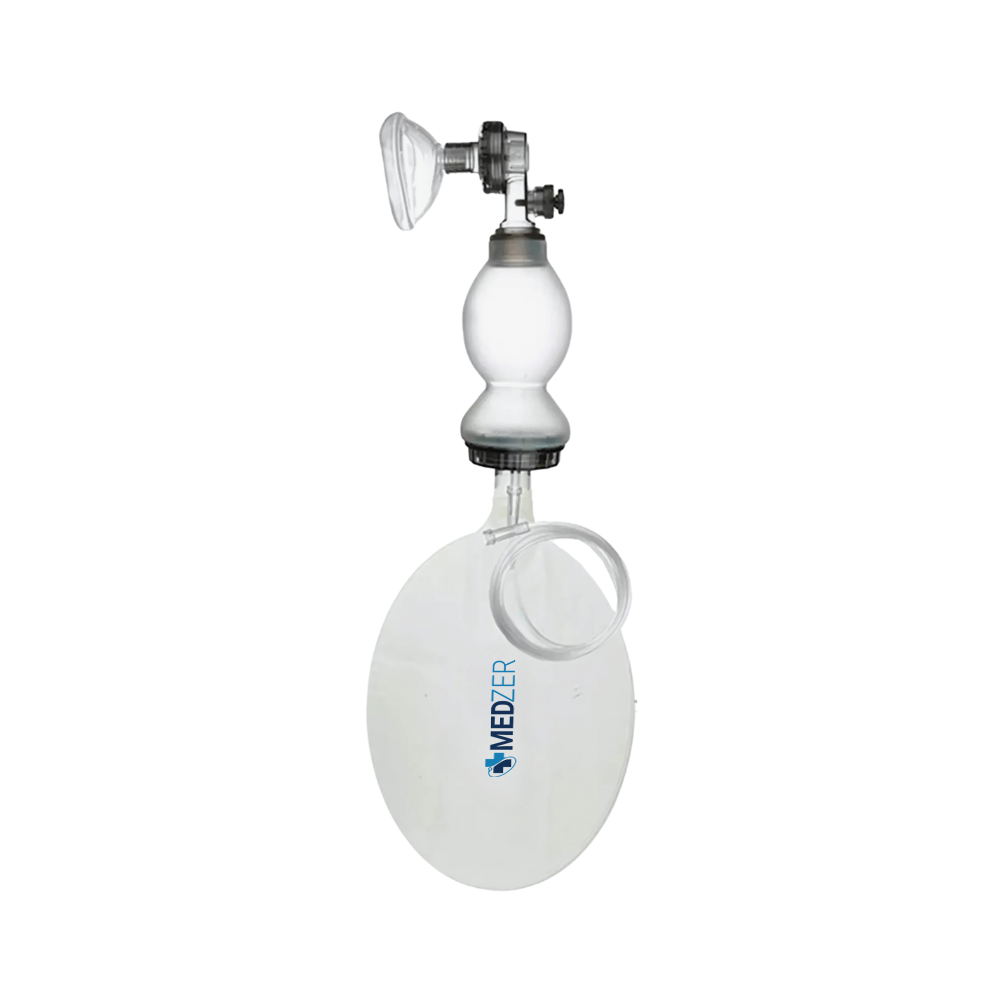

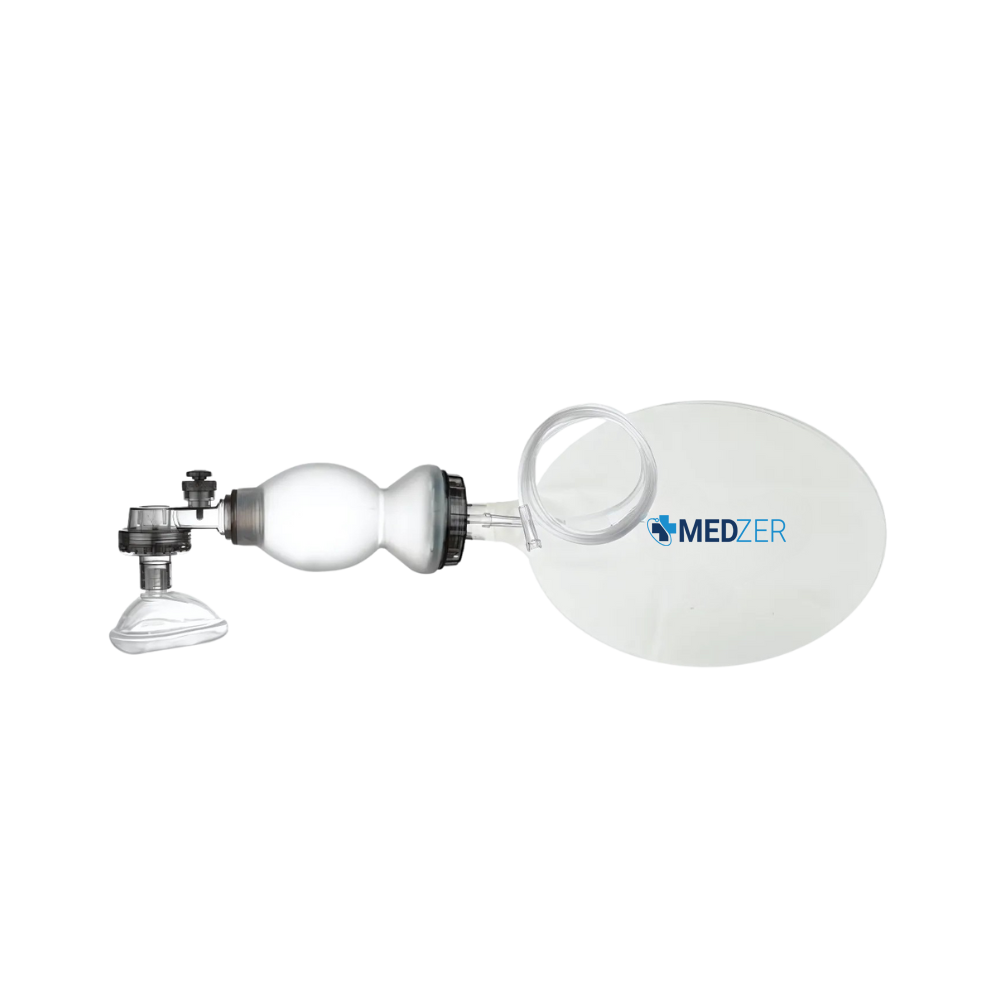

Neonatal Resuscitator NR-1000A delivers a stroke volume of 150 ml per compression, ensuring effective ventilation for neonates. It offers ample capacity for continuous ventilation support with a 340 ml resuscitator volume. Crafted from durable medical-grade silicone ensures both longevity and safety. Our resuscitator bag and mask are autoclavable up to 20 times, facilitating easy sterilization.
Qty:
Qty:
Specifications
| Stroke Volume | 150 ml |
|---|---|
| Resuscitator Volume | 340ml |
| Pressure Limiting Valve | 40 cmH2O |
| Dead Space (Patient Valve) | 7 ml |
| Self-Inflating Ventilation Bag Capacity | 250ml |
| Oxygen Reservoir Bag for Infants | 600ml |
| Inspiratory Resistance | < 5 cmH2O (at 50 L/min) |
| Expiratory Resistance | < 5 cmH2O (at 50 L/min |
| Bag Reservoir Volume | 1600 ml /600ml |
| Patient Connector | ISO Ø22/15 mm |
| Operating Temperature | -18 °C to 50 °C |
| Storage Temperature | 40 °C to 60 °C |
| Material | Solid silicone |
| Dimensions (L×D) | 225×85mm |
| Neonate Body Weight | ≤ 10 kg |
| Resuscitator Weight | 350 g |
Features
Built-in pressure relief valve to prevent overpressure
Made of pure, durable medical-grade silicone
Semi-transparent
Inlet valve with nipple for oxygen tubing
Easy to clean and reassemble
Standard Accessories
Infant ventilation bag × 1 Non-rebreathing valve with pressure limit × 1 Oxygen tubing intake valve × 1 Plastic carrying case × 1 Transparent masks size 0 for preterm babies, size × 1 Transparent masks size 1 for term babies × 1 Oxygen supply tubing and accessories × 1
Optional Accessories
Silicone face mask Reservoir bag for (500/1000/1600/2000) ml Reservoir bag for 2500ml Oxygen tube PEEP valve & adaptor Reservoir valve Guedel/Berman Airways Mouth opener
Applications
It is used to provide immediate respiratory support to newborns in neonatal intensive care units (NICUs), delivery rooms, emergency departments, and other healthcare centers.
