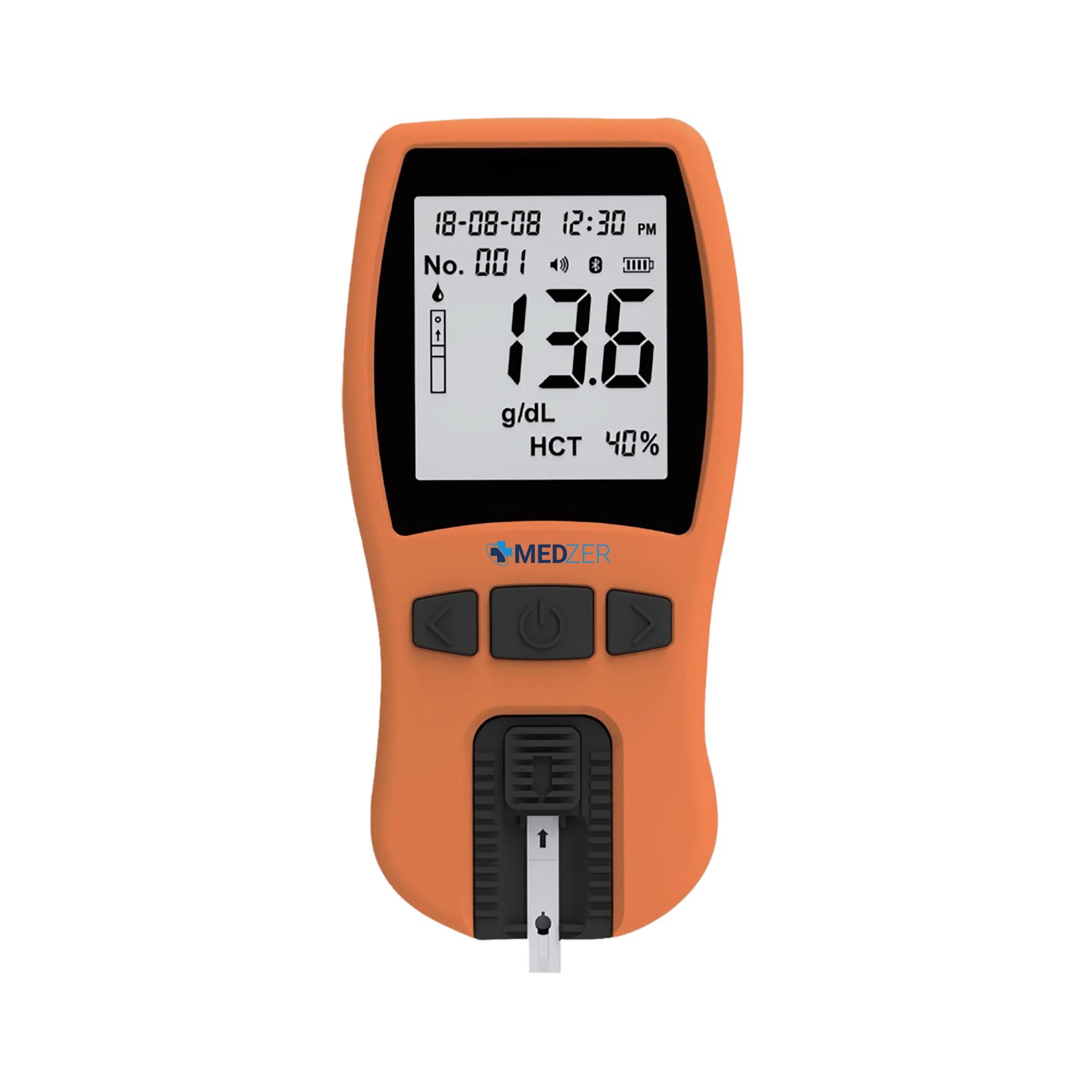

Hemoglobin Meter HGM-1000A delivers quantitative results within seconds, offering a Hb measurement range of 4.5 to 25.6 g/dL and an HCT range of 0 to 76%. The system provides exceptional analytical performance, with SD ≤ 0.4 g/dL for Hb levels of 0–10 g/dL and CV ≤ 4% for 10.1–26 g/dL. It incorporates intuitive controls, a high-resolution display, and automated calibration, ensuring precision and ease of use. The product's compatibility with whole blood samples, along with low maintenance and dependable accuracy, makes it a vital tool for critical diagnostics.
Qty:
Specifications
| Measurement Range | Hb: 4.5 to 25.6 g/dL (45 to 256 g/L, 2.8 to 15.9 mmol/L) |
|---|---|
| Hb Total Precision | 0 to 10 g/dL: SD less than or equal to 0.4 g/dL 10.1 to 26 g/dL: CV less than or equal to 4% |
| Accuracy | 0 to 10 g/dL: ±0.7 g/dL; 10.1 to 26 g/dL: ±7% |
| Methodology | Reflectance photometer |
| Hct Range | 0 to 76% |
| Specimen | Fresh capillary or venous whole blood |
| Memory | 1000 records |
| Calibration | Automatic |
| Storage Conditions | 0 to 55°C; less than or equal to 90% RH |
| Operating Conditions | 10 to 40°C; less than or equal to 90% RH |
| Test Strip Storage Conditions | 2 to 30°C; less than or equal to 90% RH |
| Battery Endurance | Approximately 1000 tests |
| Power Source | 3 × AAA batteries |
| Product Dimensions | 132 × 65 × 22 mm |
| Packaging Dimensions | Approx. 182 × 106 × 110 mm |
| Net Weight | 90g |
| Gross Weight | Aprrox. 200g |
Features
Photometric Analysis
Minimal Specimen Requirement
Automated Self-Calibration
Siphon-method optimization
Error-Proof Sample Management
Rapid test results
Multilingual compatibility
Portable Power Solution
Standard Accessories
| Accessory | Quantity |
| Strips in vial | 25pcs |
| Sterile Lancets | 25pcs |
| Code Chip | 1pc |
Optional Accessories
| Accessory | Quantity |
| Hemoglobin Test Strip | 50pcs |
Applications
Hemoglobin Meter HGM-1000A enables advanced, rapid, and accurate hemoglobin and hematocrit testing for clinical, home, and emergency use with minimal blood samples.
