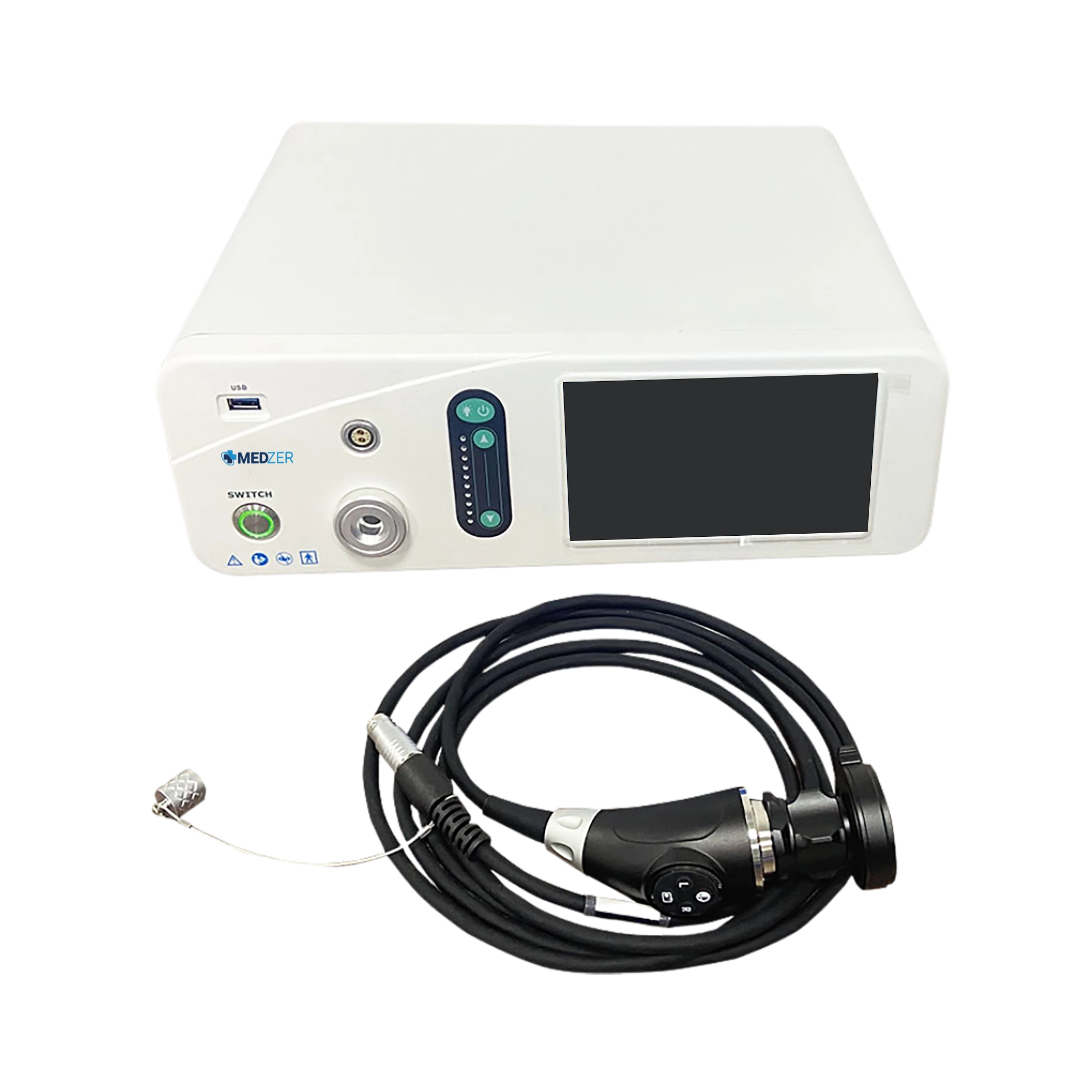

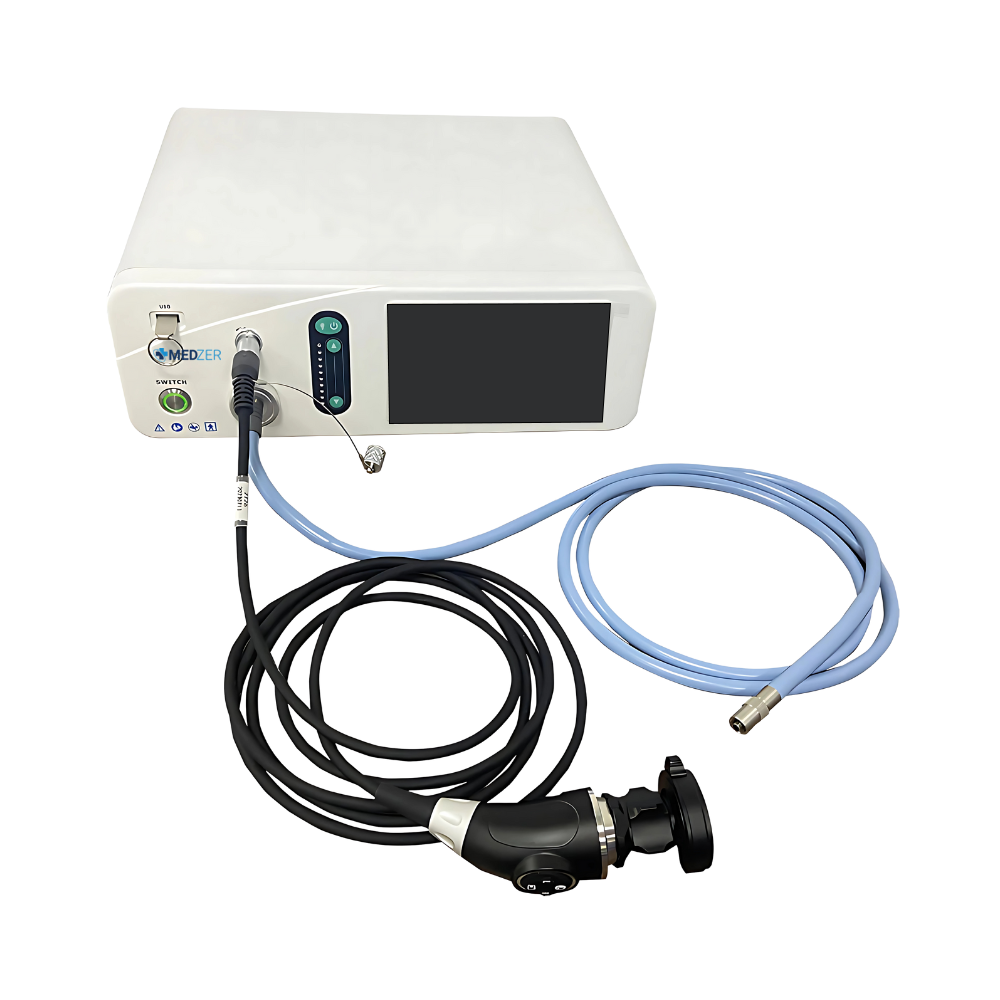

ENT Endoscope MEE-1000A is a high-quality camera system, offering 1920x1080 pixel resolution for clear and detailed imaging. It features an integrated LED light source for consistent and bright illumination, ensuring visibility in low-light areas. The system includes advanced digital signal processing technology for real-time image enhancement, reducing noise and improving color accuracy. Our ENT Endoscope has compact design, making it easy to handle during surgeries and diagnostic procedures across various medical fields.
Qty:
Specifications
| Image Sensor | ½ inch CMOS SONY |
|---|---|
| Effective Pixel | 2,130,000 pixels |
| Resolution (Video) | 1920 × 1080 |
| Scanning mode | Progressive Scanning |
| Aspect Ratio | 16:9 |
| Horizontal Resolution | 850 lines with -20% tolerance and no upper limit |
| Vertical Resolution | 850 lines with -20% tolerance and no upper limit |
| SNR (Signal-to-Noise Ratio) | 50 dB with -20% tolerance and no upper limit |
| SFR (Spatial Frequency Response) | 30% MTF 40C/(º), 50% MTF 38C/(º) with -20% tolerance and no upper limit |
| Static Image Latitude | 50m with -20% tolerance and no upper limit |
| Image Function | White balance, Gain, Brightness, Colour, Contrast, DNR etc. |
| Optional Lens Focal Length | 25 mm (Standard); 18 mm, 35 mm (Optional) |
| Waterproof Grade | IPX8 |
| Camera Cable | 2.9 m |
| Life Span | LED ≥30000 hours |
| Colour Rendering Index Ra | ≥90 |
| Colour Temperature | 5000 to 7000 K |
| Illumination Intensity | >2,000,000 Lux |
| Video Output | HD-SDI, HDMI, USB, DVI, CVBS |
| Working Temperature Range | 10℃ to 40℃ |
| Working Humidity Range | 10% to 85% RH |
| Working Atmospheric Pressure | 700hPa to 1060hPa |
| Storage Temperature Range | -10℃ to +55℃ |
| Storage Humidity Range | ≤95% |
| Storage Atmospheric Pressure | 500hPa to 1060hPa |
| Input Power | 90 VA |
| Power Supply | AC100 to 240 V |
| Dimension | 32 × 38 × 12 mm |
| Net weight | 5.8 Kg |
| Gross weight | 10 kg |
Features
7-inch touch screen
Built-in LED cold light source
Built-in USB storage
Capture and video recording available
Auto and Manual Focusing
Standard Accessories
25 mm Optical Lens × 1 Piece
Optional Accessories
18 mm Optical Lens 35 mm Optical Lens
Applications
Our ENT Endoscope is used in hospitals and clinics to provide high-resolution imaging for diagnostics and surgical procedures in endoscopy.
