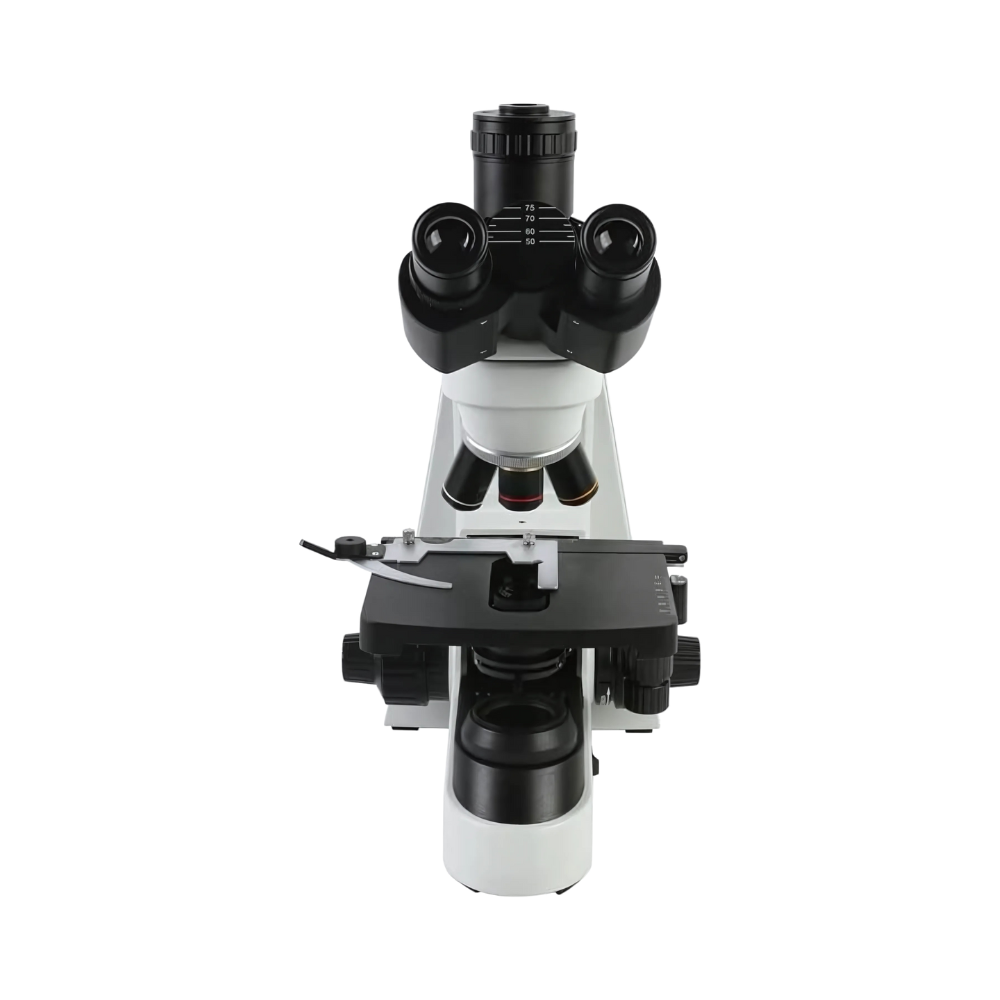

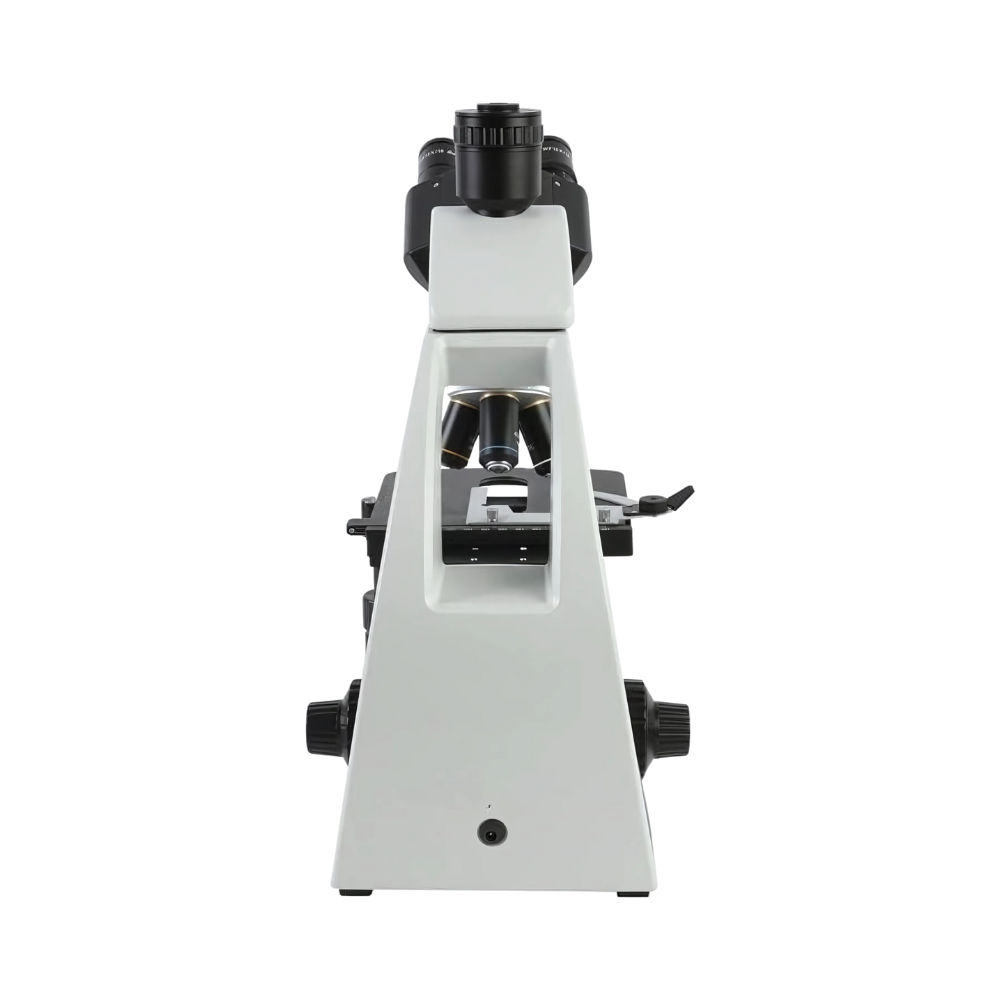

Biological Microscope BMS-1000A features a 30° inclined viewing head for ergonomic use. It also offers an adjustable interpupillary distance of 50mm to 75mm, and single dioptre adjustment. It provides achromatic objectives (4X, 10X, 40X, 100X) that offer crisp, distortion-free views at any magnification. Our device offers precision fine focusing with an impressive 0.002mm resolution and smooth coarse adjustments. Ideal tool for students, professionals, and researchers alike.
Qty:
Specifications
| Illumination | 3W LED, adjustable intensity, wide voltage (100V–240V), bulb center preset |
|---|---|
| Optical System | Infinite Color Corrected Optical System; Finite Color Corrected Optical System |
| Eyepiece | High eye point, wide field WF10x/18mm |
| Objective | Achromatic, 4X/10X/40X/100X magnifications |
| Viewing Head | 30° inclined, interpupillary distance 50mm–75mm, single diopter adjustable |
| Stage | Double-layer, 140mm × 110mm, moving range 76mm x 50mm, precision 0.1mm |
| Nosepiece | Quadruple nosepiece |
| Coaxial Focus System | Coarse range 28mm, fine precision 0.002mm, adjustable tightness, mechanical upper limit |
| Condenser | ABBE condenser, N.A. 1.25, with iris diaphragm |
| Power Supply | DC6V 2A |
Features
Applications
