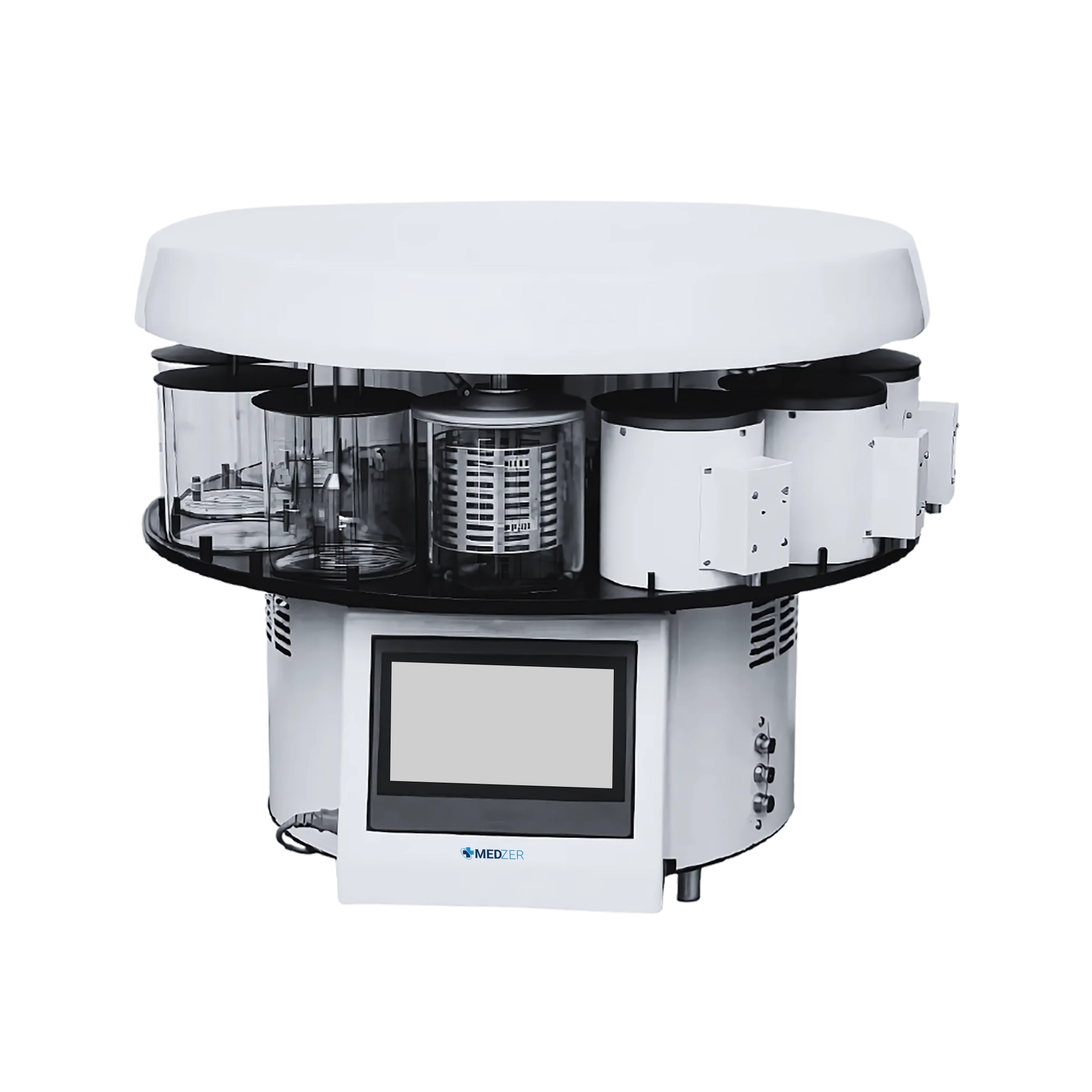

Automatic Tissue Processor ATP-1000A features a carousel-type system with 12 stations. The processor ensures optimal dehydration through an agitation mode. The wax containers maintain a precise temperature range of 45°C to 85°C. Equipped with a microcomputer control system, it provides real-time monitoring and easy operation. Our tissue processor is an ideal choice for high-performance tissue processing in modern laboratories.
Specifications
| Stations | Carousel type with 12 stations 10 reagent containers 2 wax paraffin containers |
|---|---|
| Reagent Container Capacity | 2.3 L each |
| Wax Container Capacity | 1.8 L each |
| Temperature Range | Wax container: 45°C to 85°C, with constant precision control and TEFLON coating |
| Timing | Delay timing: Up to 99 days, 99 hours, 59 minutes Jar processing time: Up to 99 hours, 59 minutes |
| Battery Backup | 8 hours for non-paraffin functions 4 hours for paraffin jars |
| Programmable Infiltration | Time per station: Up to 99 hours, 59 minutes Delay start: Up to 99 days |
| Vacuum Pressure | Maximum 0.05 MPa (0.5 bar) |
| Programs | 8 selectable and editable programs |
| Tissue Basket | Ø120 mm × 100 mm; 1 basket each holding up to 100 cassettes |
| Power Consumption | 800 W |
| Power Supply | 220 V AC ±10%, 50/60 Hz |
| Dimensions | Ø780 mm × Height: 570 mm to 690 mm |
| Packaging Dimensions (Machine) | 790 × 790 × 680 mm |
| Packaging Dimensions (Tank) | 675 × 475 × 550 mm |
| Net Weight | 80 kg |
| Gross Weight | 130 kg |
Features
Microcomputer-controlled operation
Large LCD screen for monitoring
Carousel system with reagent and wax stations
Programmable infiltration and delay start
TEFLON-coated wax containers
Battery backup for uninterrupted operation
Enhanced security with lock and password
High tissue basket capacity with dual option
Standard Accessories
| Accessories | Quantity |
| Reagent bottle | 9 pcs |
| Paraffin wax tank | 3 pcs |
| Paraffin wax tank connection line | 3 pcs |
| Tissue basket | 1 pc |
| Tissue cassette | 20 pcs |
| Hexagonal Wrench | 1 pc |
| Screwdriver | 1 pc |
| Fuse (5A) | 2 pcs |
| Power line | 1 line |
Optional Accessories
Applications
