21.5 inch Color LED monitor

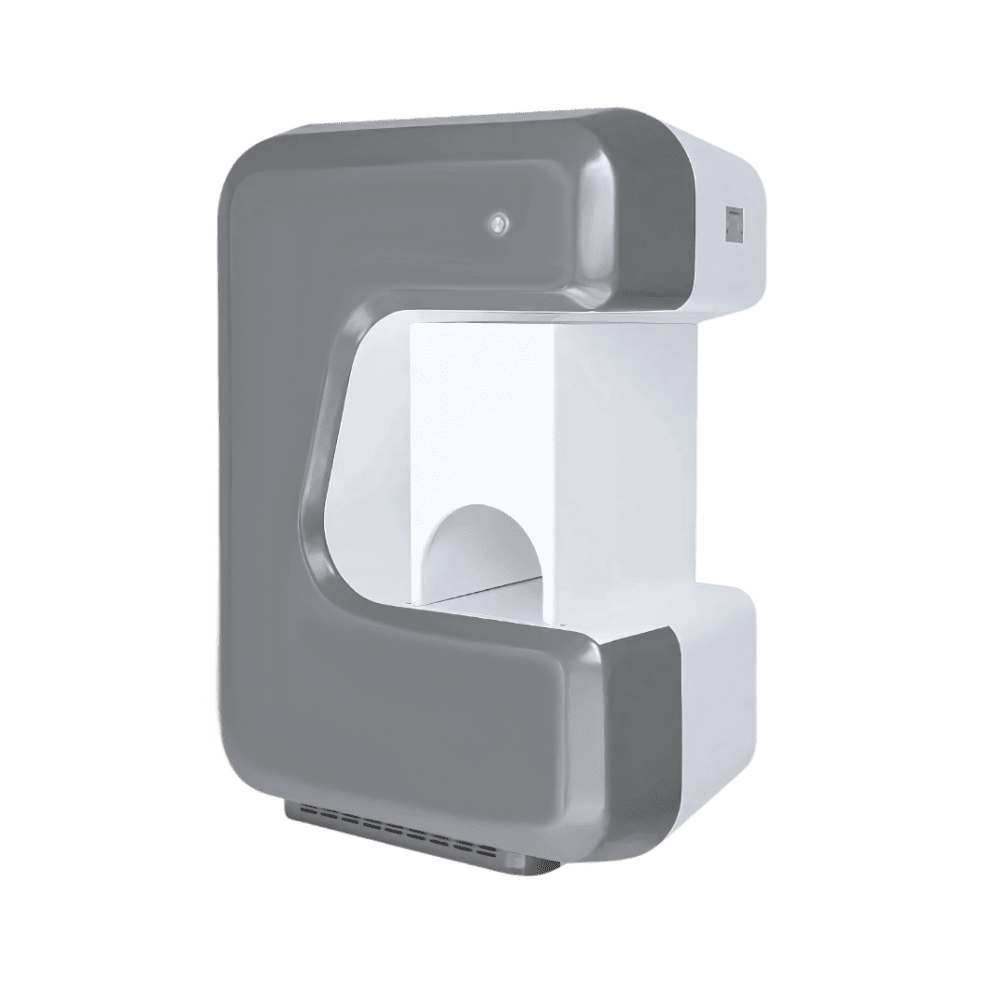

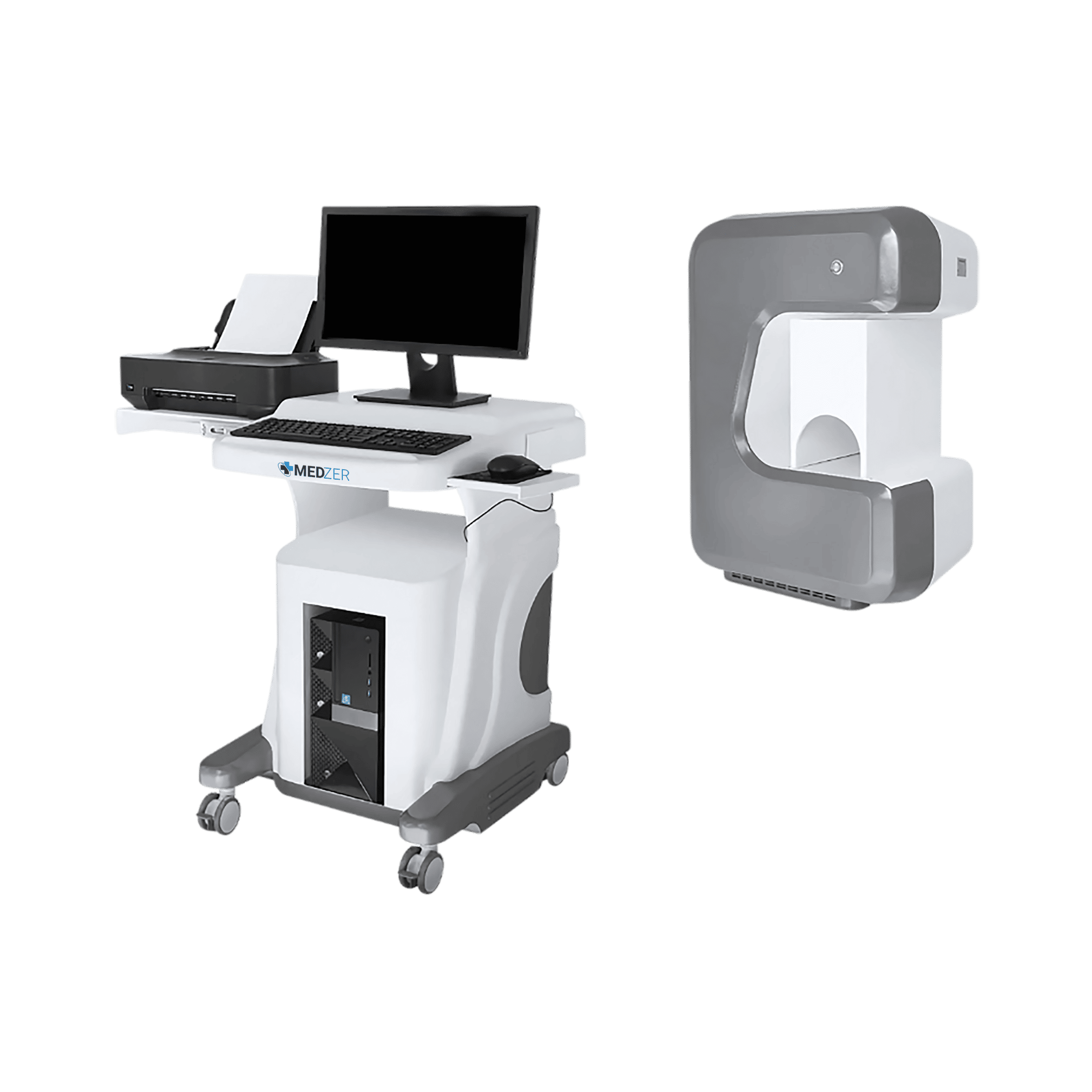

Dual Energy X-Ray Absorptiometer
Adopt the surface imaging technology,faster and better results
Automatic Bone edge determination
System Self-diagnostics
| X-ray beam | Pulse double energy X-ray with high energy ~ 85kV and low energy 55kV |
|---|---|
| X-ray detector | Imported high sensitivity digital camera |
| X-ray source | Stationary anode X-ray tube(with high frequency and small focus) |
| Scan sites | Forearm |
| Imaging way | Fan beam type,surface imaging technology |
| Imaging time | ≤5 seconds |
| Accuracy | ≤1% |
| Reproducibility | ≤1% |
| Measuring parameter | Bone Density score |
| Calculate parameter | T- Score, Z-Score |
| Operation | CPU≥3.2 GB, Memory≥4GB, HD≥500GB |
| Communication port | Color inkjet printer port |
| Environmental conditions | Working voltage: 220 V ± 10% V, 50Hz Operating temp. : 15°C - 40°C Relative humidity : 20 % ~ 80 % |
| Dimensions | 590 × 430 × 390 mm |
| Weight | 11 kgs |
21.5 inch Color LED monitor
Dual Energy X-Ray Absorptiometer
Adopt the surface imaging technology,faster and better results
Automatic Bone edge determination
System Self-diagnostics
One time Scan mode
Laser positioning technology
Adopts full closed lead protective window
Unique shape, beautiful appearance and easy to use
Fastest scanning time
Excellent reproducibility
Precision & accuracy less than 1% error
High resolution
Easy to use interlocked with Pacs and Worklist
DICOM compliance system
