Continuous Passive Motion Unit

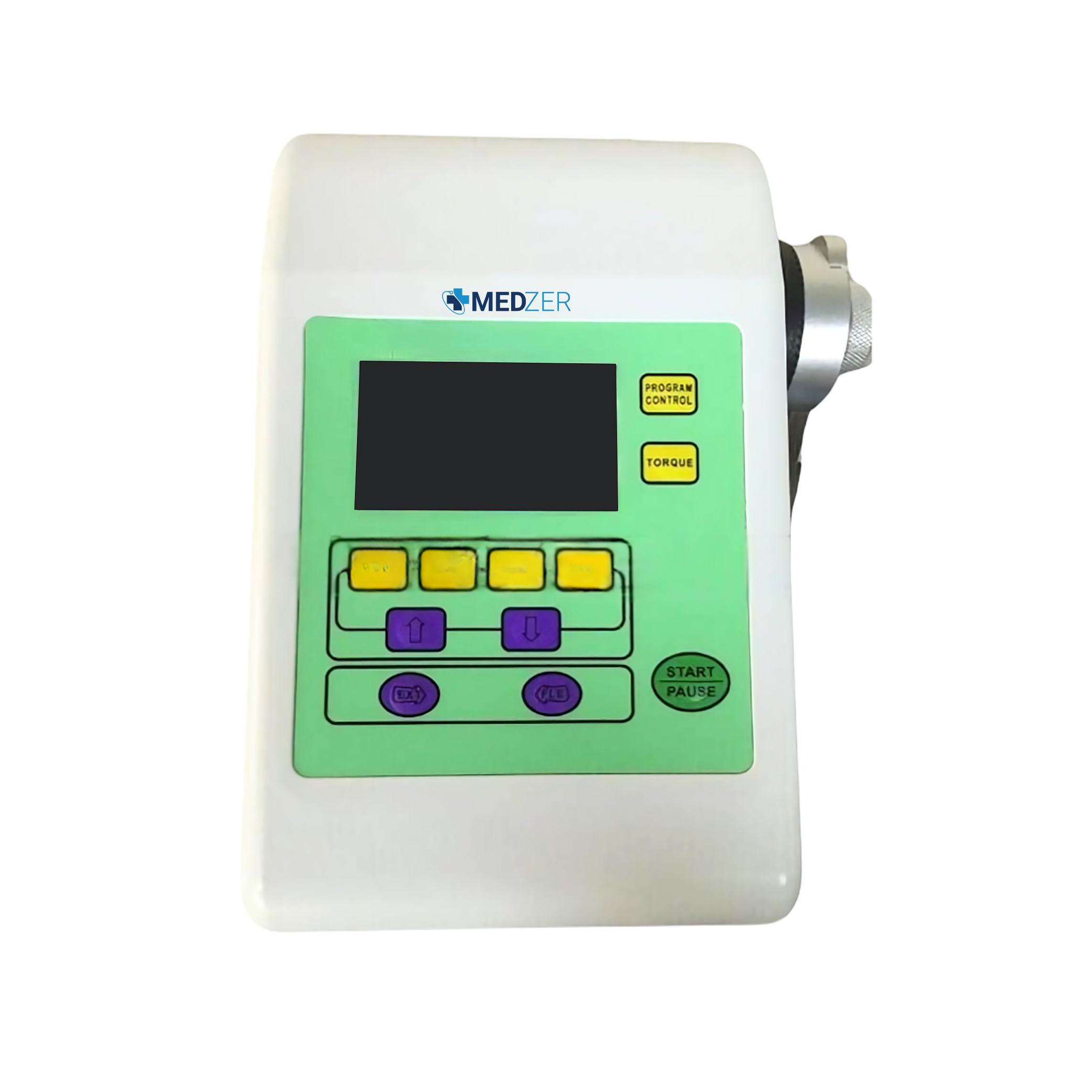

Continuous passive motion unit CPMD-1000A
Continuous passive motion unit CPMD-1000A
Angular range Angle motion range : 0° ~ 125°
Adjusting range of movable pole: ≥55 mm
Range of motion angle : 0°~125°
Flexibility: Arm : 280 mm ~ 450 mm
Range of speed : Min (0.5°/sec) ~ Max (5°/sec)
Maximum load ≥60 N
Power AC 220, 50 Hz ; < 60W
Dimension 500 × 380 × 800 mm
View Product Catalog
Continuous passive motion unit CPMD-1000B
Continuous passive motion unit CPMD-1000B
Angular range Angle motion range of knee joint: 0° ~ 125°
Angle motion speed range of hip joint: 25° ~ 100°
Angle motion speed range of ankle joint: 0° ~ 40°
Angle motion speed range: 0.5°/s ~ 2.5°/s
Angle motion range of foot plate: ≤ 40°
Maximum load ≥ 60 N
Thigh bracket range 320 mm ~ 500 mm
Crus bracket range 330 mm ~ 450 mm
View Product Catalog
Continuous passive motion unit CPMD-1000C
Continuous passive motion unit CPMD-1000C
Angular range 0° ~ 120°
Speed 9 speed levels
Total Traction 0 ~ 240 min
View Product Catalog

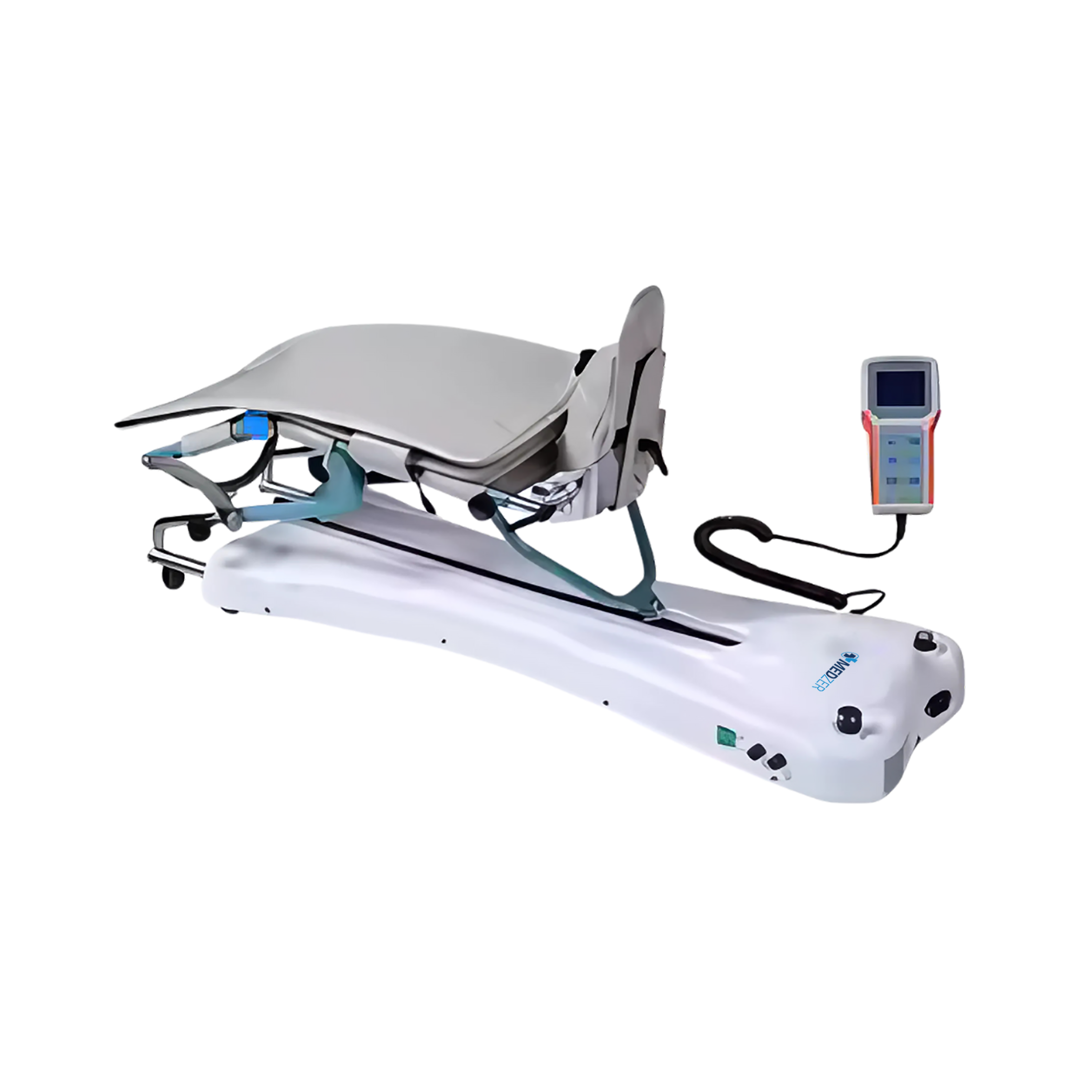

Continuous passive motion unit CPMD-1000D
Continuous passive motion unit CPMD-1000D
Angular range Knee: 10° ~ 120°
Hip: 10° ~ 110°
Speed 0°/s ~ 4°/s, step less regulation
Weight 17 kgs
View Product Catalog
Continuous passive motion unit CPMD-1000E
Continuous passive motion unit CPMD-1000E
Angular range Motion: -5° ~ 120°
Hip angle: 0° ~ 100°
Speed 0.5 °/s ~ 3.5 °/s
Total Traction 0 ~ 240 min
View Product Catalog
Continuous passive motion unit CPMD-1000F
Continuous passive motion unit CPMD-1000F
Angular range Motion: -90° ~ 170°
Speed 0 °/s ~ 8 °/s, stepless regulation
Total Traction 100mm
Weight 7 kgs
View Product Catalog
Continuous passive motion unit CPMD-1000G
Continuous passive motion unit CPMD-1000G
Angular range 0° ~ 125°
Speed 0.9°/s—3°/s
Power 220V, 50Hz
≤35 VA
View Product Catalog
